GeoVision - GV-TBL4810 - 4MP H.265 5x Zoom Super Low Lux WDR Pro IR Bullet IP Camera
Product Overview

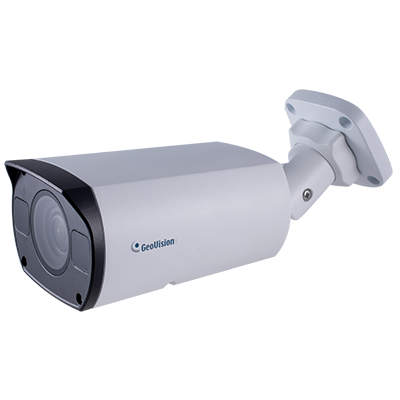

The GeoVision GV-TBL4810 is an outdoor 4MP bullet camera delivering high-resolution video (2688×1520) at 30 fps. It features a 2.7–13.5mm motorized lens with 5x optical zoom, offering a flexible field of view from 98° to 31°. Powered by AI deep-learning, this camera uses a super low-lux sensor to capture clear images in low-light conditions. It supports H.265, H.264, and MJPEG compression to optimize storage and bandwidth.
Key Configuration
- • Image sensor: 1/3" progressive scan super low lux CMOS; resolution: 2688×1520 (4MP) at 30 fps
- • Lens: 2.7–13.5mm motorized varifocal, F1.2, 5x optical zoom; horizontal FOV: 98° (wide) to 31° (tele)
- • IR distance: 3 IR LEDs, Smart IR up to 50m (165 ft); minimum illumination: color 0.002 lux, 0 lux with IR
- • Video compression: H.265, H.264, MJPEG; triple streams
- • Power: DC12V or PoE (IEEE 802.3af); max power consumption: 8.5W
Key Features
This camera features deep learning AI for perimeter protection, specifically classifying humans and vehicles for intrusion, line crossing, and area monitoring. It also supports advanced face detection for up to 40 faces, people flow counting, and crowd density monitoring. Equipped with 120dB WDR Pro, it handles high-contrast lighting while offering two-way audio and alarm I/O for integrated security. The unit supports edge storage via microSD and is ONVIF Profile G, S, and T conformant for broad compatibility. Additional features include 3D noise reduction and corridor format orientation.
Technical Context
It supports a comprehensive suite of network protocols, including 802.1x, IPv4, SNMP, and HTTPS, ensuring secure and versatile integration. Additional connectivity includes RTSP, FTP, and QoS for optimized video streaming and data management. The camera features a durable IK10 vandal-resistant metal casing and an IP67 weather-resistant rating, operating reliably from -30°C to 60°C (-22°F to 140°F).
Installation Notes
Measuring 244 × 96 × 74 mm (9.6" × 3.8" × 2.9") and weighing 1.0 kg (2.2 lb), this camera features a 3-axis adjustment for flexible positioning. It supports PoE or 12V DC power and includes a microSD slot for local edge storage. The unit is FCC, CE, and RoHS compliant and supports two-way audio via external hardware.
| Camera | |
| Image Sensor | 1/3" progressive scan super low lux CMOS |
| Picture Elements | 2688 (H) x 1520 (V) |
| Minimum Illumination - Color | 0.002 Lux (F1.2, AGC ON) |
| Minimum Illumination - IR On | 0 Lux |
| Shutter Speed | Auto / Manual (1 ~ 1/100000 sec) |
| White Balance | Automatic, Manual |
| Gain Control | Automatic, Manual |
| S/N Ratio | 56 dB |
| WDR Pro | Yes |
| Dynamic Range | 120 dB |
| Lens | |
| Megapixel | 4 MP |
| Day / Night | Yes (with removable IR-cut filter) |
| Lens Type | Motorized varifocal lens |
| Focal Length | 2.7 ~ 13.5mm |
| Maximum Aperture | F/1.2 |
| Mount | Ø 14 mm |
| Horizontal FOV | 98°~31° |
| Operation | |
| Focus | Auto / Manual |
| Zoom | 5x Optical Zoom |
| Iris | Fixed |
| IR LED Quantity | 3 IR LEDs |
| Max. IR Distance | 50 m (165 ft) |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams |
| Frame Rate | 30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 2304 x1296 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection. *Tampering alarm and audio detection are only accessible through the camera's Web interface, which can be used to trigger alerts such as e-mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°-including Corridor format). |
| Audio | |
| Audio Compression | G.711 |
| Audio Support | Two-way Audio (external microphone and speaker required) |
| Digital I/O | |
| Input | 1 Input, dry contact, NO / NC |
| Output | 1 Relay Output (1A 30V DC / 0.3A 125V AC) |
| Face Detection | |
| Environment | 100 lux |
| Detectable face angle - Tilt (Up/Down) | ≤ 10° |
| Detectable face angle - Swing (Left/Right) | ≤ 30° |
| Max. number of faces | Up to 40 |
| Min. face image pixel requirement | 80 pixels |
| Deep Learning Function | |
| AI Analytics | Intrusion, Crossing Line, Entering Area, Face Detection, Leaving Area (Human & Vehicle classification), People Flow Counting, Crow Density Monitoring |
| Video Resolution | |
| Main Stream | 2688 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720 |
| Sub Stream | 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 640 x 480, 352 x 288 |
| Third Stream | (Closed by Default) 720 x 576, 704 x 288, 640 x 360, 352 x 288 |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T) |
| Mechanical | |
| Camera Angle Adjustment - Pan | 0 ~ 360° |
| Camera Angle Adjustment - Tilt | 0 ~ 90° |
| Camera Angle Adjustment - Rotate | 0 ~ 360° |
| Connectors | |
| Power | DC Jack, PoE |
| Ethernet | RJ-45 |
| Audio | 1 in (Audio In Wire); 1 out (Audio Out Wire) *The Audio In port only supports microphones with power supply |
| Digital I/O | 4-pin terminal block pitch 3.5 mm (0.14") |
| Local Storage | Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) * UHS-II card type is not supported. |
| General | |
| Operating Temperature | -30 ~ 60°C (-22 ~ 140°F) |
| Humidity | 0 ~ 95% (no condensation) |
| Power Source | 12 V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 8.5W |
| Dimensions | 244 × 96 × 74 mm (9.6" × 3.8" × 2.9") |
| Weight | 1.0 kg (2.2 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Regulatory | FCC, CE, RoHS compliant |
| Web Interface | |
| Installation Management | Web-based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Applications | |
| Software Supported | GV-VMS (V17.4.2 / V18.2.1), GV-DVR / NVR (V8.9.1), GV-Control Center (V3.8.0), GV-Recording Server / Video Gateway (V2.0.0), GV-Edge Recording Manager Win version (V2.0.0), GV-Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.1) |
| Smart Device Access | GV-Eye for iOS and Android |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App |
