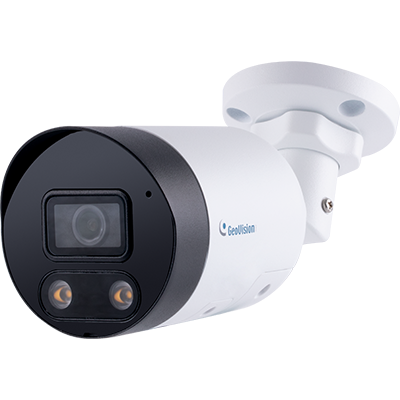

GeoVision - GV-TBL8804 - 8MP H.265 Super Low Lux WDR Pro Full Color Warm LED IR Bullet IP Camera

Product Overview

The GV-TBL8804 is an 8MP outdoor bullet camera featuring a 4mm fixed lens (86° FOV) and a super low lux sensor, delivering 4K resolution at up to 20 fps. Built for harsh environments, its IP67-rated housing includes an integrated microphone and speaker for two-way audio. For round-the-clock clarity, it features 120dB WDR Pro, 100-foot Intelligent IR, and warm LEDs for full-color night vision up to 65 feet. It also utilizes AI deep learning for human and vehicle classification, automatically triggering the built-in alarm speaker and LEDs during perimeter events.

Key Configuration

• • Image sensor: 1/2.7" progressive scan super low lux CMOS; resolution: 3840×2160 (8MP) at 20 fps; 2944×1656 at 25 fps; 2560×1440 at 25 fps; 1920×1080 at 30 fps
• • Lens: fixed 4mm, F2.0, M12 mount; horizontal FOV: 86°
• • IR distance: 1 IR LED, Intelligent IR up to 30m (100 ft); warm LEDs: 2 LEDs up to 20m (65 ft); minimum illumination: color 0.01 lux, 0 lux with IR
• • Video compression: H.265, H.264, MJPEG; triple streams
• • Power: DC12V or PoE (IEEE 802.3af); max power consumption: 10.5W

Key Features

This camera utilizes Deep Learning AI to classify humans and vehicles, triggering a built-in alarm speaker and warm white LEDs during intrusion, line crossing, face detection, and crowd monitoring events. It features 120dB WDR Pro, digital defog, corridor format rotation, and integrated two-way audio. For storage and compatibility, it includes a microSD slot (UHS-I), ONVIF Profiles S, G, and T compliance, and standard analytics for automated email and FTP alerts.

Technical Context

Features an adjustable electronic shutter speed ranging from 1 to 1/100,000 sec (Auto/Manual) and delivers an ultra-clean video signal with a 56 dB S/N ratio. It supports an extensive suite of network protocols, including 802.1x, HTTPS, IPv4, RTSP, and SNMP to ensure secure, seamless integration into enterprise IT infrastructures, and carries FCC, CE, and RoHS certifications.

Installation Notes

Measuring 187 × 71 × 71 mm and weighing 0.41 kg, this IP67-rated weather-resistant camera operates from -30°C to 60°C. It features a 3-axis bracket (360° pan, 90° tilt, 360° rotation) for flexible positioning, supports DC12V or PoE power, and includes a microSD slot for edge storage alongside a built-in microphone and speaker for two-way audio.
