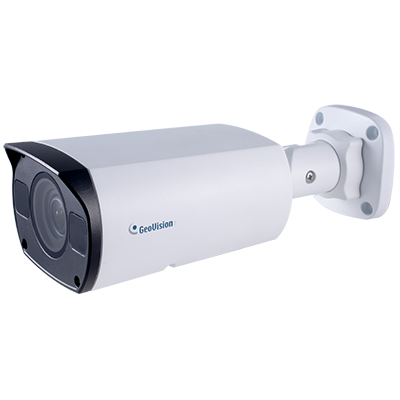

GeoVision - GV-TBL8810 - AI 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Bullet IP Camera
Part number:
GV-TBL8810
Price:

AI Deep-Learning IP Camera

The Bullet IP Camera is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-TBL8810 adheres to IK10 and P67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI Perimeter Protection, real time alert, events playback and more.



Features:

  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • 1/2.8" progressive scan low lux CMOS sensor
  • Min. illumination at 0.003 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Wide Dynamic Range Pro (WDR Pro)
  • Up to 20 fps at 3840 x 2160, 30 fps at 3072 x 1728 / 2560 x 1440 / 1920 x 1080
  • Motorized varifocal lens for remote focus / zoom adjustment
  • Intelligent IR
  • IR distance up to 50 m (165 ft)
  • Day and Night function (with removable IR-cut filter)
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
  • Two-way audio
  • DC 12V / PoE (IEEE 802.3af)
  • ONVIF (Profile G, S, T) conformant



Note:

  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
Camera
Image Sensor 1/2.8" progressive scan low lux CMOS
Picture Elements 3840 (H) x 2160 (V)
Minimum Illumination Color 0.003 Lux (F1.6, AGC ON)
IR On 0 Lux
Shutter Speed Auto / Manual (1/12 ~ 1/100000 sec)
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio 56 dB
WDR Pro Yes
Dynamic Range Up to 120 dB
Lens
Megapixel 8 MP
Day / Night Yes (with removable IR-cut filter)
Lens Type Motorized varifocal lens
Focal Length 2.8 ~ 12 mm
Maximum Aperture F/1.6
Mount Ø 14 mm
Horizontal FOV 31 ~ 96°
Operation Focus Auto / Manual
Zoom 4.3x Optical Zoom
Iris Fixed
IR LED Quantity 3 IR LEDs
Max. IR Distance 50 m (165 ft)
