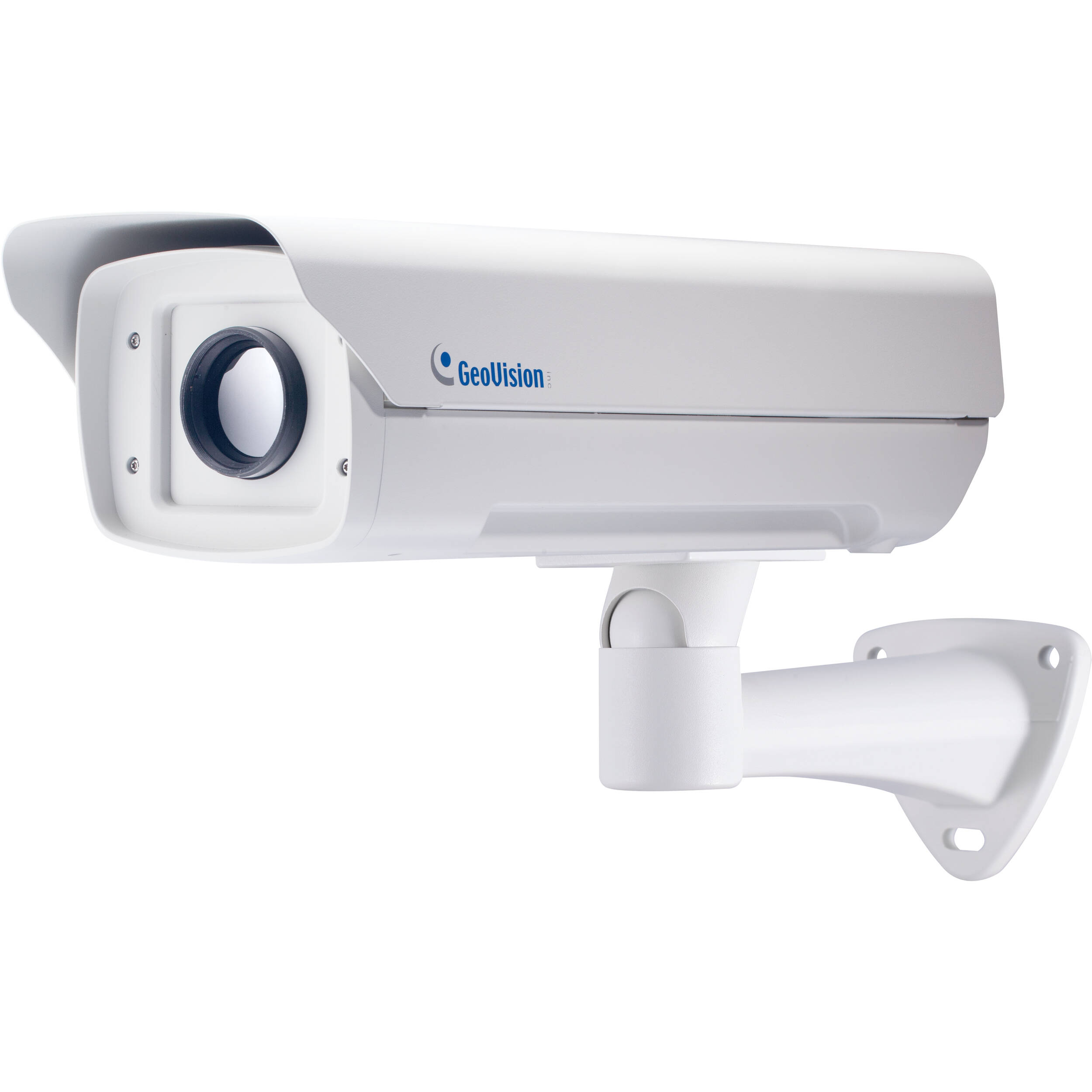

GeoVision - GV-TM0100 - 2x, Thermal IP Camera, H.264
GV-TM0100 is an outdoor thermal IP camera capable of producing black-and-white images based on the detected temperature of the people, vehicles and environment. Unlike traditional cameras that rely on visible light, GV-TM0100 is unaffected by the lighting conditions and allows you to detect movements even in complete darkness and backlit scenes.
Ideal for border surveillance and sparsely populated areas, GV-TM0100 can detect human-sized targets at a distance of 1450 m (4757 ft) and vehicles at 1850 m (6070 ft).
GV-TM0100 can be easily configured through its Web interface and you can record and play back recordings using the GV-VMS software included in the standard package.
Features:
- CIF Uncooled FPA micro bolometer, 25 um pixel size User's Manual
- Thermal sensitivity: ≤100 mK at f/1,300K
- Spectral range: 8 ~ 14 um
- Single stream from H.264 or MJPEG
- Up to 25 fps at 352 × 288
- 2x digital zoom
- Up to 1450 m (4757 ft) detection range for human targets and 1850 m (6070 ft) for vehicles
- Up to 480 m (1575 ft) recognition range for human targets and 920 m (3018 ft) for vehicles
- Ingress protection (IP66)
- DC 12V / PoE (IEEE 802.3af)
- Motion detection
- Privacy mask
- Text overlay
- IP address filtering
- CE, FCC, RCM, RoHS compliant
- Support for iPhone, iPad, Android & 3GPP
- 28 languages on Web interface
| Camera | ||
| Image Sensor | Uncooled FPA micro bolometer | |
| Picture Elements | 352 (H) x 288 (V) | |
| Pixel Size | 25 um | |
| Thermal Sensitivity | ≤100 mK at f/1,300K | |
| Spectral Range | 8 ~ 14 um | |
| Gain Control | Auto, Manual | |
| Optics Lens | ||
| Focal Length | 40 mm | |
| Horizontal FOV | 13.7° | |
| Operation | Focus | Auto / Manual |
| Zoom | 2x (Digital) | |
| Iris | N/A | |
| Operation | ||
| Video Compression | H.264, MJPEG | |
| Video Stream | Single stream from H.264 or MJPEG | |
| Frame Rate | 25 fps at 352 x 288 (60/50 Hz) * The frame rate and performance may vary depending on the number of connections and data bit‐rates (different scenes). | |
| Image Setting | Brightness, Contrast | |
| Noise Reduction | Yes | |
| Audio Support | No | |
| Sensor Input | No | |
| Alarm Output | No | |
| Video Resolution | ||
| Main Stream | 5 : 4 | 352 x 288 |
| Network | ||
| Interface | 10/100 Ethernet | |
| Protocol | DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, NTP, ONVIF (Profile S), QoS (DSCP), RTCP, RTSP, SNMP, SMTP, TCP/IP, UDP, UPnP, 3GPP/ISMA | |
| Observation Range | ||
Detection (2 pixels on target) | Human (1.8 x 0.5 m) | 1450 m (4757 ft) |
Car (2.3 x 2.3 m) | 1850 m (6070 ft) | |
Recognition (4 pixels on target) | Human (1.8 x 0.5 m) | 480 m (1575 ft) |
Recognition (6 pixels on target) | Car (2.3 x 2.3 m) | 920 m (3018 ft) |
| Mechanical | ||
| Connectors | Power | 2‐pin terminal block (DC 12V, 1.25A), PoE |
| Ethernet | Ethernet (10/100 Base‐T), RJ‐45 cable | |
| General | ||
| Environment Temperature | ‐20°C ~ 40 °C (‐4 °F ~ 104 °F) | |
| Humidity | 20% to 90% (no condensation) | |
| Power Source | 12V DC / PoE (IEEE 802.3af) | |
| Max. Power Consumption | 10 W | |
| Dimensions | 485.5 x 249.48 x 156.99 mm (19.11” x 9.82” x 6.18”) | |
| Weight (with rack) | 2.75 kg (6.06 lb) | |
| Ingress Protection | IP66 | |
| Regulatory | CE, FCC, RCM, RoHS compliant | |
| Power over Ethernet | ||
| PoE Standard | PoE (IEEE 802.3af Power over Ethernet / PD) | |
| PoE Power Supply Type | End‐span | |
| PoE Power Output | Per Port 48V DC, 350 mA, Max. 15.4 watts | |
| Web Interface | ||
| Installation Management | Web‐based configuration | |
| Maintenance | Firmware upgrade through Web Browser or Utility | |
| Access from Web Browser | Camera Live View, Video Recording, Bandwidth Control, Image Snapshot, Picture in Picture, Picture and Picture, Privacy Mask, Tampering Alarm, Text Overlay, Digital PTZ | |
