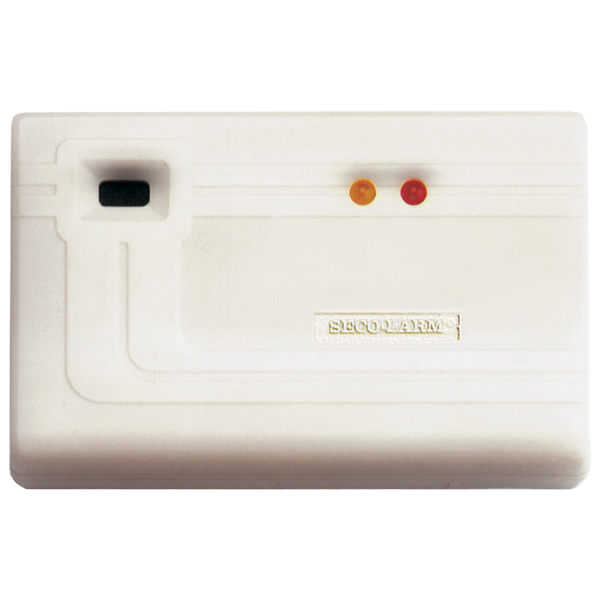

SECO-LARM - ENFORCER 190 - Glass-Break Detector, Audio. Compact, with built-in Tamper Switch, Red Trigger LED
Part number:
ENFORCER 190
Price:

Glass Break / Audio Discriminator



Features:

  • Eliminates the need for unsightly individual detectors on each pane of glass
  • Detects the high-frequency sound of glass breaking
  • Patented yellow turbulence LED allows quick and simple sensitivity adjustment without having to use a test meter
  • Red LED indicates whether the sensor has been triggered and is sending a signal to the alarm
  • Yellow LED Indicates whether environmental noise is too high, reducing the likelihood of false alarms
  • Wide detection radius:
    – 25ft radius if ceiling-mounted
    – 34ft radius if wall mounted
  • Equipped with an N.C. tamper circuit to protect against opening or breaking the case
  • Installs without RF-shielded cable
  • Compact size and attractive appearance allows for discreet installations anywhere
Operating Voltage12VDC (7.5~15 VDC)
Current DrawStandby- 5mA, Triggered- 80mA
Detector Output2A Dry relay NO/NC/COM
Tamper OutputN.C. Contact
Status LEDsYellow- Environmental noise level, Red- Trigger signal sent to alarm
Operating Temperature14º ~122º F (-10º~50º C)
MaterialABS Plastic
Dimensions4-1/2″ x 2-3/4″ x 1-1/8″ (115 x 70 x 27 mm)
Weight3.35-oz (95g)
