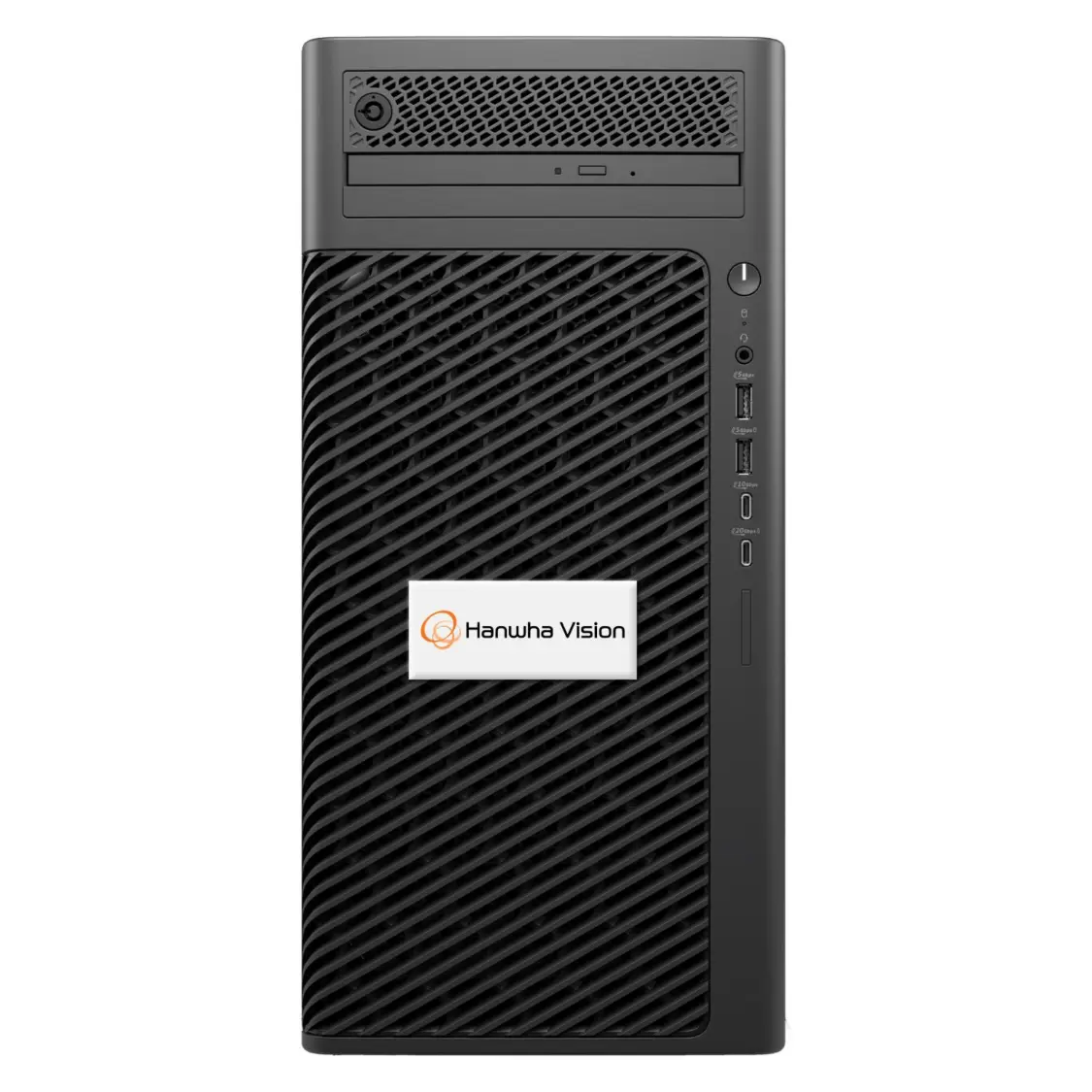

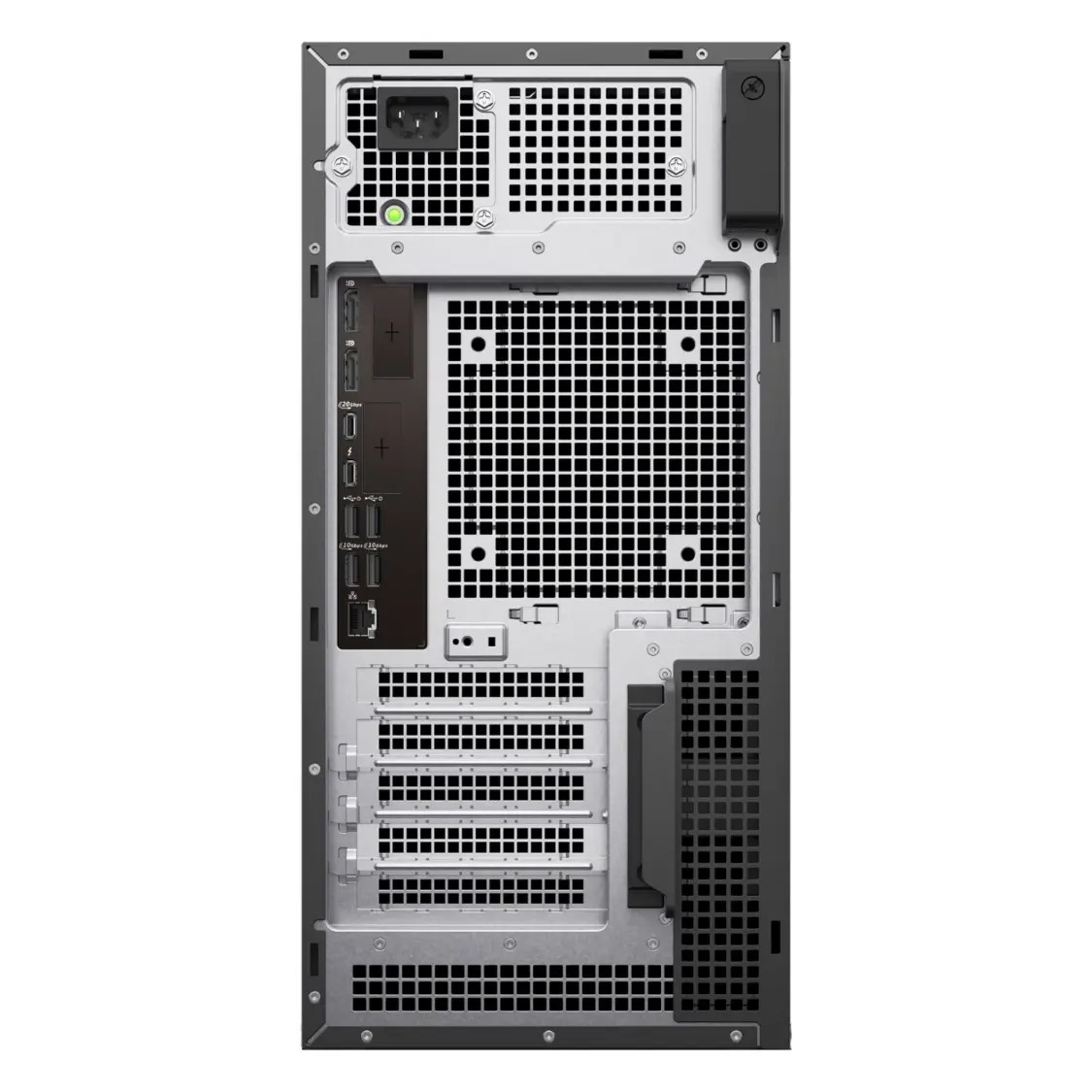

Hanwha - BRT-X641W1-12TB - BLAZE Recording Server (Windows IoT OS)
- • Mini-Tower (Desktop).
- • Windows 11 IoT Enterprise LTSC 2024.
- • Supports up to 470 Mbps recording bandwidth.
- • Supports up to 36TB of raw storage (typically configured as 4TB, 8TB, 12TB, 16TB, 24TB, or 36TB).
- • Intel Core Ultra 5.
- • 16GB RAM.
- • 512GB SSD dedicated to the OS drive.
- • 1x1 GbE NIC; includes 2 DisplayPort outputs and a DisplayPort to HDMI adapter.
| System | |
|---|---|
| Product Name | Mini-tower form factor BLAZE Network Video Recorder |
| Pre-installed Software | BLAZE (pre-installed) |
| Raw Storage Capacity | 4TB, 8TB, 12TB, 16TB, 24TB, or 36TB raw |
| Recording Bandwidth | 470 Mbps recording B/W |
| HDD Bays (3.5") | (1) 3.5" HDD |
| Processor | Intel Core Ultra 5 |
| RAM | 16GB RAM |
| OS Drive | 512 GB SSD OS Drive |
| Operating System | Windows 11 IoT Enterprise LTSC 2024 |
| Video Outputs | (2) DisplayPort output, (1) DisplayPort to HDMI adapter included |
| Network Interfaces | 1x1 GbE NIC, 1x5 GbE NIC |
| Power Supply | Single 1500W power supply |
| Keyboard & Mouse | Keyboard and mouse included |
| Storage & Performance | |
| Available Raw Capacities | 4TB, 8TB, 12TB, 16TB, 24TB, or 36TB |
| Recording Bandwidth | 470 Mbps |
| Number of HDD Bays | 1 bay (3.5") |
| OS Drive Configuration | 512 GB SSD |
| Processor & Memory | |
| CPU | Intel Core Ultra 5 |
| Memory Capacity | 16GB RAM |
| Graphics & Display | |
| Display Outputs | (2) DisplayPort output, (1) DisplayPort to HDMI adapter included |
| Network & Management | |
| Ethernet Interfaces | 1x1 GbE NIC, 1x5 GbE NIC |
| Power & Mechanical | |
| Power Supply Configuration | Single 1500W power supply |
| Form Factor | Mini-tower |
| Included Accessories | Keyboard, mouse, DisplayPort to HDMI adapter |
| Chassis Type | Network Video Recorder (NVR) mini-tower |
| Operating System & Software | |
| OS Platform | Windows 11 IoT Enterprise LTSC 2024 |
| VMS Software | BLAZE pre-installed |
The Hanwha Vision BRT-X641W1 is a mini-tower BLAZE Network Video Recorder pre-configured with BLAZE VMS on a Windows 11 IoT Enterprise LTSC 2024 operating system, available with raw storage options of 4TB, 8TB, 12TB, 16TB, 24TB, or 36TB. It delivers a recording bandwidth of 470 Mbps and features a single 3.5" HDD bay, an Intel Core Ultra 5 processor, 16GB of RAM, and a 512GB SSD for the operating system. Network connectivity includes one 1GbE NIC and one 5GbE NIC. The system includes two DisplayPort outputs with one DisplayPort to HDMI adapter included. A single 1500W power supply provides power, and the unit comes with a keyboard and mouse. This compact tower server is designed for small to medium deployments requiring flexible storage options and high bandwidth performance in a space-saving form factor.
