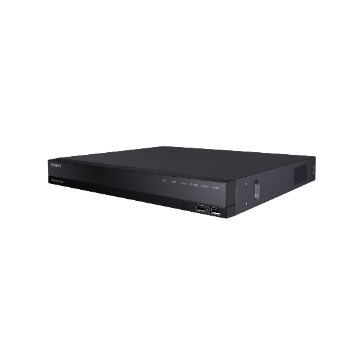

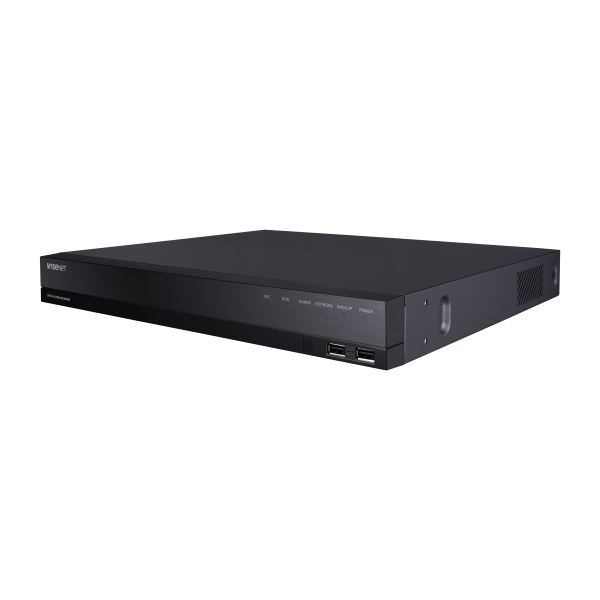

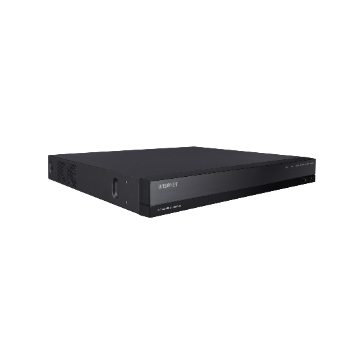

Hanwha - HRX-1620 - 16CH Pentabrid DVR
Part number:
HRX-1620
Price:
- • 16 Channel 8MP AHD DVR
- • AHD, TVI, CVI (Maximum 8MP), analog camera, IP input
- • 18 channel total recording capability (Network / Network + analog)
- • 4K HDMI / VGA / spot video output
- • 4 Channel audio input / 1 Channel audio output
- • 16 alarm input / 4 relay output
- • Up to 2 internal HDDs (Maximum 6TB teach)
- • Coaxial cable (Pelco-C, ACP)
- • Smartphone support with QR code
| Analog Camera Inputs | 16CH(1Vp-p 75ohm, BNC) |
| Analog Camera Signal Type | AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL) |
| Network Camera Inputs | Max. 18CH |
| Network Camera Resolution | 8MP ~ CIF |
| Network Camera Protocols | SUNAPI(Wisenet), ONVIF |
| Local Display | 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 1920x1080, 1280x720 (1920x1080, Clone mode) VGA: 1920x1080, 1280x720 |
| Live Resolution | [Analog Camera(NTSC/PAL)] - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH [Network Camera] - Typ. 2MP(480fps) |
| Compression | H.265, H.264, MJPEG |
| Record Rate (Analog) | Analog Camera(NTSC/PAL) (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH (Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera. |
| Recording Bandwidth | Max. 70Mbps (Analog Camera only) ~ 51Mbps (Network Camera only) |
| Record Resolution | 8MP ~ CIF |
| Record Mode | Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track |
| Event Trigger | Alarm Input Analog Camera : Video Loss, Motion Detection, Tampering Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual-line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event |
| Event Action | E-mail, PTZ preset, Alarm out, Buzzer, Monitor out |
| Playback Bandwidth | Max. 32Mbps (18CH simultaneously) |
| Search & Play Users | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous Playback | 18CH(Local Monitor) 4Ch (CMS, Wisenet Mobile), 1Ch(Web) |
| Fisheye Dewarping | WEB / CMS |
| Supported HDD | Up to 6TB |
| HDD Slot | SATA 2ea(Max 12TB) |
| File Backup | BU, EXE(Include Player), AVI(Webviewer only) |
| Backup Function | Max. 10 CH play, Date-time/title display |
| PTZ Control | Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller |
| Smart Phone Support | iOS, Android |
| Smart Phone Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) |
| Smart Phone Control | Live(16ch) : Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push |
| Max. Remote Users (Smart Phone) | Search(3), Live Unicast(10) |
| Redundancy (ARB) | Support |
| Easy Configuration | Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code) |
| Coaxial Control | CVBS(Pelco-C)/AHD/CVI/TVI |

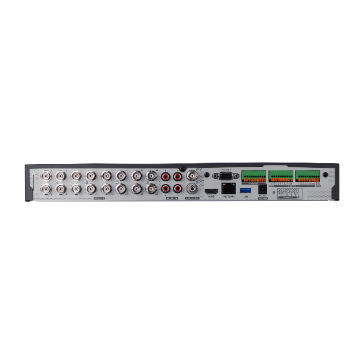

| HDMI | 1EA |
| VGA | 1EA |
| BNC | 16CH In / 1CH Out(Spot Output) |
| Audio Output | Out(1EA, RCA, Line) |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Alarm | In 16EA, Out 4EA - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM) |
| USB | 3EA(Front USB2.0 2a , Rear USB 3.0 1ea) |
| Serial (Protocols) | RS-485 (Samsung-T/Pelco-D/Pelco-p) * for PTZ |
| Power Inlet | 1EA DC Input Jack |
| System Control | Mouse, IR Remocon, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000) |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai |
| Operating Temperature | 0°C to +40°C(+32℉ to +104℉) |
| Operating Humidity | 20% ~ 85% RH |
| Certification | UL, CE, FCC, KC |
| Power Input | DC12V |
| Power Consumption | Max. 41W (6T HDD 2ea) |
| Color / Material | Black / Metal |
| Dimension (WxHxD) | 370.0 x 44.0 x 320mm (14.57" x 1.73" x 12.6") |
| Weight | Approx. 2.6Kg (5.8 lb, 4TB HDD 1ea) |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
| DDNS | Wisenet DDNS |
| Transmission Speed | Analog Camera(NTSC/PAL) (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH, 720p 30/25fps/CH, SD 30/25fps/CH (Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera. |
| Transmission Bandwidth | Max. 30Mbps |
| Audio Input/Output | 4 Line in / 1 Line out |
| Audio Compression | G.711 (N/W Cam G.711, 726) |
| Audio Communication | 2-Way |
| Max Remote Users (Network) | Search(3), Live Unicast(10), Multicast(20) |
| Security | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Techwin Root CA) |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS |
Name
Description
Size
Downloads
File
A&E Specifications
0.1mb
File
Specifications
1mb
The Wisenet HD+ Pentabrid DVR supports AHD (up to 8 MP), TVI (up to 8 MP), CVI (up to 5 MP), CVBS and IP (up to 8 MP) and has 16 analogue channels and two IP camera channels. It is possible to easily migrate analogue channels with recording of up to 18 IP channels. Other features include 1080p recording at 30 fps per channel (frame rate varies at higher resolutions), triple codec (H.265, H.264 and MJPEG), 70 Mbps throughput for analogue and 51 Mbps for IP cameras, two internal HDDs, four channel audio input/one channel audio output, 16 alarm inputs and four relay outputs, coaxial control, HDMI/VGA video output and one spot monitor output.
