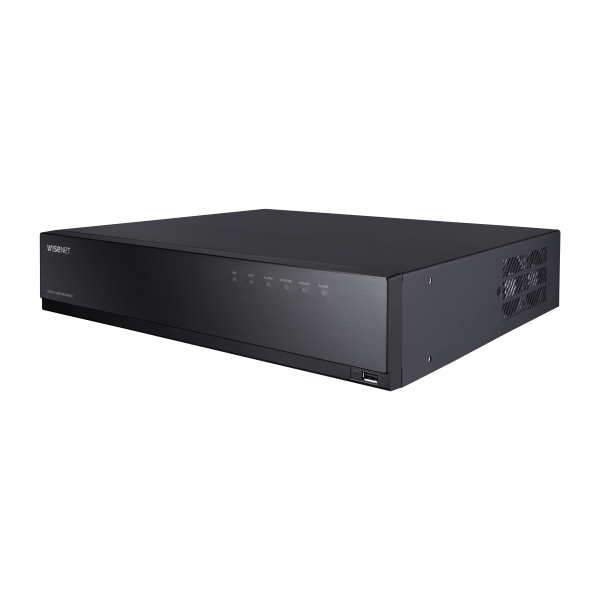

Hanwha - HRX-1621-24TB - 18 Channel AHD, TVI, CVI, CVBS, IP Pentabrid Recorder with 24TB HDD
Part number:
HRX-1621-24TB
Price:
The Wisenet HD+ Pentabrid DVR features support for AHD (up to 8MP), TVI (up to 8MP), CVI (up to 5MP), CVBS and IP (up to 8MP), 16 Channel analog + 2 IP camera channels. Easily migrate analog channels with recording up to 18 IP channels. Other features include recording 1080p @ 30fps/channel (frame rate at higher resolutions will vary), triple codec H.265/H.264/MJPEG, 70Mbps throughput on analog and 51mbps throughput on IP cameras), 8 internal HDD, 16 Channel audio input / 1 Channel audio output, 16 alarm input and 4 relay output, coaxial control, HDMI/VGA video output, 1 X spot monitor output, QR code
Key Features:
- 16 Channel 8MP AHD DVR
- AHD, TVI, CVI (Maximum 8MP), analog camera, & IP input
- 18 channel total recording capability (Network / Network + analog)
- 4K HDMI / VGA / spot video output
- 16 Channel audio input / 1 Channel audio output
- 16 alarm input / 4 relay output
- Up to 8 internal HDDs (Maximum 6TB teach)
- Coaxial cable (Pelco-C, ACP)
- Smartphone support with QR code
| Display | ||
|---|---|---|
| Analog camera | ||
| Inputs | 16CH(1Vp-p 75ohm, BNC) | |
| Signal Type | AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL) |
|
| Network camera | ||
| Inputs | Max. 18CH | |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI(Wisenet), ONVIF | |
| Live | ||
| Local Display | 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 1920x1080, 1280x720 (1920x1080, Clone mode) VGA: 1920x1080, 1280x720 |
|
| Resolution | [Analog Camera(NTSC/PAL)] - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH [Network Camera] - Typ. 2MP(480fps) |
|
| Performance | ||
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Record Rate(Analog) | Analog Camera(NTSC/PAL) (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH (Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera. |
|
| Recording Bandwidth | Max. 70Mbps (Analog Camera only) ~ 51Mbps (Network Camera only) | |
| Resolution | 8MP ~ CIF | |
| Mode | Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track | |
| Event Trigger | Alarm Input Analog Camera : Video Loss, Motion Detection,Tampering Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event |
|
| Event Action | E-mail, PTZ preset, Alarm out, Buzzer, Monitor out | |
| Search & Play | ||
| Playback Bandwidth | Max. 32Mbps (18CH simultaneously) | |
| User | Max. 4 users (Set 1, Remote 3) | |
| Simultaneous playback | 18CH(Local Monitor) 4Ch (CMS, Wisenet Mobile), 1Ch(Web) |
|
| Fisheye Dewarping | WEB / CMS | |
| Storage | ||
| Supported HDD | Up to 6TB | |
| HDD Slot | SATA 8ea(Max 48TB) | |
| Backup | ||
| File backup | BU, EXE(Include Player), AVI(Webviewer only) | |
| Function | Max. 16 CH play, Date-time/title display | |
| Functions | ||
| PTZ | ||
| Control | Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live(16ch) : Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push |
|
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| ARB | Support | |
| Easy configuration | Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code) | |
| Coaxial Control | CVBS(Pelco-C)/AHD/CVI/TVI | |

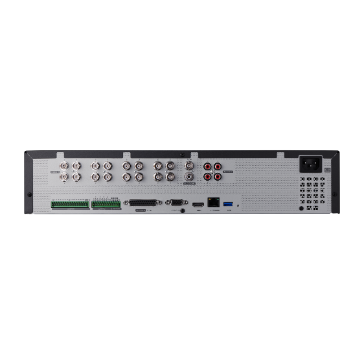

| Interface | ||
| HDMI | 1EA | |
| VGA | 1EA | |
| BNC | 16CH In / 1CH Out(Spot Output) | |
| Audio | Out(1EA, RCA, Line) | |
| Ethernet | RJ-45(10/100/1000BASE-T) | |
| Alarm | In 16EA, Out 4EA - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM) |
|
| USB | 2EA(Front USB2.0, Rear USB 3.0)) | |
| Serial(Protocols) | RS-485/422 (Samsung-T/Pelco-D/Pelco-p) * for PTZ | |
| Power inlet | 1EA AC | |
| System | ||
| System Control | Mouse, IR Remocon, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Certification | UL, CE, FCC, KC | |
| Electrical | ||
| Power Input | 100~240 VAC±10%, 50/60 Hz | |
| Power Consumption | Max. 180W (6T HDD 8ea) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440 x 88 x 384.8mm(17.32” x 3.46” x 15.15”) | |
| Weight | Approx. 5.6Kg (12.4 lb, 4TB HDD 1ea) | |
| Network | ||
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Wisenet DDNS | |
| Transmission speed | Analog Camera(NTSC/PAL) (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH, 720p 30/25fps/CH, SD 30/25fps/CH (Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera. |
|
| Transmission Bandwidth | Max. 30Mbps | |
| Audio | ||
| Input/Output | 16 Lline in (Built in 4 Line, Option : Audio Extension Cable) / 1Line line out | |
| Compression | G.711 (N/W Cam G.711, 726) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Techwin Root CA) |
|
| Viewer Software | SSM, Webviewer, SmartViewer, Wisenet Mobile Viewer Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS |
|
