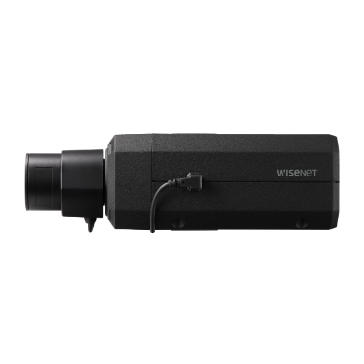

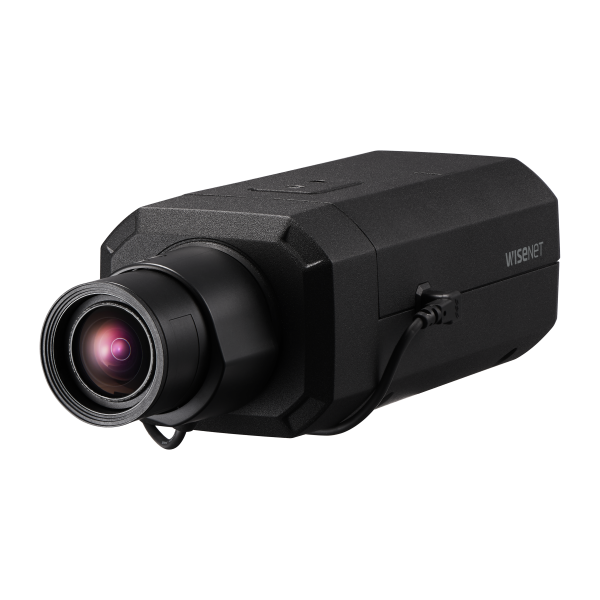

Hanwha - PNB-A9001 - 4K Box AI camera
Part number:
PNB-A9001
Price:
Wisenet P series AI Network Box Camera features 4K resolution @30fps. Key features include WDR (120dB), Simple focus, H.265/H.264/MJPEG, WiseStreamⅡ compression technology, USB port for easy installation, Advanced video analytics and sound classification, True D/N, Dual SD card, Hallway view, DIS using a Gyro sensor. Video Analytics based on AI, Object detection and classification(Person, Face, Vehicle, License Plate), Attribute, BestShot, Compatible with Wisenet Retail Insight v2.0 for Business Intelligence, Age/gender-based People counting, Heatmap, Queue management, POE+/12VDC.
Features:
- 4K / 8 megapixel (3840 x 2160) resolution
- 0.03Lux@F1.2 (Color), 0.003Lux@F1.2 (B/W)
- 30fps@all resolutions (H.265/H.264)
- Video Analytics based on AI
- Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot
- Compatible with Wisenet Retail Insight v2.0 for Business Intelligence, Age/gender based People counting, Heatmap, Queue management
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (120dB), P-Iris
- Digital image stabilization with built-in Gyro sensor
- Loitering, directional detection, audio detection, digital auto tracking, sound classification, tampering
- Motion detection, Handover
- Dual SD/SDHC/SDXC memory slots (Maximum total capacity 512GB)
- Hallway view, WiseStream II support
- LDC support (Lens Distortion Correction)
- PoE+ / 12V DC, Bi-directional audio support
| Video | |
| Imaging Device | 1/1.8" 8MP CMOS |
| Min. Illumination | Color: 0.03Lux(F1.2, 1/30sec) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| USB: Micro USB Type B, 1280x720 for installation | |
| Lens |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris, Manual, I-CS |
| Mount Type | C mount, CS mount |
| Operational |
| Camera Title | Off / On (Up to 85 characters) |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 6ea, rectangle zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | - Classified object type : Person/Face/Vehicle/License plate with attributes, BestShot per object |
| - Analytics events based on AI engine : Object detection, Directional detection, Digital auto tracking, Enter/Exit, Loitering, Virtual line | |
| - Analytics events : Defocus detection, Motion detection, Appear/Disappear, Tampering, Audio detection, Sound classification, Shock detection | |
| Business Intelligence | People counting, Queue management, Heatmap based on AI engine |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 1ea / Output 1ea / DC 12V Power(Max. 50mA) 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| Handover | |
| Audio In | Selectable(mic in/line in/Built in MIC) |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(20 users) / Multicast |
| Multiple streaming(Up to 3 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Device Certificate(Hanwha Techwin Root CA) | |
| Application Programming Interface | ONVIF Profile S/G/T |
| SUNAPI(HTTP API) | |
| Wisenet open platform | |
| Environmental & Electrical |
| Operating Temperature / Humidity | -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Mechanical |
| Color / Material | Body: Black / Aluminum |
| Product dimensions / weight | 81x67x165mm(3.19x2.64x6.48"), Weight : 0.88kg(1.94lb) |
