• Maximum 8MP resolution (1/1.2” sensor)
• 5.9~13.3mm(2.25x) motorized varifocal
• Analytics events based on AI engine : Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion), Slip&Fall detection, Face mask detection, Social distancing detection
• Business intelligence based on AI engine : People/Vehicle/Crowd counting, Queue management, Heatmap
• Support BestShot and full attributes
• Support Dynamic Privacy Masking
• AI-based Image enhancement
• extremeWDR, WiseNRⅡ(Based on AI engine), WiseStream(Based on AI engine)
• Support Wisepower(Power monitoring)
• Device certificate(Hanwha Vision Root CA),
• Secure storage(Secure element with FIPS 140-3 level3/CC EAL6+ certified), SBOM
• 2 SD slots edge storage
| Video | |
|---|---|
| Imaging Device Size | 1/1.2" |
| Type | CMOS |
| Resolution | 3840x2160, 3328x1872, 3072x1728, 2688x1512, 2592x1944, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 |
| Max. Framerate H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@8MP Max. 5fps) |
| Min. Illumination (Lux) Color(1/30sec, 30IRE) | 0.015 |
| BW(1/30sec, 30IRE) | 0.0015 |
| Video Out | USB: Micro USB Type C |
| Lens | |
| Focal Length (mm) | 5.9~13.3 |
| Zoom Ratio | Optical 2.25 |
| Max Aperture Ratio (F number) | Wide: 1.5 Tele: 2.9 |
| Angular Field of View | Horizontal: 109°~49° Vertical: 59°~27° Diagonal: 128°~56° |
| Min. Object Distance | 0.8m(2.62ft) |
| Focus Control | Simple focus |
| Lens Type | P iris(IR corrected) |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection Quantity | 8ea |
| Shape | 8point Polygonal zones |
| Privacy Masking Quantity | 32ea |
| Shape | 8point Polygonal zones |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Dynamic Privacy Masking: Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 2~1/30,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |

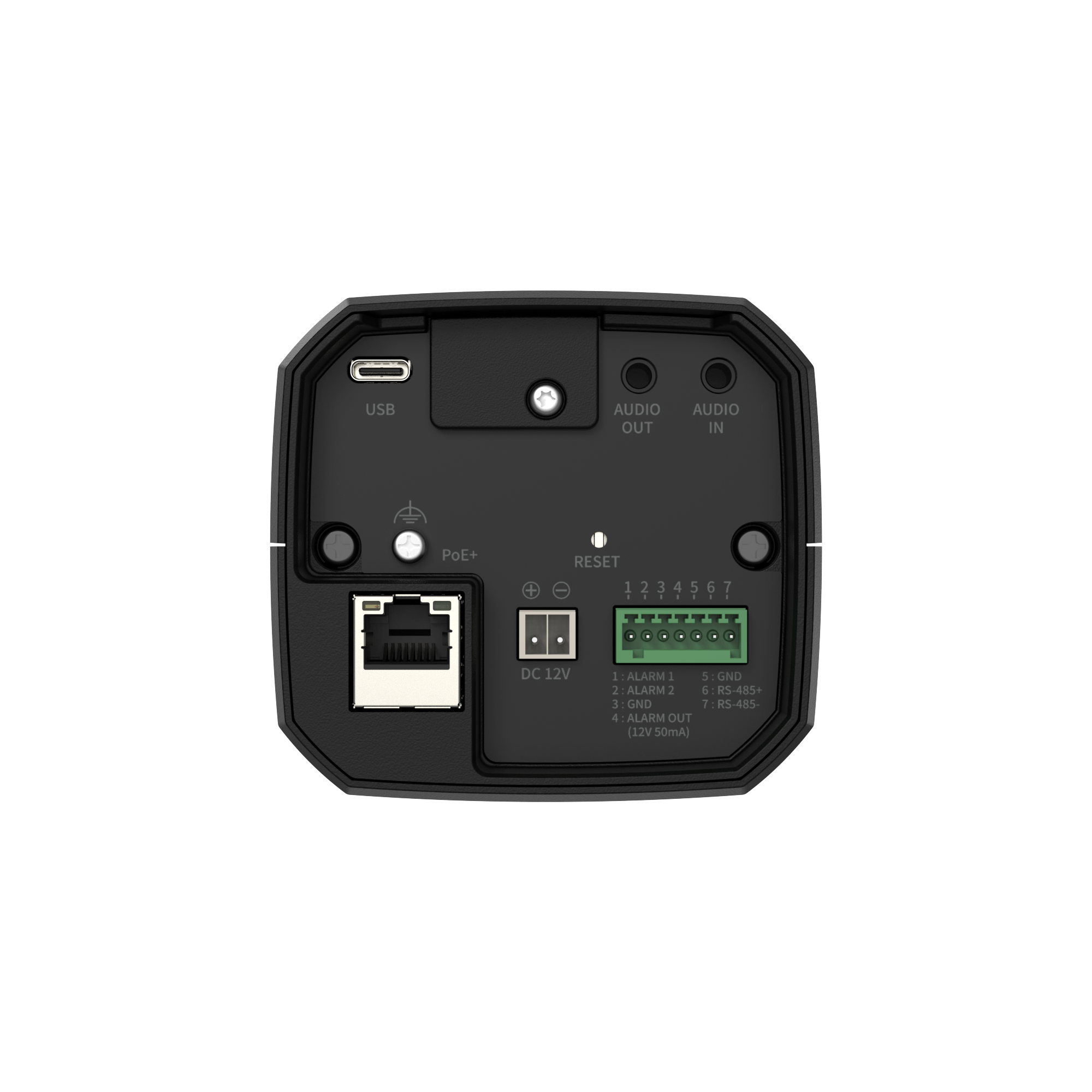

| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm Interface In/Out | 2 configurable I/O ports |
| Others | 12VDC output |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption |
| Alarm Events | When Alarm Trigger Occurred File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable(mic in/line in), Built-in mic |
| Audio Out | Line out |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes | Person: Upper/Lower clothes color, Gender, Bag Vehicle: Type(car, bus, truck, motorcycle, bicycle), Color Face: Age, Gender, Face mask, Glasses |
| Thumbnail | BestShot |
| Analytics Events | Based on AI Engine: Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) Normal: Defocus detection, Tampering, Audio detection, Shock detection, Virtual area(Appear/Disappear) |
| Business Intelligence | Based on AI Engine: People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 48kHz(64kbps) |
| Smart Codec | WiseStream(Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming Unicast | Up to 20 users, Multicast Support, Multiple Streaming Up to 5 profiles, 3 virtual channel support |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog |
| Application Programming Interface | ONVIF S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
| General | |
| SoC Type | Wisenet 9 |
| Dual NPU | Support |
| Memory RAM | 4GB |
| Flash | 8GB eMMC |
| Edge Storage | Micro SD/SDHC/SDXC Max. 1TB x 2slot (Total 2TB) |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition | Temperature: -10°C~+55°C(+14°F~+131°F) Humidity: 0~95% RH(non-condensing) |
| Storage Condition | Temperature: -50°C~+60°C(-58°F~+140°F) Humidity: 0~90% RH(non-condensing) |
| EPA(Effective Projected Area) | 0.0153㎡ |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC |
| Power Consumption | PoE: Max. 13.6W, typical 12.7W 12VDC: Max. 11.5W, typical 10.9W |
| Wisepower | Power monitoring |
| Power Redundance | Failover Support |
| Mechanical | |
| Color | Black |
| Material | Aluminum |
| RAL Code | RAL9005 |
| Product Dimensions | 82(W)x76(H)x190(D)mm(3.23x2.99x7.48") |
| Product Weight | 900g(1.98lb) |
| Certifications & Standards | |
| EMC | EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/8PPF) | Wide: 54.8m(179.73ft) Tele: 168.5m(552.89ft) |
| Observe (63PPM/19PPF) | Wide: 21.9m(71.89ft) Tele: 67.4m(221.16ft) |
| Recognize (125PPM/38PPF) | Wide: 11.0m(35.95ft) Tele: 33.7m(110.58ft) |
| Identify (250PPM/76PPF) | Wide: 5.5m(17.97ft) Tele: 16.9m(55.29ft) |

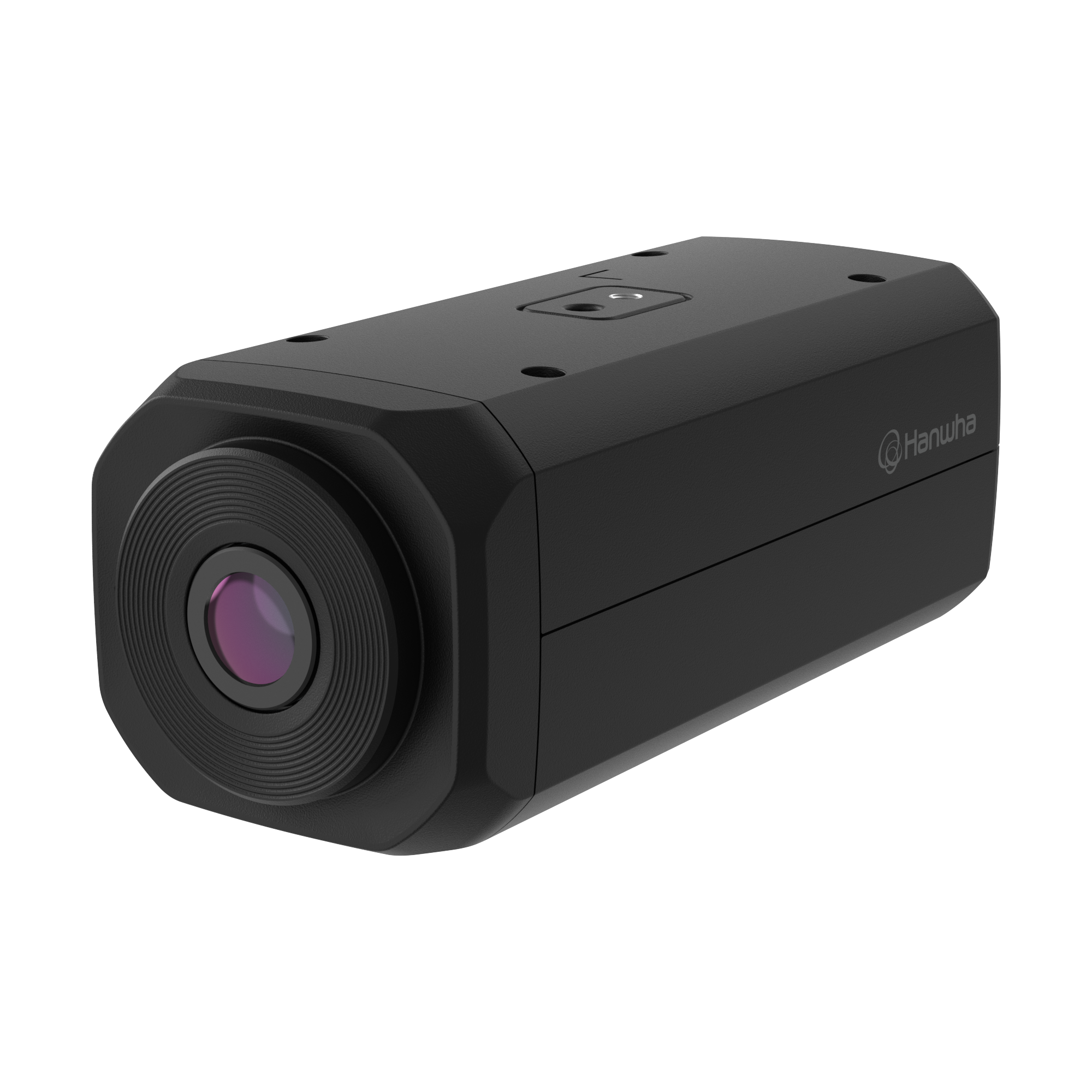

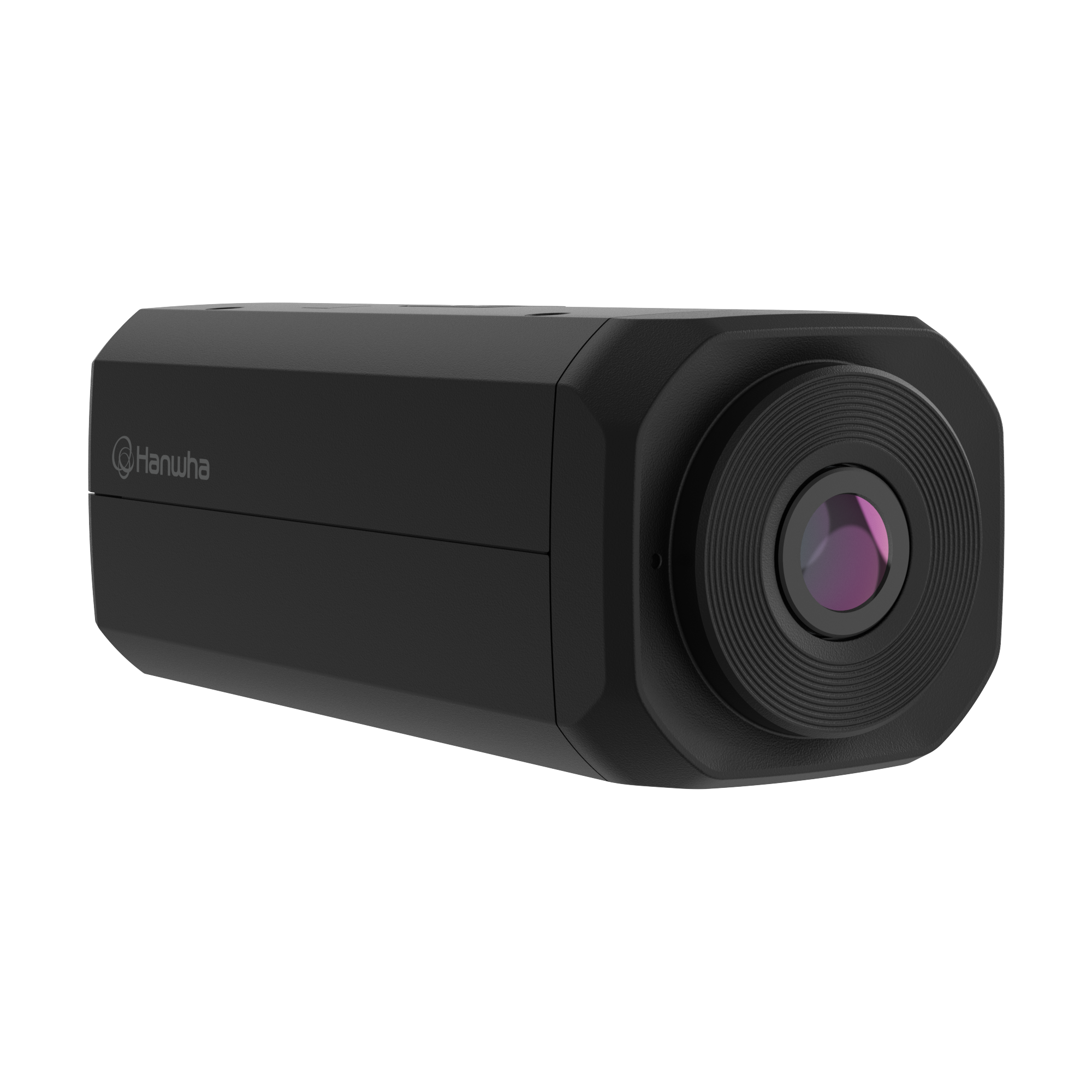

The Hanwha Vision PNB-A9082 is an 8-megapixel artificial intelligence box camera powered by the Wisenet 9 platform. It features a large 1/1.2-inch sensor that delivers 4K Ultra HD resolution at 30 frames per second. It features a 5.9–13.3 mm motorised varifocal lens, offering a horizontal field of view ranging from 109 to 49 degrees. It boasts low light sensitivity of 0.015 lux and a range of video features, including AI-based WiseStream and WiseNR II technologies, Extreme Wide Dynamic Range, Digital Image Stabilisation with a gyro sensor, handover, dynamic privacy masking, and a selectable microphone input. AI analytics include object detection, line crossing, intelligent video analytics, area slip-and-fall detection and sound classification, as well as business intelligence. Object attributes include person, face and vehicle, with BestShot support. The camera operates from -10°C to +55°C and features a FIPS 140-3 Level 3 secure element, as well as dual microSD slots with a capacity of up to 2 TB. It is powered by PoE+ or 12 VDC.
