• Maximum 8MP resolution (1/1.2” sensor)
• 15~50mm(3.33x) motorized varifocal
• Color: 0.015Lux(F1.5, 1/30sec, 30IRE)
• BW: 0.0015Lux(F1.5, 1/30sec, 30IRE)
• Analytics events based on AI engine : Object detection (Person/Face/Vehicle/License plate),IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion), Slip&Fall detection, Face mask detection, Social distancing detection
• Business intelligence based on AI engine : People/Vehicle/Crowd counting, Queue management, Heatmap
• Support BestShot and full attributes
• Support Dynamic Privacy Masking
• AI-based Image enhancement
• extremeWDR, WiseNRⅡ(Based on AI engine), WiseStream(Based on AI engine)
• Support Wisepower(Power monitoring)
• Device certificate(Hanwha Vision Root CA), Secure storage(Secure element with
• FIPS 140-3 level3/CC
• EAL6+ certified), SBOM
• 2 SD slots edge storage
| Video | |
|---|---|
| Imaging Device Size | 1/1.2" |
| Type | CMOS |
| Resolution | 3840x2160, 3328x1872, 3072x1728, 2688x1512, 2592x1944, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 |
| Max. Framerate H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| MJPEG | 30fps(@8MP Max. 5fps) |
| Min. Illumination (Lux) Color(1/30sec, 30IRE) | 0.015 |
| BW(1/30sec, 30IRE) | 0.0015 |
| Video Out | USB: Micro USB Type C |
| Lens | |
| Focal Length (mm) | 15~50 |
| Zoom Ratio | Optical 3.33 |
| Max Aperture Ratio (F number) | Wide: 1.67 Tele: 3.5 |
| Angular Field of View | Horizontal: 42.7°~12.6° Vertical: 24.1°~7.2° Diagonal: 49°~14.3° |
| Min. Object Distance | 2.5m(8.2ft) |
| Focus Control | Simple focus |
| Lens Type | Adaptive P iris |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection Quantity | 8ea |
| Shape | 8point Polygonal zones |
| Privacy Masking Quantity | 32ea |
| Shape | 8point Polygonal zones |
| Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Dynamic Privacy Masking: Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Speed Range | 2~1/30,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm Interface In/Out | 2 configurable I/O ports |
| Others | 12VDC output |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption |
| Alarm Events | When Alarm Trigger Occurred File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable(mic in/line in), Built-in mic |
| Audio Out | Line out |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes | Person: Upper/Lower clothes color, Gender, Bag Vehicle: Type(car, bus, truck, motorcycle, bicycle), Color Face: Age, Gender, Face mask, Glasses |
| Thumbnail | BestShot |
| Analytics Events | Based on AI Engine: Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) Normal: Defocus detection, Tampering, Audio detection, Shock detection, Virtual area(Appear/Disappear) |
| Business Intelligence | Based on AI Engine: People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 48kHz(64kbps) |
| Smart Codec | WiseStream(Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming Unicast | Up to 20 users, Multicast Support, Multiple Streaming Up to 5 profiles, 3 virtual channel support |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog |
| Application Programming Interface | ONVIF S, G, T, M |
| Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
| General | |
| SoC Type | Wisenet 9 |
| Dual NPU | Support |
| Memory RAM | 4GB |
| Flash | 8GB eMMC |
| Edge Storage | Micro SD/SDHC/SDXC Max. 1TB x 2slot (Total 2TB) |
| Edge Storage(OnCloud) | Micro SD/SDHC/SDXC Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition | Temperature: -10°C~+55°C(+14°F~+131°F) Humidity: 0~95% RH(non-condensing) |
| Storage Condition | Temperature: -50°C~+60°C(-58°F~+140°F) Humidity: 0~90% RH(non-condensing) |
| EPA(Effective Projected Area) | 0.0153㎡ |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC |
| Power Consumption | PoE: Max. 13.6W, typical 12.7W 12VDC: Max. 11.5W, typical 10.9W |
| Wisepower | Power monitoring |
| Power Redundance | Failover Support |
| Mechanical | |
| Color | Black |
| Material | Aluminum |
| RAL Code | RAL9005 |
| Product Dimensions | 82(W)x76(H)x190(D)mm(3.23x2.99x7.48") |
| Product Weight | 1020g(2.25lb) |
| Certifications & Standards | |
| EMC | EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/8PPF) | Wide: 195.0m(639.66ft) Tele: 730.7m(2,397.32ft) |
| Observe (63PPM/19PPF) | Wide: 78.0m(255.86ft) Tele: 292.3m(958.93ft) |
| Recognize (125PPM/38PPF) | Wide: 39.0m(127.93ft) Tele: 146.1m(479.46ft) |
| Identify (250PPM/76PPF) | Wide: 19.5m(63.97ft) Tele: 73.1m(239.73ft) |

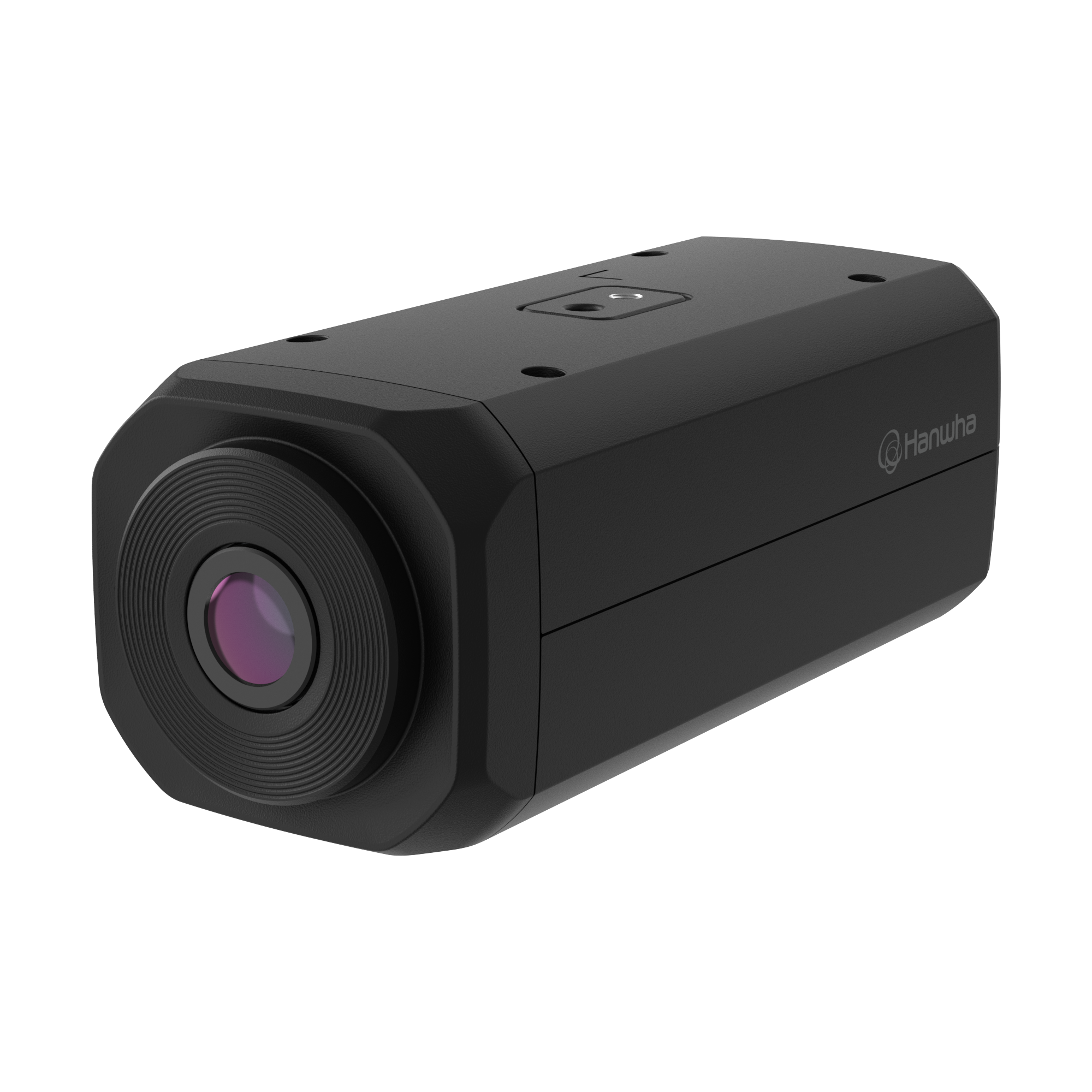

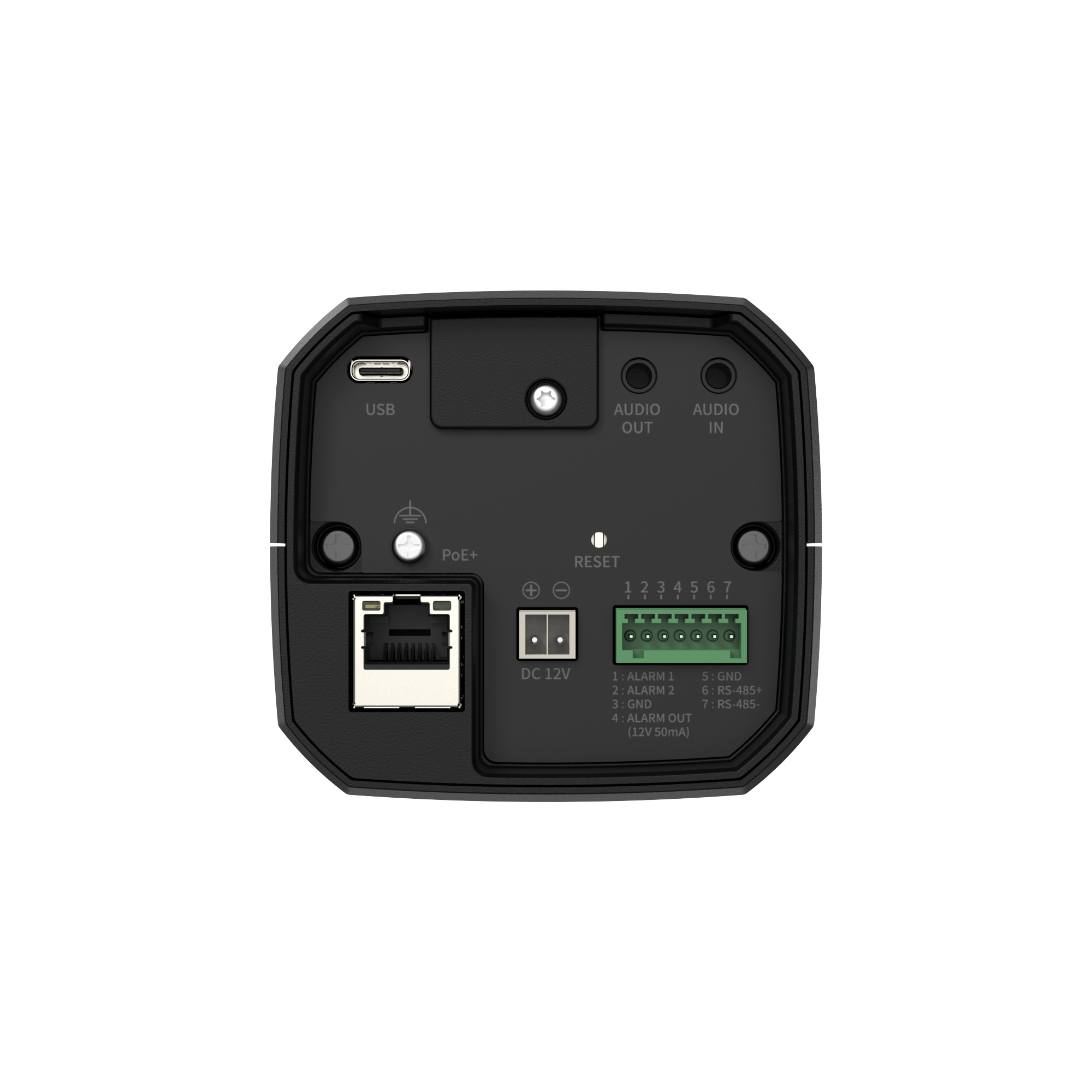

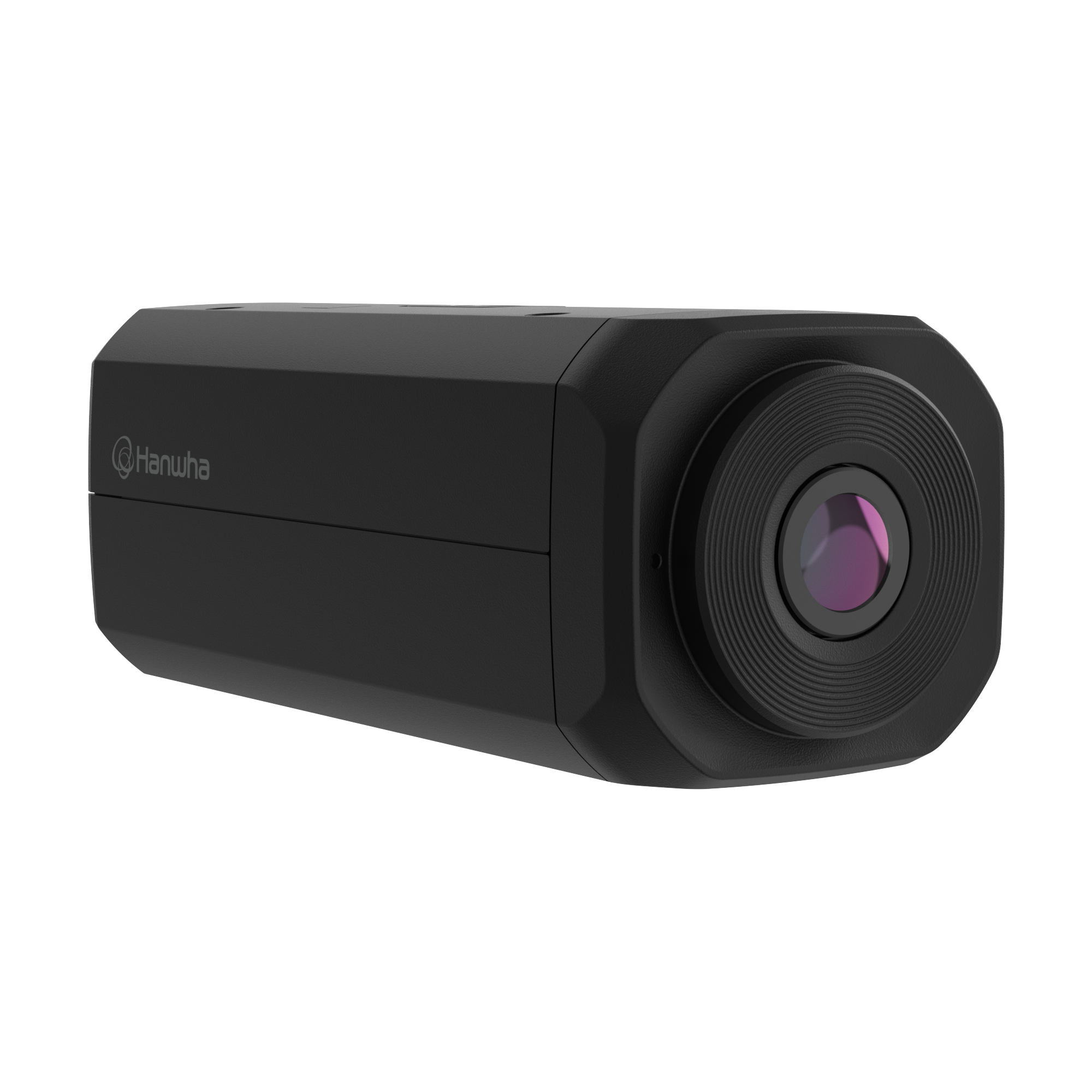

This 8MP AI box camera is powered by the Wisenet 9 platform, delivering 3840 x 2160 resolution at 30fps. It features a 15~50mm motorized varifocal lens with a horizontal field of view from 42.7° to 12.6° and low light sensitivity of 0.015 Lux. Video enhancements include AI-based WiseStream, WiseNR II, extreme WDR, DIS with a built-in gyro sensor, handover, and dynamic privacy masking. A USB port and selectable microphone input are included for easy installation. AI engine-based analytics include motion and object detection, line crossing, IVA area, slip & fall, and sound classification. Object attributes include person, face, and vehicle with BestShot support. Business intelligence features include people/vehicle/crowd counting, queue management, and heat mapping. The camera operates from -10°C to +55°C. It includes a FIPS 140-3 level 3 secure element, dual microSD slots up to 2TB total, and is powered by PoE+ or 12VDC with a metal shielded RJ-45 connector.
