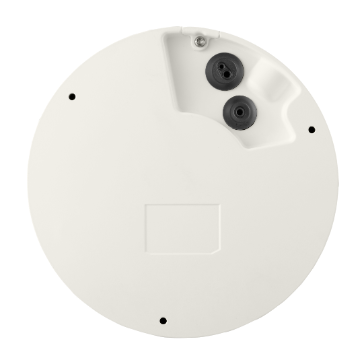

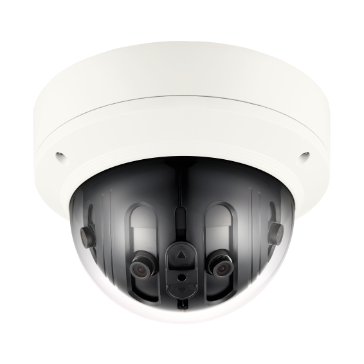

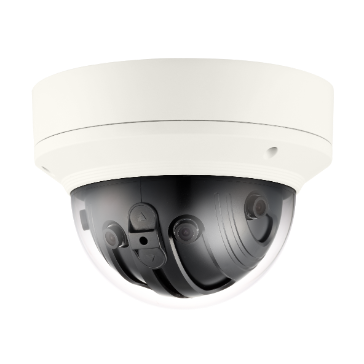

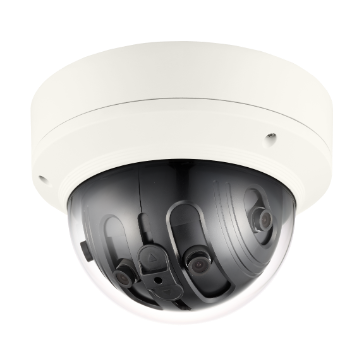

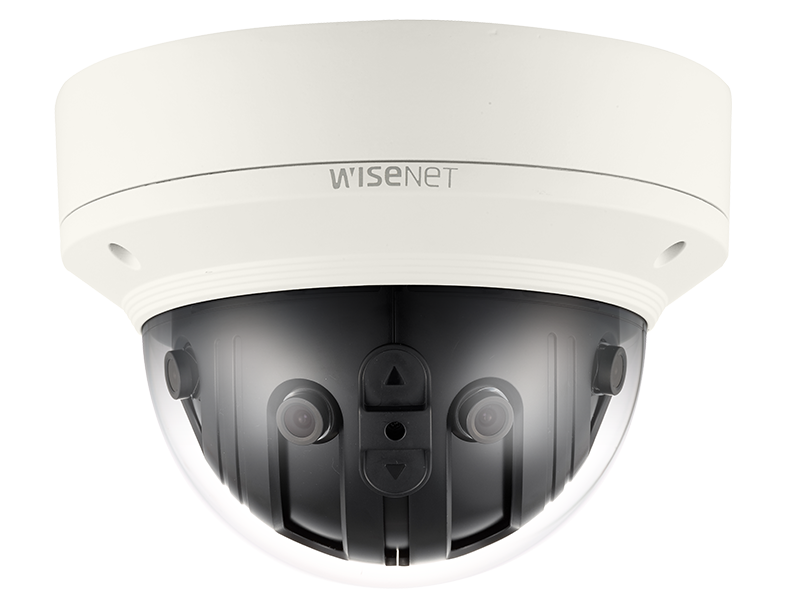

Hanwha Techwin’s first generation 180° panoramic multi-sensor camera. The PNM-9020V is part of the Wisenet P Series premium camera line and features H.265 codec. WiseStream technology, on-board analytics and up to 30fps at full resolution. With a legacy in world-class optical design and image processing technology, see how Hanwha is changing the way you see the world
Features:
- 7.3MP @ 30fps / Stitched Video
- Triple Codec H.265/H.264/MJPEG
- Heatmap Analytics
- On-board Analytics
- IP66/IK10
| Technical Specifications | |
| Video | |
| Imaging Device | 1/2.8" 2MP CMOSx4 |
| Min. Illumination | Color: 0.3Lux(F2.0, 1/30sec) B/W: 0.03Lux (F2.0, 1/30sec) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.6mm Fixed |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 180˚, V: 84˚ |
| Min. Object Distance | 1.5m(4.92ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate |
| Pan / Tilt / Rotate Range | 0˚~355˚ / 0˚~60˚ / - |
| Operational |
| Camera Title | Displayed up to 45 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC |
| Digital Noise Reduction | SSNRⅢ |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 16ea, polygonal zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection |
| Business Intelligence | Heatmap |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC recording at event triggers | |
| Alarm output | |
| Network |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area) |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(15 users) / Multicast |
| Multiple streaming(Up to 10 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S/G |
| SUNAPI(HTTP API) | |
| Environmental & Electrical |
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH |
| *Start up should be done at above -35˚C | |
| Storage Temperature / Humidity | -40°C ~ +60°C(-40°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Mechanical |
| Color / Material | Ivory / Aluminum |
| Product dimensions / weight | Ø199x143.5mm, 2025g |
