Hanwha - PNM-9022V - 2MP x 4CH H.265 Panoramic 209˚ Multi-Sensor Camera
Product Overview

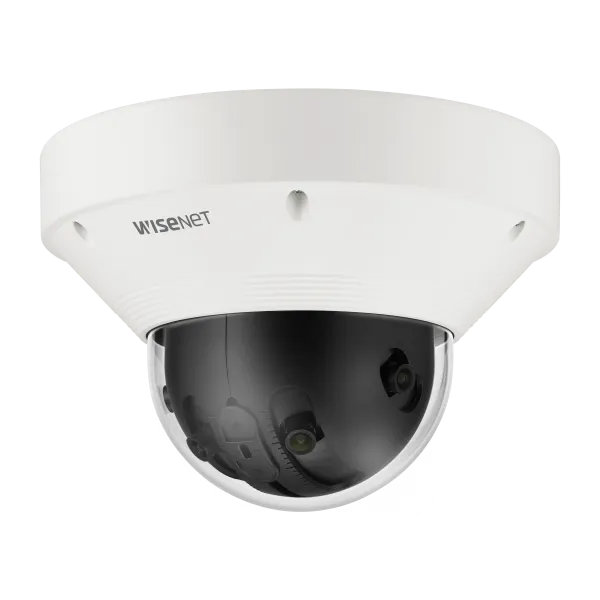

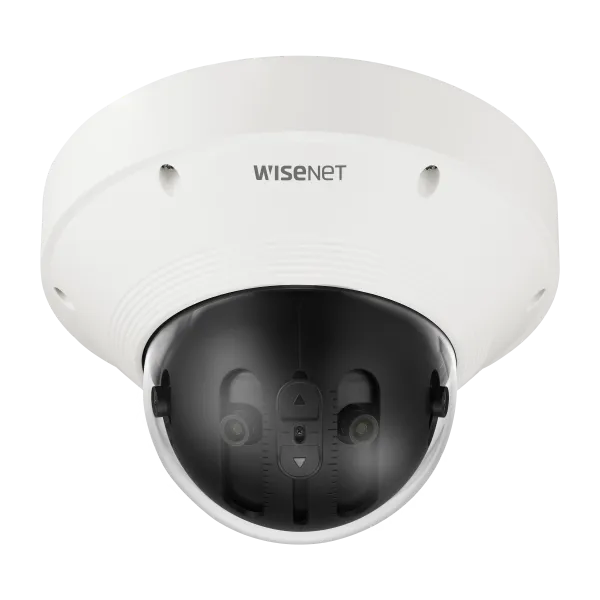

The PNM-9022V is an outdoor, vandal-resistant multi-sensor panoramic camera featuring a four-sensor design that seamlessly stitches images for a wide 180° or 209° field of view. It delivers up to an 8.3MP composite resolution at 30 fps, utilizing H.265/H.264/MJPEG compression alongside WiseStream II bandwidth optimization.
Key Configuration
- • Imaging device: 1/2.8" CMOS × 4 sensors; panoramic stitching: 180° mode (4096×1800) or 209° mode (4608×1800) at 30 fps
- • Lens: 2.8mm fixed focal ×4, F1.6; horizontal FOV: 209° or 180° (configurable), vertical FOV: 83.3°
- • Minimum illumination: color 0.1 lux, B/W 0.01 lux (F1.6, 1/30 sec); no IR built-in
- • Video compression: H.265/H.264 (Main/Baseline/High), MJPEG; WiseStreamⅡ
- • Power: PoE+ (IEEE 802.3at, Class 4) or 12VDC; PoE+ max 18W/typical 10.4W, 12VDC max 16W/typical 9W
Key Features
Equipped with 120dB extremeWDR and SSNR V noise reduction, this unit includes defog, dual alarm ports, and bi-directional audio. It runs a full intelligence suite—featuring motion, defocus, line-crossing, and area analytics alongside a behavioral heatmap—backed by 1TB of dual-slot microSD storage. Setup is streamlined via a micro USB Type B port for 720p installation video, with system compatibility certified through ONVIF Profiles S, G, and T.
Technical Context
Featuring fixed focus (1.5m min. distance), a 2 to 1/12,000 sec shutter, and a 4GB RAM/512MB Flash build, this camera supports 10 streaming profiles for 20 unicast and unlimited multicast users. It deploys a secure networking suite, including SRTP, LLDP, device certificates, and 802.1X authentication, alongside 8 motion zones and 32 privacy masks. Housed in an IP66/IK10/NEMA4X casing, the unit mounts directly to standard single, double, square, or 4" octagon gang boxes.
Installation Notes
Measuring Ø253 × 165 mm and weighing 3200g, this white aluminum panoramic camera operates from -40°C to 55°C (up to 95% RH). The unit accepts flexible PoE+ (Class 4) or 12VDC power inputs, relies entirely on ambient light due to its non-IR design, and provides onboard edge storage via dual microSD slots. To simplify deployment, it includes a dedicated alarm and audio I/O alongside a local micro USB Type B port for real-time video alignment during installation.
| Video | |
| Imaging Device | 1/2.8" CMOS x 4 |
| Resolution | [209º Mode] 4608X1800, 4032X1576, 3456X1352, 2864X1124, 2304X900, 1728X676, 1152X452, 560X224, 720x576 [180º Mode] 4096X1800, 3584X1576, 3072X1352, 2560X1124, 2048X900, 1536X676, 1024X452, 512X224, 720X576 |
| Maximum Framerate | H.265/H.264: 30fps MJPEG: 30fps |
| Minimum Illumination | Color: 0.1Lux(F1.6, 1/30sec) B&W: 0.01Lux(F1.6, 1/30sec) |
| Video Out | USB : Micro USB Type B, 1280x720 for installation |
| Lens |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal x 4 |
| Maximum Aperture Ratio | F1.6 |
| Angular Field of View | H: 209˚/180˚, V: 83.3˚ |
| Minimum Object Distance | 1.5m |
| Focus Control | Fixed |
| Operational |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extreme WDR(120dB) |
| Digital Noise Reduction | SSNRⅤ |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones
|
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection |
| Business Intelligence | Heatmap |
| Alarm I/O | Selectable 2 port |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC recording at event triggers Alarm output |
| Audio In | Selectable(microphone in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Maximum output level: 1Vrms |
| Network |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek Micro |
| Edge Storage | SD/SDHC/SDXC 2 slots 1TB (512GB X 2) |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical |
| Operating Temperature / Humidity | Normal : -40°C~+55°(-40°F ~ +131°F) / Intermittent : -40°C~+60°C(-40°F ~+140°F) Less than 95% RH(Non-condensing) |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC |
| Power Consumption | PoE+: Maximum 18W, Typical 10.4W 12VDC: Maximum 16W, Typical 9W |
| Mechanical |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
Product dimensions / weight / Gangbox compatibility | Ø9.96"x6.5" (Ø253x165mm), 7.05lbs (3200g) Single, double, 4" octagon, square |
