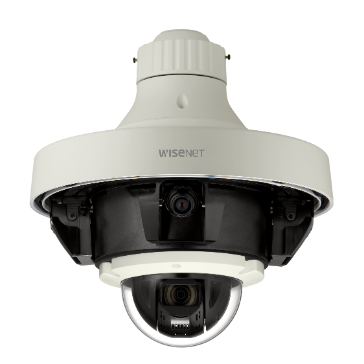

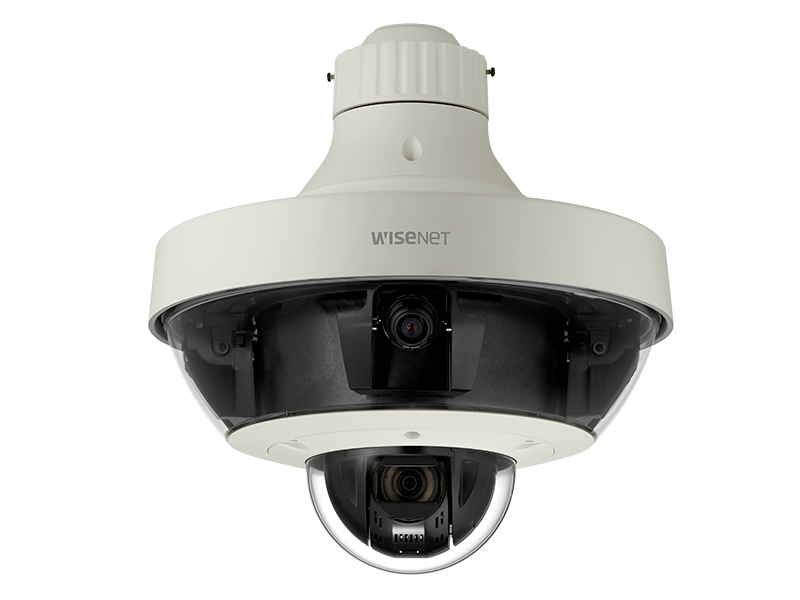

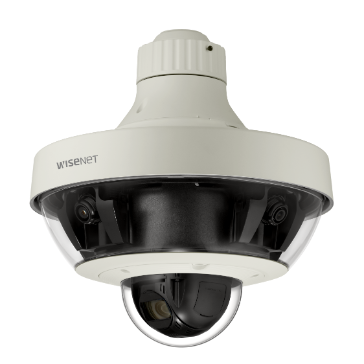

Hanwha - PNM-9320VQP - 5 Channel 4x 2MP / 5MP + 2MP 32x PTZ
Part number:
PNM-9320VQP
Price:
Network vandal outdoor Multi-sensor Multi-Directional camera, (2MP/5MP X 4 sensors sold separately) 8MP ~20MP (2MP @ 60fps or 5MP @30fps) fixed focal lens modules + 2MP 32x optical zoom PTZ, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR @ 2MP or 120dB @ 5MP, defocus detection, built in analytics, 4x SD card, hallway view, HLC, fog detection, DIS(Gyro Sensor), PoE+, IP66/IK10, -35°C ~ +55°C (-31°F ~ +131°F)
Features:
Multi-directional camera
- Exchangeable 4ea x 2MP / 5MP lens modules
- 8MP to 20MP resolution depend on the combination of lens modules
- WDR 150dB with 2MP lens module, 120dB with 5MP lens module
- 2.4mm, 2.8mm, 3.6mm, 6mm, 12mm fixed lens (2MP module)
- 3.7mm, 4.6mm, 7mm fixed lens (5MP module)
PTZ camera
- Maximum 2MP (1920 x 1080) resolution
- 4.44~142.6mm (Optical 32x) lens
- WDR 150dB, Day & Night (ICR)
Common
- Maximum 60fps@2MP, Maximum 30fps@5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support
- Video Analytics, WiseStream II support
- SD / SDHC / SDXC memory 5 slots
- Lens modules are required, not included with the camera
| Technical Specifications | |
| Video | |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation |
| Lens | |
| Optional Lens | SLA-2M2400P(2MP 2.4mm) |
| SLA-2M2800P(2MP 2.8mm) | |
| SLA-2M3600P(2MP 3.6mm) | |
| SLA-2M6000P(2MP 6.0mm) | |
| SLA-2M1200P(2MP 12mm) | |
| SLA-5M3700P(5MP 3.7mm) | |
| SLA-5M4600P(5MP 4.6mm) | |
| SLA-5M7000P(5MP 7.0mm) | |
| Operational |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 2MP 150dB, 5MP 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| - Mosaic | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Face detection, Fog detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC recording at event triggers | |
| Network |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(20 users) / Multicast |
| Multiple streaming(Up to 10 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S |
| SUNAPI(HTTP API) | |
| Environmental & Electrical |
| Operating Temperature / Humidity | -35°C ~ +55°C (-31°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Mechanical |
| Color / Material | Ivory / Aluminum |
| Product dimensions / weight | Ø367.8x381.5mm (Ø144.49"x150.20"), 7.05kg (16.1 lb) |
