Hanwha - PNM-9322VQP - 5 Channel 2MP / 5MP X 4 + 2MP 32x PTZ Camera
Product Overview

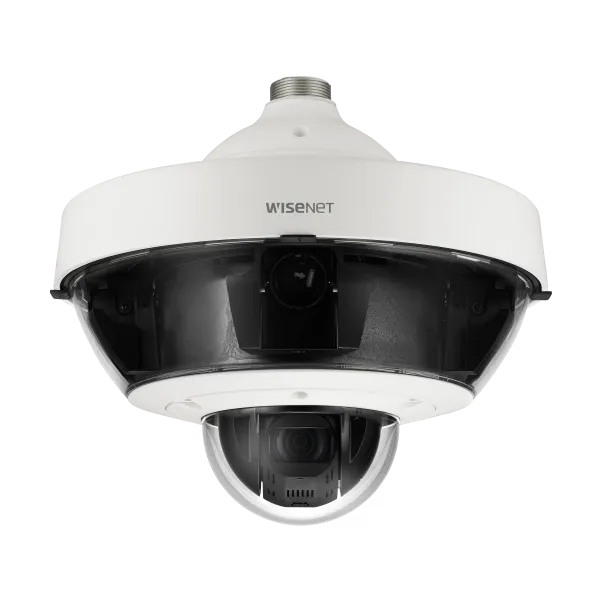

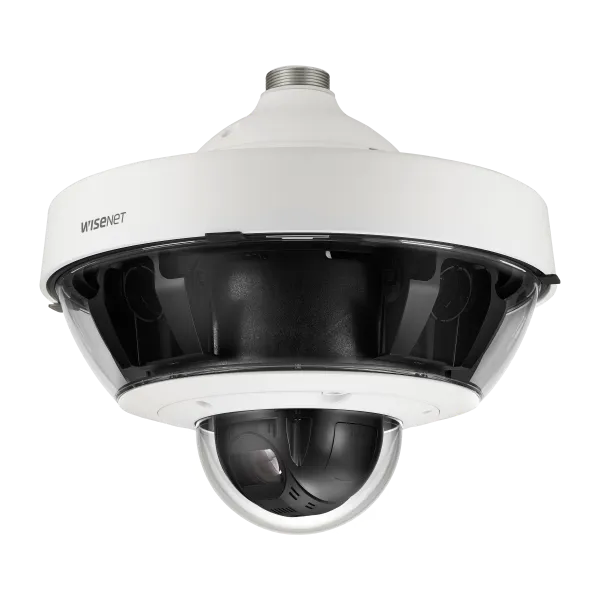

The Hanwha PNM-9322VQP is a vandal-resistant outdoor multi-directional camera combining four interchangeable multi-sensor modules (sold separately) with an integrated 2MP PTZ camera. The multi-sensor section supports up to 2MP at 60 fps or 5MP at 30 fps using fixed lens modules, while the PTZ camera features a 4.44~142.6mm 32x optical zoom lens delivering 1080p video at up to 60 fps.
Key Configuration
• Multi-sensor: 4 interchangeable 2MP or 5MP lens modules (sold separately), supporting total resolutions from 8MP to 20MP.
• PTZ sensor: 1/2.8" CMOS, 1920×1080 resolution at up to 60 fps.
• PTZ lens: 4.44~142.6mm 32x optical zoom, F1.6–F4.4, horizontal FOV 61.8°–2.19°.
• PTZ movement: 360° endless pan and 190° tilt with up to 700°/sec preset speed.
• Power: HPoE (IEEE 802.3bt Class 8, injector included), max 65W, typical 34W.
Key Features
The system supports up to 150dB WDR, with PTZ features including DIS, defog, auto tracking, and SmartZoom linked to presets or analytics events. Built-in analytics include motion, face, fog, loitering, intrusion, directional detection, tampering, and virtual line detection. Additional features include 5× microSD slots (256GB per channel), PTZ audio input/output, 1 alarm input with 2 outputs, up to 300 PTZ presets, advanced tour and sequence functions, privacy masking, ONVIF Profile S/T support, and 5GB RAM with 1280MB Flash memory.
Technical Context
Supports H.265/H.264/MJPEG compression with WiseStreamⅡ bandwidth optimization. Networking includes IPv4/IPv6, RTSP, HTTPS, SNMP, QoS, Bonjour, LLDP, and other standard protocols, with support for multicast and up to 10 streaming profiles for 20 unicast users. Security features include HTTPS/SSL authentication, IP filtering, user access logs, 802.1X authentication, and device certificates. The camera is rated IP66 and IK10 for outdoor and vandal-resistant protection.
Installation Notes
Built with a white aluminum housing, the camera measures Ø367.8 × 335.7 mm and weighs 7.05 kg. It operates from -40°C to +55°C and is powered via HPoE (IEEE 802.3bt Class 8) with included injector and SFP port. The unit requires separately sold lens modules and includes 5× microSD slots for edge storage, CVBS installation output, and audio/alarm I/O support on the PTZ channel only.
| Video | |
| Imaging Device | 1~4CH: Optional lens / 5CH: 1/2.8" CMOS |
| Resolution | [5MP] 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 320x240 [2MP] 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: 2MP Max. 60fps/50fps(60Hz/50Hz), 5MP Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | None |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation |
| Video Transmission Distance | None |
| Lens | |
| Focal Length (Zoom Ratio) | 1~4CH: Optional lens / 5CH: 4.44~142.6mm(32x) zoom |
| Max. Aperture Ratio | 1~4CH: Optional lens / 5CH: F1.6(Wide)~F4.4(Tele) |
| Angular Field of View | 1~4CH: Optional lens / 5CH: H 61.8°(Wide)~2.19°(Tele), V 36.2°(Wide)~1.24°(Tele) |
| Min. Object Distance | 1~4CH: Optional lens / 5CH: Wide:1.5m, Tele:2m |
| Focus Control | 1~4CH: Optional lens / 5CH: Oneshot AF |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | SLA-2M2400P(2MP 2.4mm) SLA-2M2800P(2MP 2.8mm) SLA-2M3600P(2MP 3.6mm) SLA-2M6000P(2MP 6.0mm) SLA-2M1200P(2MP 12mm) SLA-5M3700P(5MP 3.7mm) SLA-5M4600P(5MP 4.6mm) SLA-5M7000P(5MP 7.0mm) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 1~4CH: Optional lens / 5CH: 360° Endless / 190˚ (-5˚~185˚) |
| Pan Range | None |
| Pan Speed | 5CH: Preset:700°/sec, Manual:0.024°/sec~200°/sec |
| Tilt Range | None |
| Tilt Speed | 5CH: Preset:700°/sec, Manual:0.024°/sec~200°/sec |
| Rotate Range | None |
| Sequence | 5CH: Preset(300ea), Swing, Group(128ea), Trace(4ea), Tour, Auto run, Schedule |
| Preset Accuracy | 5CH: ±0.2° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | None |
| Day & Night | 1~4ch: Auto(Electrical), 5CH: Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 2MP 150dB, 5MP 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 1~4CH: 32ea, polygonal zones / 5CH: rectangle zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Face detection, Fog detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line |
| Business Intelligence | None |
| Serial Interface | None |
| Alarm I/O | Input 1ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC recording at event triggers Alarm output |
| Audio In | Selectable(mic in/line in) - PTZ(CH5) only Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms - PTZ(CH5) only |
| IR Viewable Length | None |
| IR Illuminator (Optional) | None |
| Water Removal | None |
| Auto Tracking | None |
| Coaxial Protocol | None |
| Color Palettes | None |
| Radiometry | |
| Temperature Detect Range | None |
| Temperature Accuracy | None |
| Temperature Detection | None |
| Additional | None |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Video Quality Adjustment | None |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | None |
| Edge Storage | Micro SD/SDHC/SDXC 4slot 256GB(Each CH) |
| Memory | 5GB RAM, 1280MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | HPoE(IEEE802.3bt, Class 8) |
| Power Consumption | HPoE: Max 65W, Typical 34W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø367.8x335.7mm(Ø144.8"x132.2") / 7.05kg(15.54lb) |
| Compatible Conduit hole / Gangbox | None |
| Hanging Mount (Dome) | None |
| Skin Cover (Dome) | None |
| Weather Cap (Dome) | None |
| Power Module | None |
| Backbox | None |
