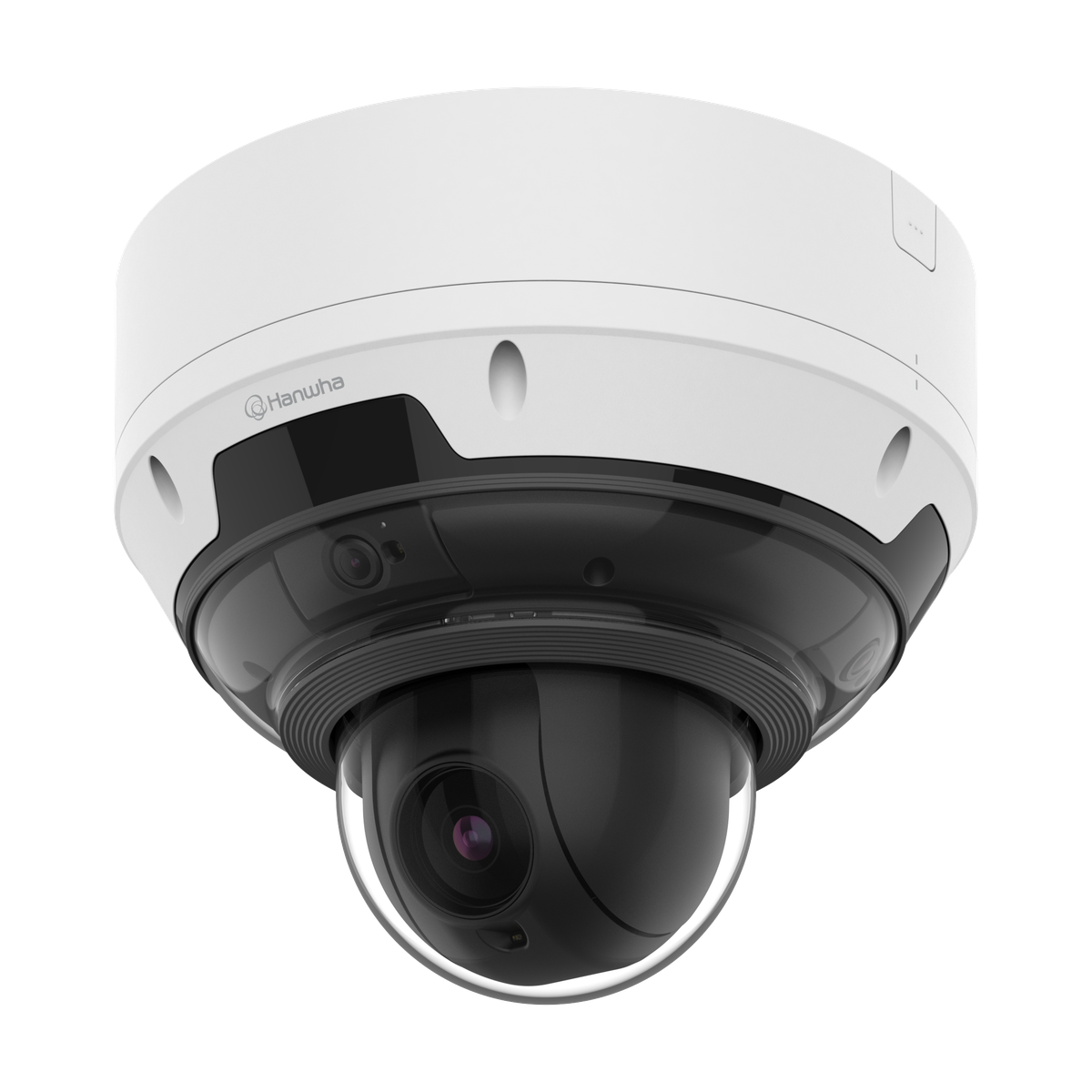

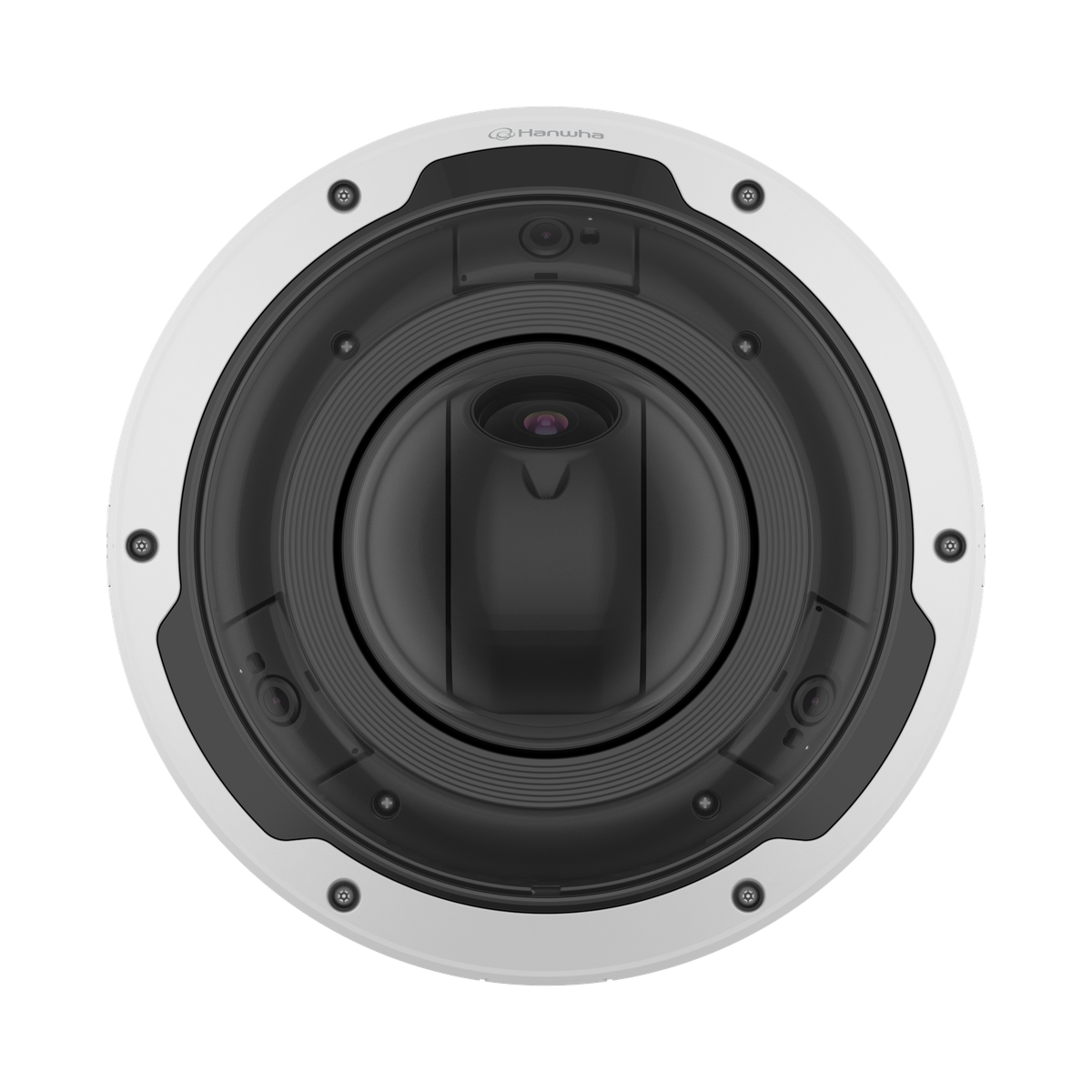

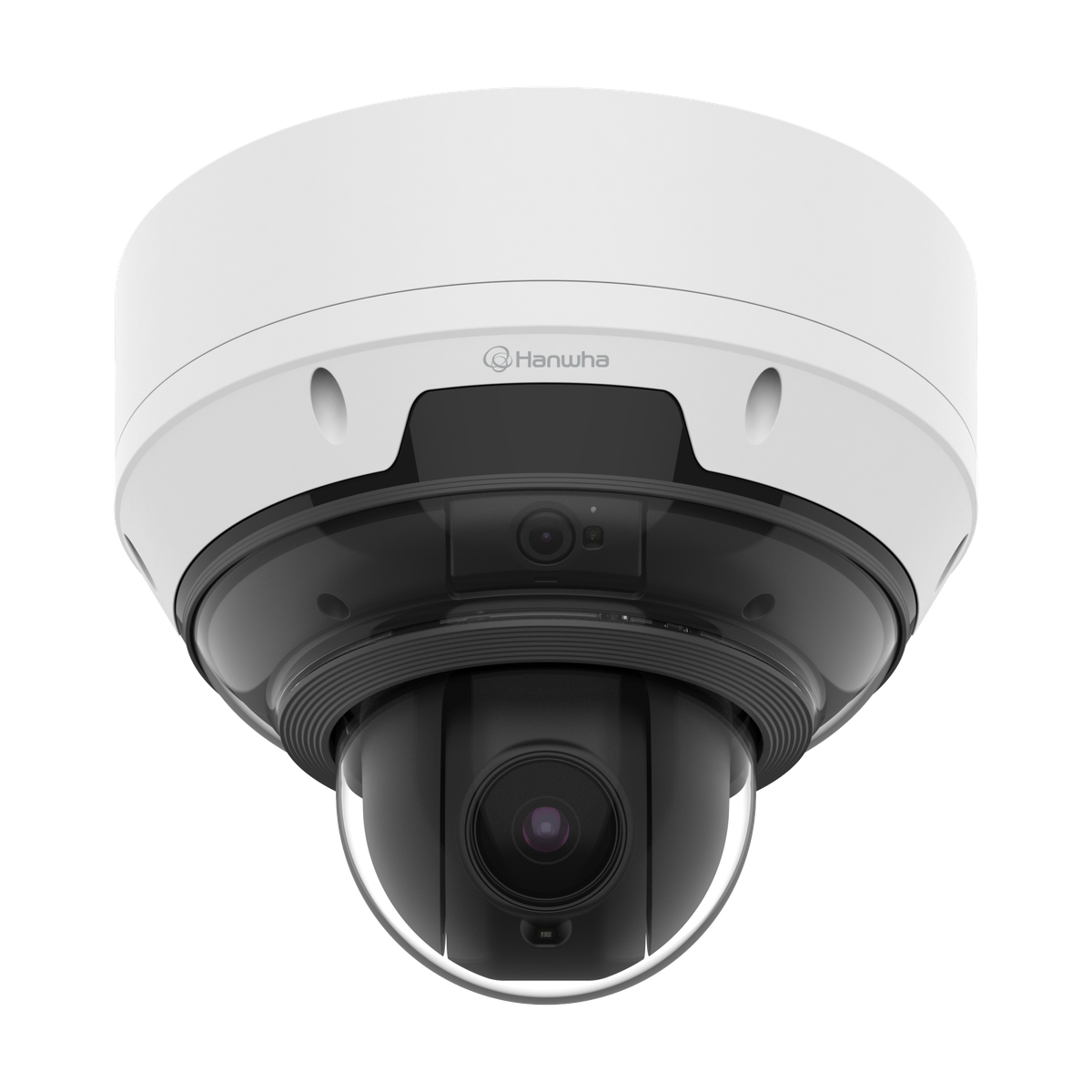

Hanwha - PNM-C19183RVTP - Wisenet P series network vandal outdoor Multi-Directional camera, 3CH x 5MP @ 30FPS and 4MP PTZ 18x Zoom, 3CH Fix Lens 2.4mm (FoV H: 123°, V: 91°), 120dB WDR; IR viewable length 15m(49ft), Analytics events based on AI engine
Part number:
Price:
• Full coverage All-in-One design (5MP 3CH fixed + 4MP 18x PTZ)
• Compact size (ø250)
• Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
• Business intelligence based on an AI engine: People/Vehicle counting
• Support Alarm/Audio via optional SPM-4210 I/O box
• Up to 15m IR distance
• Auto calibration
• Support Smart Zoom (Advanced Handover)
• WiseStream (Based on AI engine)
• Secure element (FIPS 140-3 level3, CC EAL6+), SBOM
| Video | ||||
|---|---|---|---|---|
| Imaging Device | ||||
| Size | 1/2.8" | |||
| Type | CMOS | |||
| Resolution | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | 2592x1520, 2560x1440, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | ||||
| H.265/H.264 | 30fps | 30fps | 30fps | 30fps |
| MJPEG | 30fps(@5MP Max. 5fps) | 30fps(@5MP Max. 5fps) | 30fps(@5MP Max. 5fps) | 30fps(@4MP Max. 5fps) |
| Min. Illumination (Lux) | ||||
| Color(1/30sec, 30IRE) | 0.08 | 0.08 | 0.08 | 0.05 |
| BW(1/30sec, 30IRE) | 0.008 | 0.008 | 0.008 | 0.005 |
| Video Out | USB: Micro USB Type C | |||
| Lens | ||||
| Ch 1 | Ch 2 | Ch 3 | PTZ | |
| Focal Length (mm) | 2.4 | 2.4 | 2.4 | 5.42~98.29 |
| Zoom Ratio | ||||
| Optical | 18x | |||
| Digital | 32x | |||
| Max Aperture Ratio (F number) | ||||
| Wide | 2.0 | 2.0 | 2.0 | 2.0 |
| Tele | 3.27 | |||
| Angular Field of View | ||||
| Horizontal | 123° | 123° | 123° | 53.1°~3.39° |
| Vertical | 91° | 91° | 91° | 31.75°~1.98° |
| Diagonal | 159° | 159° | 159° | 60.8°~3.92° |
| Min. Object Distance | 0.5m(1.64ft) | 0.5m(1.64ft) | 0.5m(1.64ft) | 5.0m(16.4ft) |
| Focus Control | Fixed | Fixed | Fixed | Oneshot AF, Focus save |
| Lens Type | Fixed iris | Fixed iris | Fixed iris | DC auto iris with hall sensor |
| Pan / Tilt / Rotate | ||||
| Ch 1 | Ch 2 | Ch 3 | PTZ | |
| Pan Speed | ||||
| Preset | Max. 600°/sec | |||
| Manual | 0.024°/sec~250°/sec | |||
| Tilt Speed | ||||
| Preset | Max. 500°/sec | |||
| Manual | 0.024°/sec~250°/sec | |||
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule | |||
| Preset Accuracy | ±0.2° | |||
| Operational | ||||
| Ch 1 | Ch 2 | Ch 3 | PTZ | |
| Direction Indicator | Support | |||
| Day & Night | Auto(ICR) | |||
| Backlight Compensation | BLC, WDR, SSDR | BLC, WDR, SSDR | BLC, WDR, SSDR | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 | |||
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |||
| Digital Image Stabilization | Support | |||
| Defog | Support | |||
| Motion Detection | ||||
| Quantity | 8ea | |||
| Shape | 8point Polygonal zones | |||
| Privacy Masking | ||||
| Quantity | 12ea | 12ea | 12ea | 32ea |
| Shape | 4point Quadrangle zones | 4point Quadrangle zones | 4point Quadrangle zones | 4point Quadrangle zones |
| Color / Option | Gray, Green, Red, Blue, Black, White | Gray, Green, Red, Blue, Black, White | Gray, Green, Red, Blue, Black, White | Gray, Green, Red, Blue, Black, White, Mosaic |
| Gain Control | Low, Middle, High | Low, Middle, High | Low, Middle, High | Off, Max gain, Manual |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | ATW, AWC, Manual, Indoor, Outdoor | ATW, AWC, Manual, Indoor, Outdoor | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium |
| LDC | Support | Support | Support | |
| Electronic Shutter | ||||
| Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) | |||
| Speed Range | 1/5~1/12,000sec | |||
| Video Rotation | Flip, Mirror | |||
| Alarm Interface | Others: Support alarm I/O via optional I/O box | |||
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription | |||
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, MQTT: publication, Smart zoom | |||
| Audio In | Support via optional I/O box | |||
| Audio Out | Support via optional I/O box | |||
| Light Type | IR LED | IR LED | IR LED | |
| Light Viewable Length | ||||
| IR | 15m(49.21ft), 10m(32.8ft) under 3m height installation | 15m(49.21ft), 10m(32.8ft) under 3m height installation | 15m(49.21ft), 10m(32.8ft) under 3m height installation | |
| IR Wavelength | 850nm | 850nm | 850nm | |
| Auto Tracking | Object auto tracking(Person/Vehicle), Target lock tracking | |||
