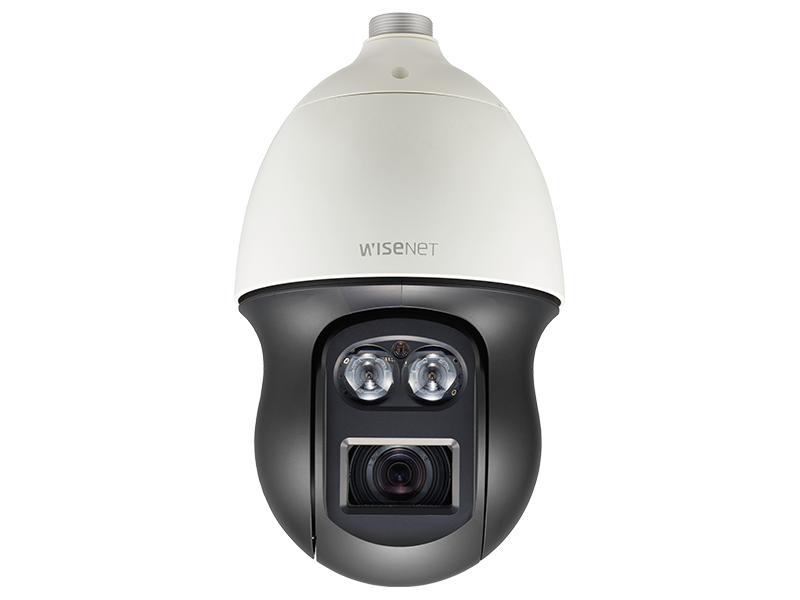

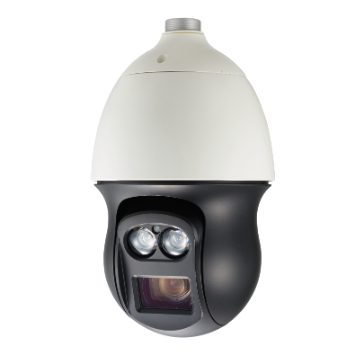

Hanwha - PNP-9200RH - 4K 20x Network IR PTZ Dome Camera
Part number:
PNP-9200RH
Price:
The PNP-9200RH features 20x optical zoom lens and IR viewable length up to 656ft enabling users to capture 4K high quality images anytime, anywhere. Additionally, Endless 360° pan rotation and 190° tilt control, advanced Auto Tracking functions are suitable to make your monitoring more powerful, mechanical anti-vibration.
Features:
- 8 megapixel (3840 x 2160) resolution
- Real 4K 20x IR corrected optical zoom, 16x digital zoom
- High-speed 400˚/sec (Pan), 300˚/sec (Tilt)
- H.265, H.264, MJPEG, WiseStream support
- Max.30fps@4K (H.265, H.264)
- Maximum IR viewable length : 200m (656 ft.)
- Day & Night (ICR), WDR (120dB)
- Auto tracking, Intelligent video analytics
- SD/SDHC/SDXC memory slot (Maximum 128GB)
- IP66, IK10, Bi-directional audio support
| Technical Specifications | |
| Video | |
| Imaging Device | 1/2.5" 8MP CMOS |
| Min. Illumination | Color: 0.01Lux(F1.6, 1/30sec) BW: 0Lux(IR LED) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.8~96mm(20x) zoom |
| Max. Aperture Ratio | F1.8(Wide)~F3.6(Tele) |
| Angular Field of View | H: 65.1°(Wide)~3.8°(Tele) / V: 38.4°(Wide)~2.2°(Tele) |
| Min. Object Distance | 1.5m(3.28ft) |
| Focus Control | Oneshot AF |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate |
| Pan Range | 360˚ Endless |
| Pan Speed | Preset: 400˚/sec, Manual: 0.024˚/sec ~ 250˚/sec |
| Tilt Range | 190˚(-5˚~185˚) |
| Tilt Speed | Preset: 300˚/sec, Manual: 0.024˚/sec ~ 250˚/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.2˚ |
| Operational |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Defog | Support |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 16ea, rectangular zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 4ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| PTZ Preset | |
| Audio In | Selectable(mic in/line in) |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 200m(656.17ft) |
| Network |
| Ethernet | RJ-45(10/100BASE-T), SFP(Optional) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStream |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(15 users) / Multicast |
| Multiple streaming (Up to 3 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S/G |
| SUNAPI(HTTP API) | |
| Wisenet open platform | |
| Environmental & Electrical |
| Operating Temperature / Humidity | -50°C~+55°C (-122°F~+131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C~+60°C (-122°F~+140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Mechanical |
| Color / Material | Body: Ivory / Plastic, Head: Black / Plastic |
| Product dimensions / weight | Ø236.9x407.7mm(9.33x16.05"), 7.1Kg(15.65 lb) |
