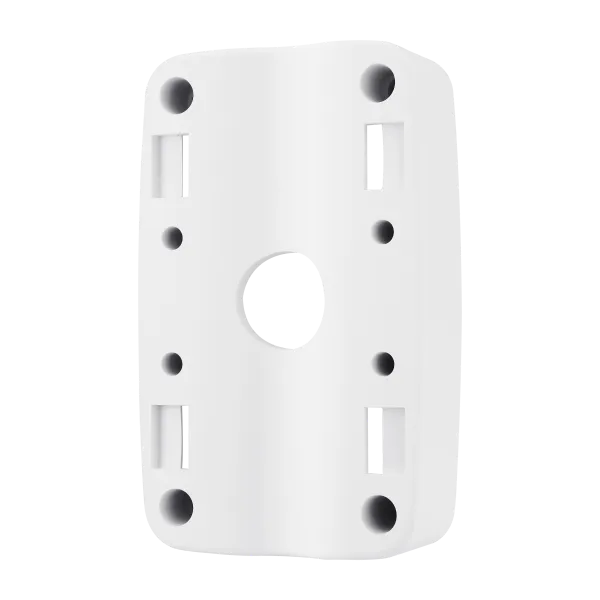

Hanwha - SBP-300PMW1 - Pole Mount Base
Part number:
SBP-300PMW1
Price:
The Hanwha SBP-300PMW1 is a heavy-duty aluminum pole mount adapter plate designed to secure commercial surveillance hardware to vertical pillars, utility posts, and light masts. It acts as the structural foundation between a curved mounting arm or back box and a rounded column substrate.
Key Features:
- • Material: Aluminum
- • Dimensions : 185(W) x 115(D) x 40(H)mm (7.28" x 4.53" x 1.57")
- • Weight: 760g (1.68 lb)
- • Color: White
- • Mount Screw size : M10Conduit hole : 19.1mm(3/4") (M25)
- • Minimum pole diameter: 80mm
- • Stainless steel mounting straps included
• Use with SBP-300WMW, SBP-300WMW1, SBP-390WMW2
| Environmental | |
| Operationg Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / 0 ~ 100% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / 0 ~ 100% RH |
| Mechanical | |
| Color | White |
| Material | Aluminum |
| RAL code | RAL9003 |
| Product dimensions / weight | 185(W)x115(D)x40(H)mm, 760g |
| Mount Screw size | M10 |
| Conduit hole | 19.1mm(3/4") (M25) |
Name
Description
Size
Downloads
File
Manual
0.4mb
File
Specification
0.4mb
File
Compliant Product List
0.8mb
