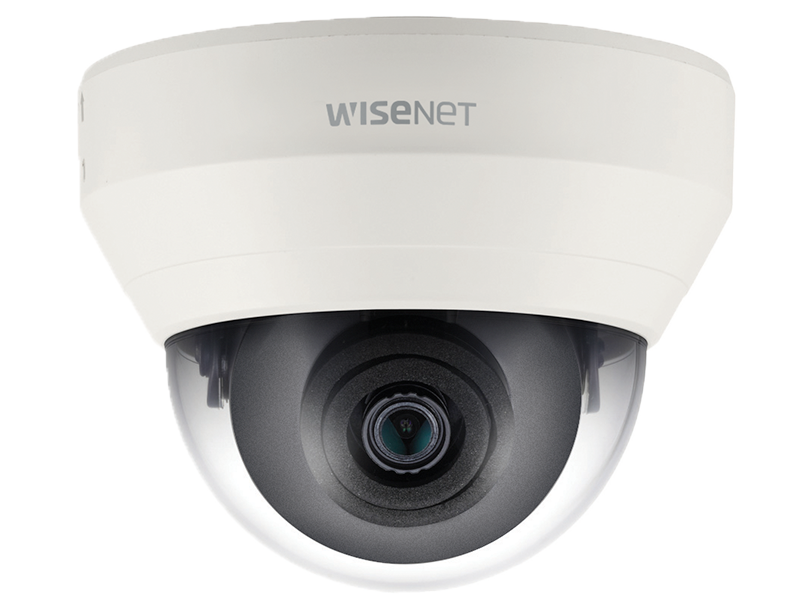

Wisenet HD+ indoor dome cameras allow users to upgrade their surveillance systems to HD using legacy coax cabling without the costly process of ripping and replacing coax with ethernet cabling. The new Wisenet HD+ cameras offer a variety of high-performance features including Day/Night operation, motion detection, defog and more depending on model. Setup functions are easily controlled by OSD with the built-in joystick or control over coaxial cable with WiseNet HD+ DVRs. Low power consumption, compact form factors, and transmission up to 1,640 feet further enhance the lineup.
- 1080p @ AHD (Default)
- 0.1Lux@1.2 (Color), 0.01ux@F1.2 (B/W)
- Composite video output (switchable)
- 2.8mm Fixed Lens
- Day & Night (ICR), DWDR, SSNRIV, motion detection
- 12VDC Only
|
Model |
SCD-6013 |
|
|
Video |
|
|
|
Imaging Device |
1/3" 2M CMOS |
|
|
Total Pixels |
1,956(H) x 1,266(V) 2.47M pixels |
|
|
Effective Pixels |
1,944(H) x 1,092(V) 2.12M pixels |
|
|
Scanning System |
Progressive scan |
|
|
Min. Illumination |
Color : 0.1Lux (F1.2) |
|
|
B/W : 0.01Lux (F1.2) |
|
|
|
|
|
|
|
|
|
|
|
S / N Ratio |
52dB (AGC off, Weight on) |
|
|
Video Output |
BNC (AHD, CVBS selectable) |
|
|
Resolution |
1920 x 1080 |
|
|
Max. Framerate |
30fps@1080p, 30fps@720p |
|
|
Lens |
|
|
|
Focal Length (Zoom Ratio) |
2.8mm fixed |
|
|
Max. Aperture Ratio |
F1.8 |
|
|
Angular Field of View |
H : 108.7˚ / V : 60.6˚ / D : 125.4˚ |
|
|
Min. Object Distance |
0.2m (0.66ft) |
|
|
Focus Control |
Manual |
|
|
Lens Type |
Fixed |
|
|
Mount Type |
Board-in type |
|
|
Pan / Tilt / RotATe |
|
|
|
Pan / Tilt / Rotate Range |
0° ~ 350° / 0° ~ 67° / 0° ~ 355° |
|
|
Operational |
|
|
|
On Screen Display |
Multi-language Support (16) |
|
|
English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, |
|
|
|
|
Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish |
|
|
|
|
|
|
Camera Title |
Off / On (Displayed 15 characters) |
|
|
Day & Night |
Auto (ICR) / Color / B/W |
|
|
Backlight Compensation |
Off / User BLC / HLC |
|
|
Wide Dynamic Range |
DWDR |
|
|
Digital Noise Reduction |
SSNRIV (Off / On) |
|
|
Defog |
Off / Auto / Manual |
|
|
Motion Detection |
Off / On (4 zones) |
|
|
Privacy Masking |
Off / On (4 zones rectangle) |
|
|
Gain Control |
Off / Low / Middle / High / Very High |
|
|
White Balance |
ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°) |
|
|
Electronic Shutter Speed |
1sec ~ 1/12,000sec |
|
|
Reverse |
Off / H-Rev / V-Rev / HV-Rev |
|
|
Profile |
Basic, Day & Night, Backlight, Indoor, User |
|
|
Remote Control Interface |
Coaxial control |
|
|
Protocol |
AHD : ACP (AHD Coax Protocol) |
|
|
CVBS : Pelco-C (Coaxitron) |
|
|
|
|
|
|
|
|
|
|
|
Video Transmission Distance |
500m (1,640.42ft) (5C2V coaxial cable) |
|
|
Environmental |
|
|
|
Operating Temperature / Humidity |
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
|
|
Electrical |
|
|
|
Input Voltage / Current |
12V DC ±10% |
|
|
Power Consumption |
Max. 2.5W |
|
|
Mechanical |
|
|
|
Color / Material |
Ivory / Plastic |
|
|
Dimensions (WxH) |
Ø110.0 x 86.0mm (Ø4.33" x 3.39") |
|
|
Weight |
231g (0.51 lb) |
|
