Hanwha - SHD-1000F1 - In-ceiling Mount Compatible with QNF-8010/9010, QNF-C9010
Part number:
Price:

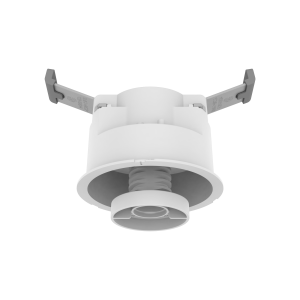

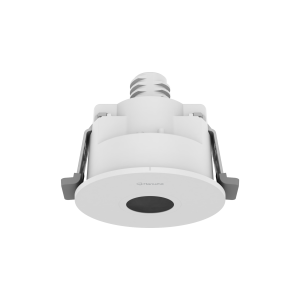

The Hanwha Vision SHD-1000F1 is a specialized in-ceiling mount designed to provide a low-profile, aesthetic installation for specific fisheye and dome cameras. Compatible with QNF-9010, QNF-8010, QNF-C9010.
| Mechanical | |
|---|---|
| Color | White |
| Material | PC (Polycarbonate) |
| RAL code | RAL9003 |
| Product dimensions/weight | ø137x125mm (ø5.39x4.92") / 250g (0.55lb) |
| Tile thickness | 10~60mm (0.4~2.4") |
| Max. load | 1.5kg (3.31lb) *Maximum load of ceiling board: 3kg (6.61lb) |
| Supported products | QNF-9010, QNF-8010 |
Name
Description
Size
Downloads
File
Datasheet
0.5mb
