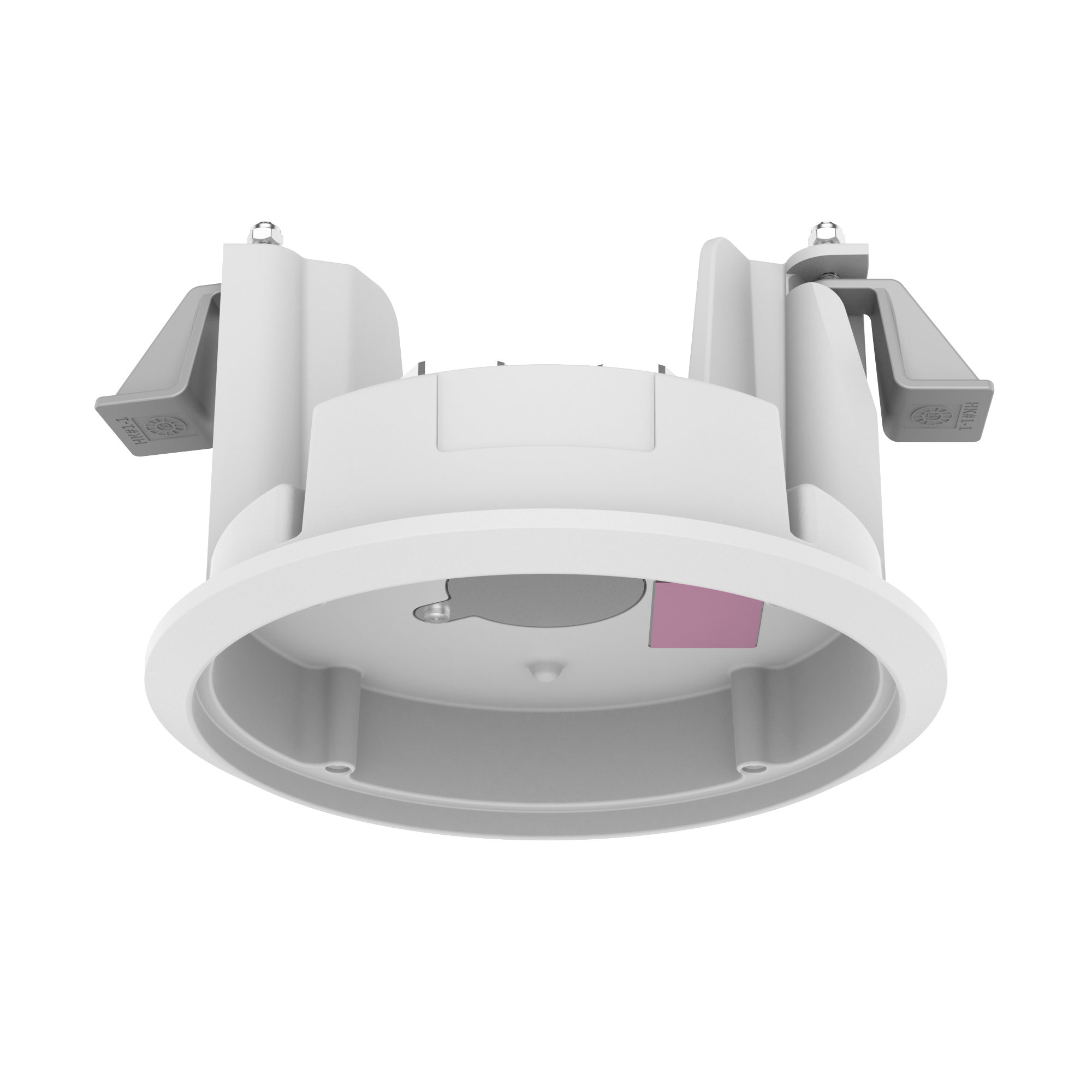

The Hanwha Vision SHD-1372FPW is a heavy-duty, plenum-rated in-ceiling housing designed for a clean, flush-mount appearance.
| Mechanical | |
|---|---|
| Color | White |
| Material | Aluminum |
| RAL code | RAL9003 |
| Product dimensions / weight | ø352x107.4mm (ø13.86x4.23") / 2450g (5.40lb) |
| Tile thickness | 10~70mm (0.4~2.8") |
| Mount Screw size | TR20 |
| Max. load | 5Kg (11.02lb) ※ Maximum load of ceiling board: 11.6kg (25.60lb) |
| Conduit hole | 19.1mm (3/4") (M25), 12.7mm (1/2") (M20) |
| Supported products | PND-A7082RV, PND-A9082RV, PND-A6081R, PND-A9081R, XND-6083RV, XND-8083RV, XND-8093RV, XND-9083RV |
