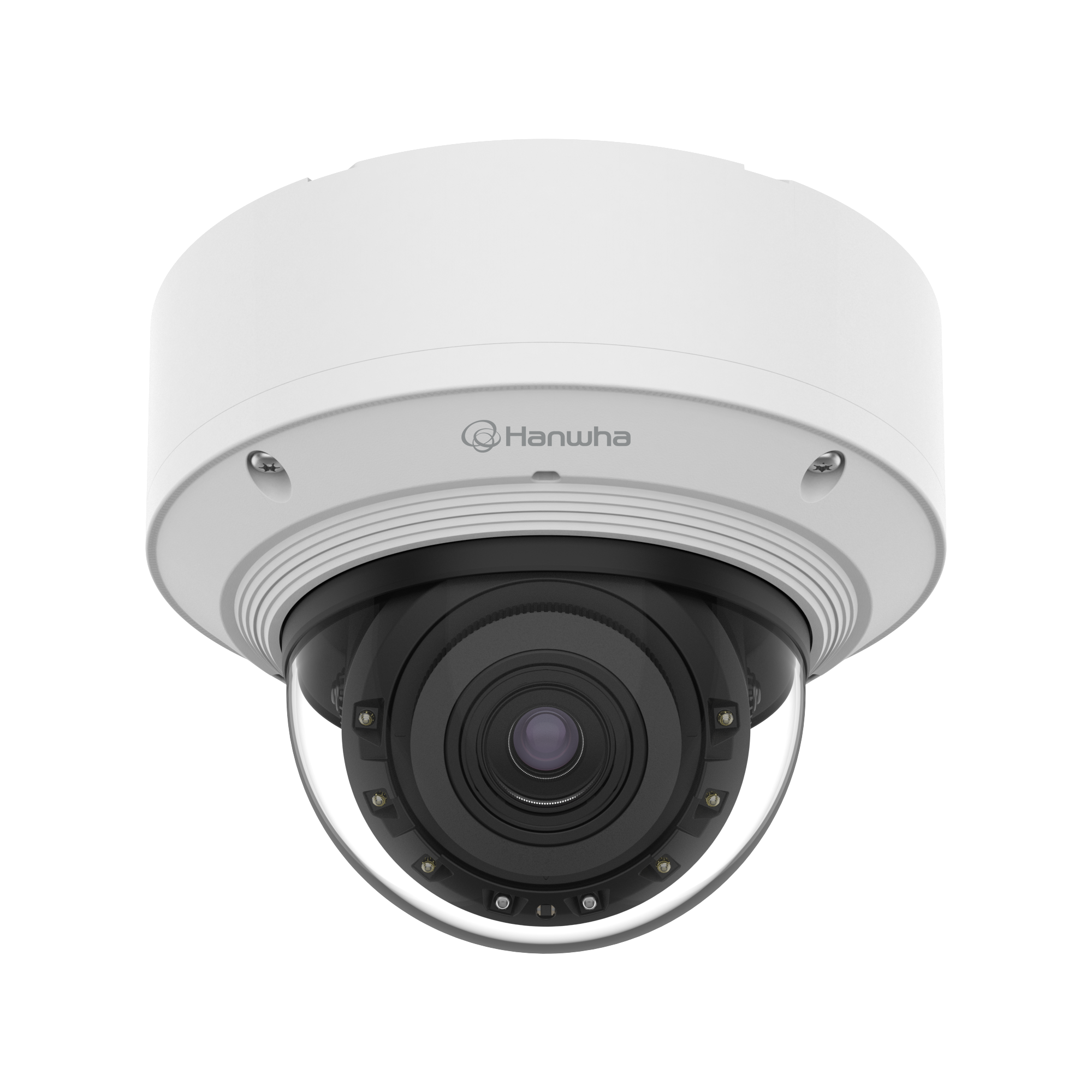

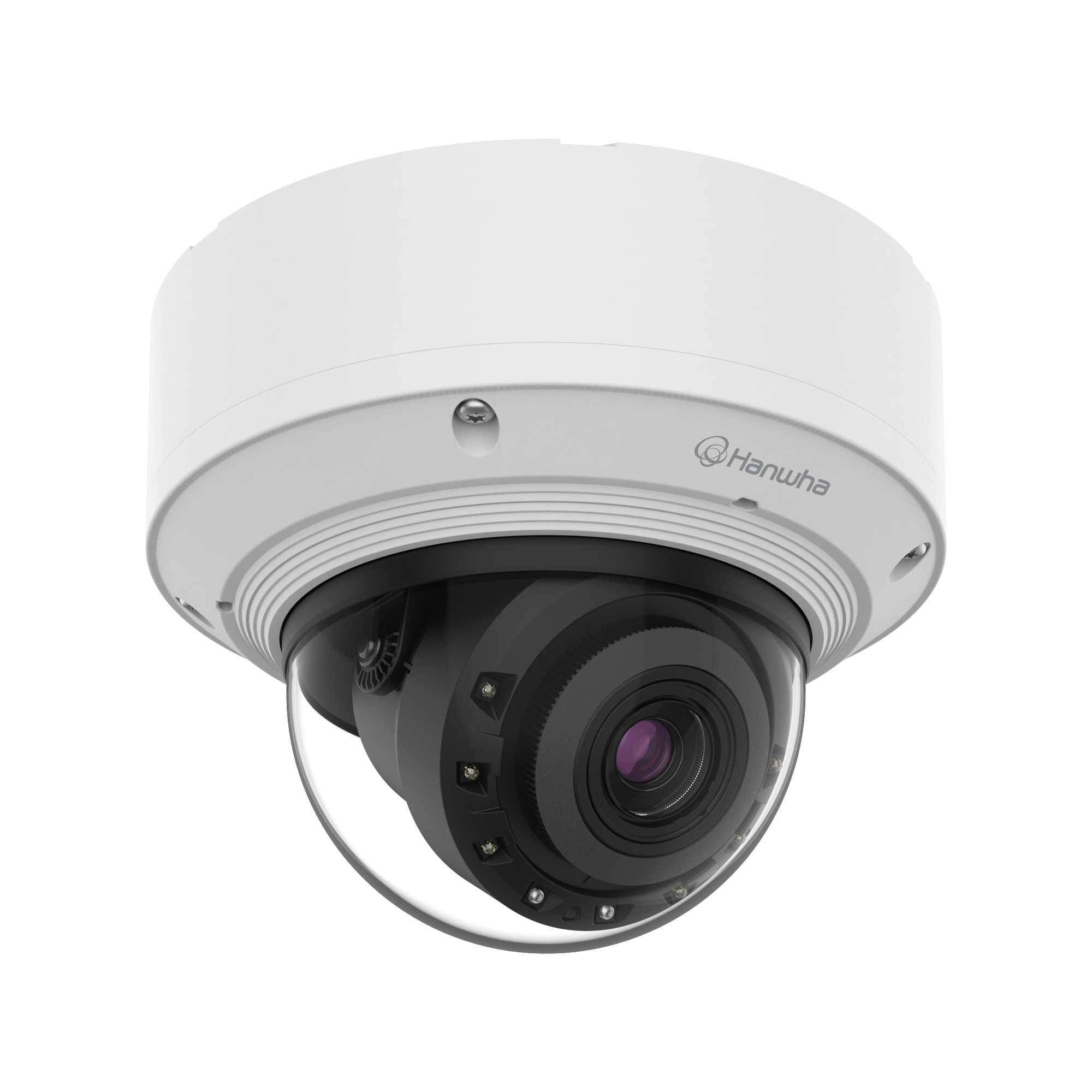

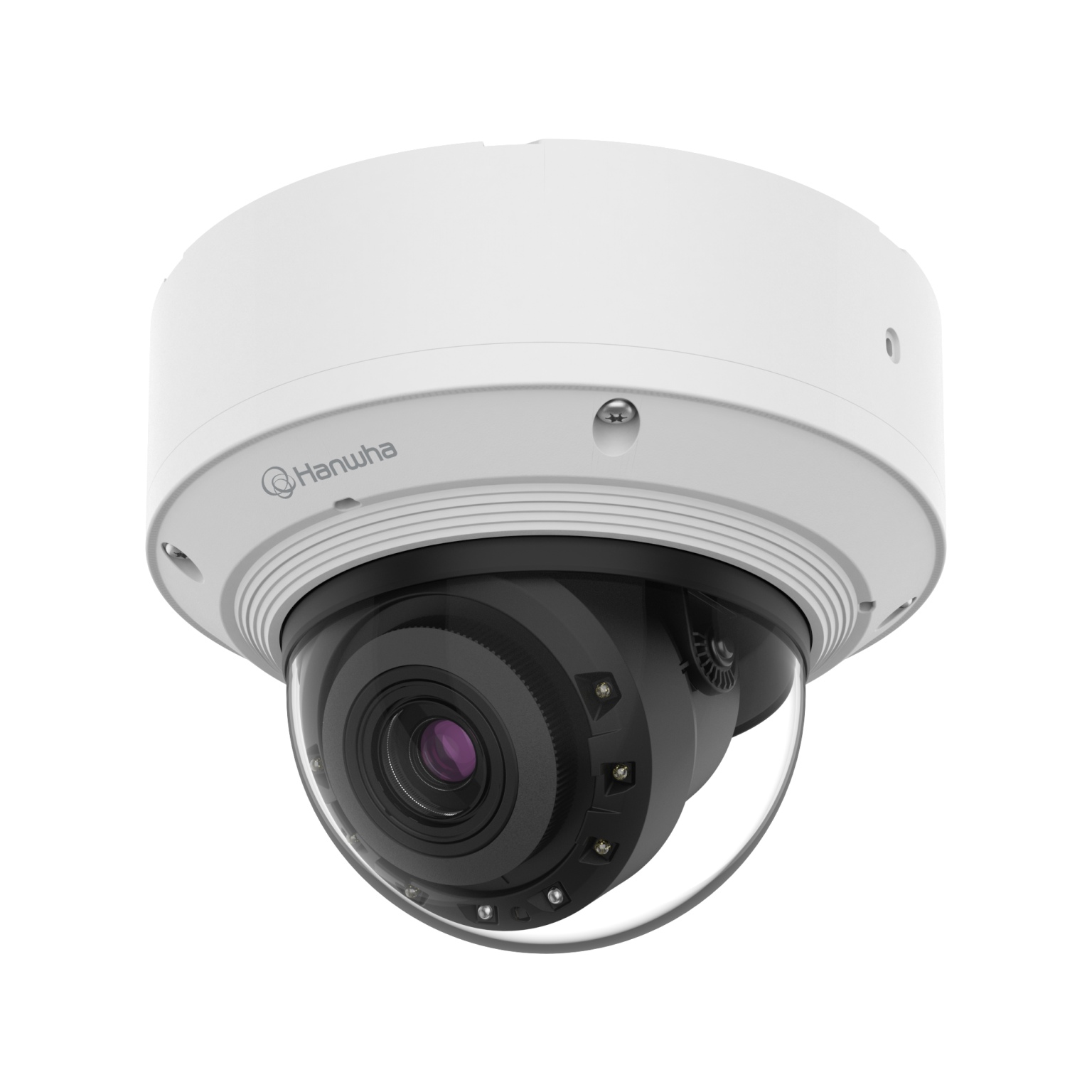

Hanwha - PND-A9082RV - 8MP IR Indoor Vandal Dome AI Camera

Name: Hanwha - PND-A9082RV - 8MP IR Indoor Vandal Dome AI Camera
Brand: Hanwha Vision
SKU: PND-A9082RV

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• Maximum 8MP resolution (1/1.2” sensor)
• 5.9~13.3mm(2.25x) motorized varifocal
• Long-range WiseIR distance up to 60m (196.85ft)
• Analytics events based on an AI engine :
• Object detection (Person/Face/Vehicle/License plate),
• IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion),
• Slip&Fall detection, Face mask detection, Social distancing detection
• Business intelligence based on an AI engine : People/Vehicle/Crowd counting, Queue management, Heatmap
• Support BestShot and full attributes
• Support Dynamic Privacy Masking
• AI-based Image enhancement extremeWDR, WiseNRⅡ(Based on AI engine), WiseStream(Based on AI engine)
• Support Wisepower(Power monitoring)
• Device certificate(Hanwha Vision Root CA), Secure storage(Secure element with FIPS 140-3 level3/CC EAL6+ certified), SBOM
2 SD slots edge storage
• IP52, IK10

Video
Imaging Device Size	1/1.2"
Type	CMOS
Resolution	3840x2160, 3328x1872, 3072x1728, 2688x1512, 2592x1944, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180
Max. Framerate H.265/H.264	30fps/25fps(60Hz/50Hz)
MJPEG	30fps(@8MP Max. 5fps)
Min. Illumination (Lux) Color(1/30sec, 30IRE)	0.015
BW(1/30sec, 30IRE)	0.0015
Video Out	USB: Micro USB Type C
Lens
Focal Length (mm)	5.9~13.3
Zoom Ratio	Optical 2.25x
Max Aperture Ratio (F number)	Wide: 1.5 Tele: 2.9
Angular Field of View	Horizontal: 109°~49° Vertical: 59°~27° Diagonal: 128°~56°
Min. Object Distance	0.8m(2.62ft)
Focus Control	Simple focus
Lens Type	P iris(IR corrected)
Pan / Tilt / Rotate Range	Pan: 0°~360° Tilt: -45°~85° Rotate: 0°~355°
Operational
Day & Night	Auto(ICR)
Backlight Compensation	BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)	120
Digital Noise Reduction	WiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image Stabilization	Support
Defog	Support
Motion Detection Quantity	8ea
Shape	8point Polygonal zones
Privacy Masking Quantity	32ea
Shape	8point Polygonal zones
Color / Option	Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Dynamic Privacy Masking: Color / Option	Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Gain Control	Off, Max gain, Manual
White Balance	ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
LDC	Support(Fill/stretch mode)
Electronic Shutter Mode	Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Speed Range	2~1/30,000sec
Video Rotation	Flip, Mirror, Hallway view(90°/270°)
Alarm Interface In/Out	2 configurable I/O ports
Others	12VDC output
Alarm Triggers	Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Case tampering, Day/Night, Storage disruption
Alarm Events	When Alarm Trigger Occurred File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio In	Selectable(mic in/line in), Built-in 3mics
Audio Out	Line out
Light Type	IR LED
Light Viewable Length	IR WiseIR 60m(196.85ft)
IR Wavelength	850nm
Analytics
Classified Object Type	Person, Face, Vehicle, License plate
Attributes	Person: Upper/Lower clothes color, Gender, Bag Vehicle: Type(car, bus, truck, motorcycle, bicycle), Color Face: Age, Gender, Face mask, Glasses
Thumbnail	BestShot
Analytics Events	Based on AI Engine: Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) Normal: Defocus detection, Tampering, Audio detection, Shock detection
Business Intelligence	Based on AI Engine: People counting, Queue management, Heatmap, Vehicle counting, Crowd counting
Network
Ethernet	Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression	H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression	G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 48kHz(64kbps)
Smart Codec	WiseStream(Based on AI engine)
Bitrate Control	H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming Unicast	Up to 20 users, Multicast Support, Multiple Streaming Up to 5 profiles, 3 virtual channel support
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog
Application Programming Interface	ONVIF S, G, T, M, SUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud Connection	Support
Security
OS / Firmware Protect	Encrypted firmware, Secure boot, Signed firmware
User authentication	Digest authentication, Prevent brute-force attack
Network authentication	IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication	HTTPS, WSS(WebSocket Secure), SRTP
Access Control	IP-based access control, MAC-based access control, Auto logout
Data Protect	Encryption credentials, Encrypt compress for live recording file export
Audit	Access / System / Event Log management
Device ID	Device certificate(Hanwha Vision Root CA)
Secure Storage	SDcard partition encrypt(AES-256), Secure element
Supply Chain Security	SBOM
Security Certificate	Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
General
SoC Type	Wisenet 9
Dual NPU	Support
	Memory RAM	4GB
Flash	8GB eMMC
Edge Storage	Micro SD/SDHC/SDXC Max. 1TB x 2slot (Total 2TB)
Edge Storage(OnCloud)	Micro SD/SDHC/SDXC Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
Environmental & Electrical
Operating Condition	Temperature: -25°C~+50°C(-13°F~+122°F) Humidity: 0~100% RH(condensing) Others: Humidity control with AIR vent
Storage Condition	Temperature: -50°C~+60°C(-58°F~+140°F) Humidity: 0~90% RH(non-condensing)
EPA(Effective Projected Area)	0.0148㎡
Input Voltage	PoE+(IEEE802.3at, Class4), 12VDC
Power Consumption	PoE: Max. 19.2W, typical 11.0W 12VDC: Max. 16.5W, typical 9.5W
Wisepower	Power monitoring
Mechanical
Color	White
Material	Aluminum, Hard-coated dome
RAL Code	RAL9003
Product Dimensions	ø160x125mm(ø6.30x4.92")
Product Weight	1550g(3.42lb)
Compatible Conduit Hole	12.7mm(1/2")(M20)
Compatible Gang Box	Single, Double, 4" Octagon, Square
Certifications & Standards
EMC	FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Safety	UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environment	IEC/EN 63000, IEC 60529 IP52, IEC 62262 IK10, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
DORI (EN62676-4 standard)
Detect (25PPM/8PPF)	Wide: 54.8m(179.73ft) Tele: 168.5m(552.89ft)
Observe (63PPM/19PPF)	Wide: 21.9m(71.89ft) Tele: 67.4m(221.16ft)
Recognize (125PPM/38PPF)	Wide: 11.0m(35.95ft) Tele: 33.7m(110.58ft)
Identify (250PPM/76PPF)	Wide: 5.5m(17.97ft) Tele: 16.9m(55.29ft)

Name

Description

Size

Downloads

File

Datasheet

0.7mb

File

A&E Specification

0mb

The Hanwha Vision PND-A9082RV is an 8MP AI indoor dome camera featuring a large 1/1.2" sensor and maximum 8MP resolution. It includes a 5.9~13.3mm motorized varifocal lens with long-range WiseIR up to 60m. AI-based analytics include object detection, IVA, slip&fall detection, face mask detection, and social distancing detection. Business intelligence features include people/vehicle/crowd counting, queue management, and a heatmap. The camera supports BestShot with full attributes, dynamic privacy masking, and AI-based image enhancement, including extremeWDR, WiseNR II, and WiseStream. Security features include device certificate, secure storage (FIPS 140-3 level 3/CC EAL6+ certified secure element), and SBOM. Edge storage is provided via two SD card slots. The camera is rated IP52 for dust resistance and IK10 for vandal resistance.
