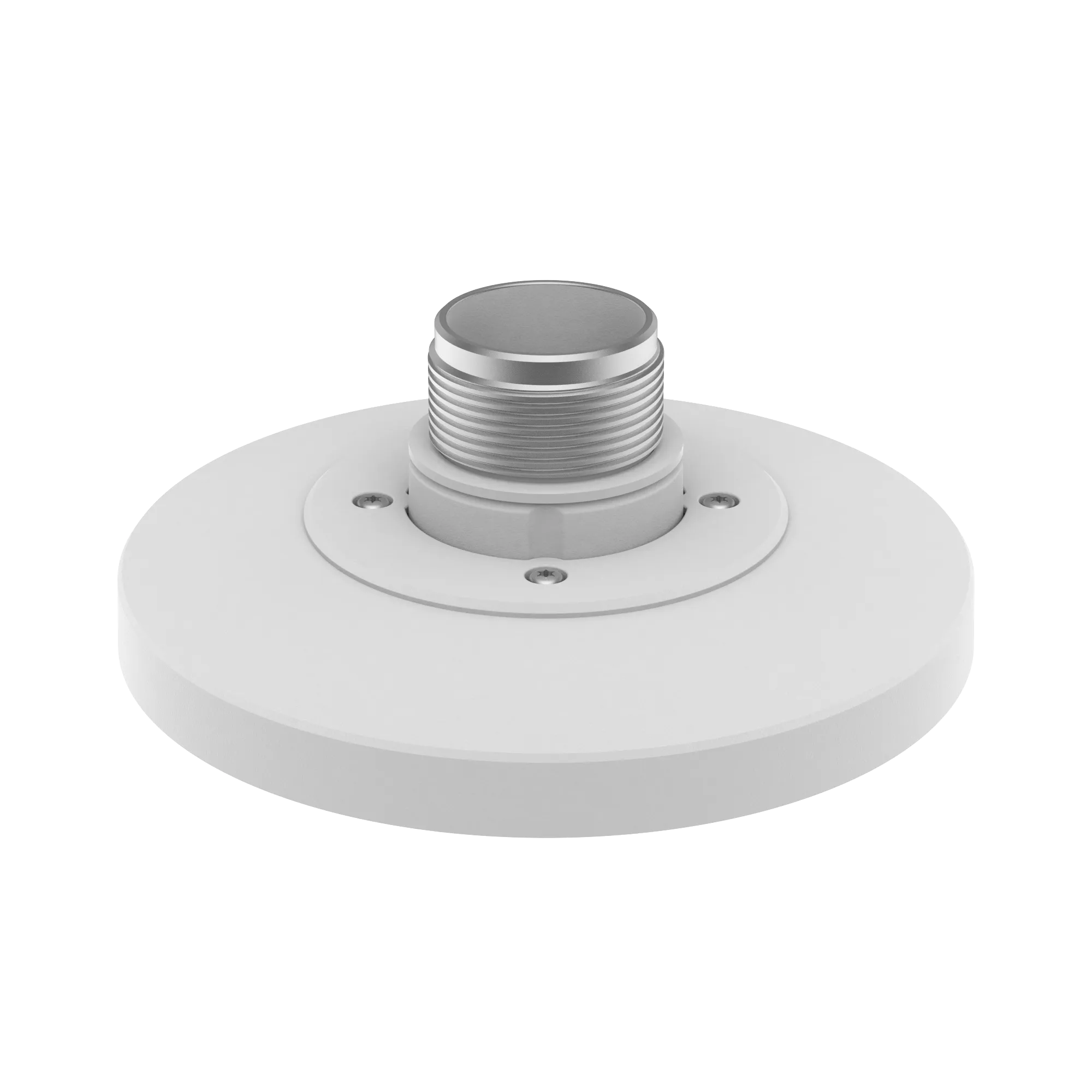

Hanwha - SBP-160HMW1 - White Cap Adapter
Part number:
SBP-160HMW1
Price:
Hanging cap compatible with: XNF-9010RV / 9010RVM, XND-9082RV / 8082RV, XND- 6081V / 6081VZ / 6081RV / 6081REV, XND-8081RV / 8081REV, PND-A9081RV, PND-A6081RV, XND-6083RV / C7083RV / 8081VZ / 8083RV / C8083RV / 8093RV / 9083RV / C9083RV, XNV-C6083R / C7083R / C8083R / C9083R, TNF-9010, white color.
Features:
- Mount thread size : PF 1 1/2" Male
- Aluminum, White
- Mount screw size : TR20
- Replacement for SBP-167HMW
| Color | White | |
| Material | Core : Aluminum / Cap : Plastic | |
| RAL code | RAL9003 | |
| Product dimensions / weight | Φ175x67mm(Φ6.89x2.64"), 320g(0.71lb) | |
| Mount Screw size | TR20 | |
| Supported products | XND-C6083RV/7083RV/8083RV/9083RV, XND-6083RV/8083RV/8093RV/9083RV, PND-A6081RV/9081RV, XNV-C6083R/7083R/8083R/9083R, XNF-9013RV/9010RV, XND-8082RV/9082RV | |
Name
Description
Size
Downloads
File
Datasheet
0.7mb
File
Manual
1.8mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.8mb
