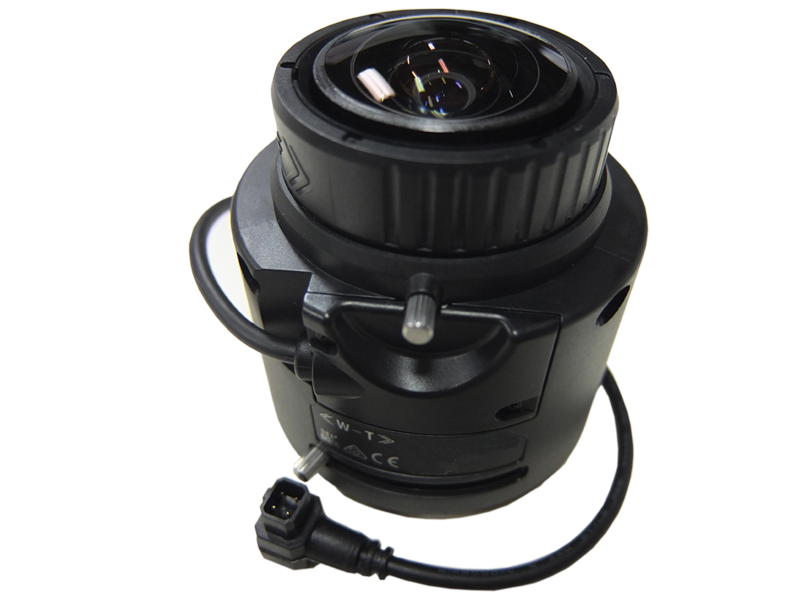

High image-quality monitoring with optical performance supporting 6 megapixels. Advanced design engineering and special optic glass adopted, best suited for color, Black & White, and Day and Night cameras. With F1.6 stop SLA-F-M419DN provides exceptional low light performance up to 100 ° horizontal view angle at widest focus, making multi-megapixel cameras the best use for 24/7 security job.
Features:
- Design for 6MP CS mount surveillance box camera
- Superior low light performance
- 4.1-9mm /F1.6
- IR Corrected
- DC Auto Iris
| Description | 6 Megapixel Resolution 1/1.8" Format Day/Night Camera |
| Focal length | 4.1mm ~ 9mm |
| Max. Relative Aperture | 1 : 1.6 |
| Iris Range | F1.6 - T360 (Equivalent to F360) |
| Image Size | 8.9mm (7.1mm x 5.3mm) |
| Back Focal Length | 12.72mm (w) - 19.94mm (t) (in air) |
| Flnage Focal Length | 12.5mm (in air) |
| Focus Range | ∞ - 0.3mm (from Front of Lens) |
FIELD ANGLE
| Horizontal | Wide: 100° 1' , Tele: 45°17' |
| Vertical | Wide: 74° 21' , Tele: 33°59' |
| Diagonal | Wide: 126°31' , Tele: 56°31' |
FIELD ANGLE AT M.O.D
| Horizontal | Wide: 752mm , Tele: 263mm |
| Vertical | Wide: 478mm , Tele: 193mm |
CLEAR APERTURE
| Front | ø 31.4mm |
| Rear | ø9.5mm |
| Exit Pupil Position | -70.16mm (w) -34.36mm (t) (from image plane) |
CONTROL
| Zoom | Manual (Op. Angle 60°) |
| Focus | Manual (Op. Angle 180°) |
| Mount | CS-Mount |
| Mass | Approximately 4.76 oz (135 g) |
