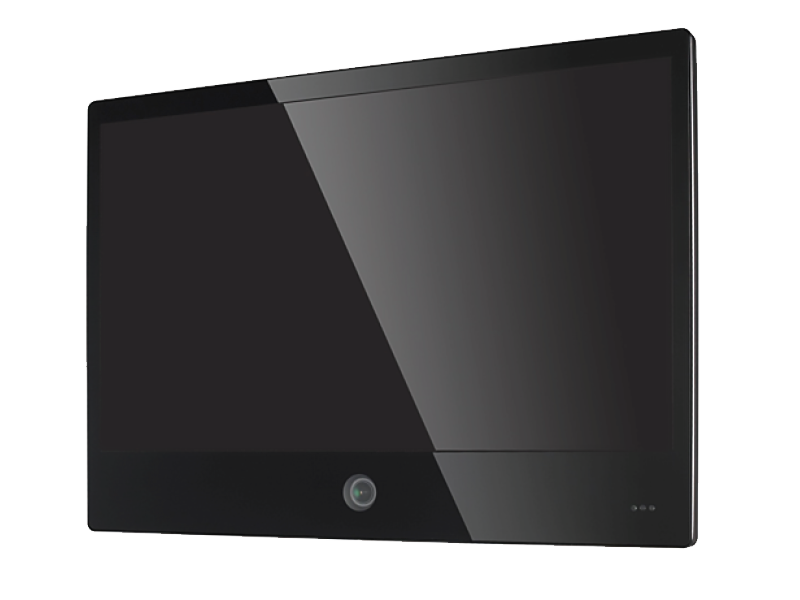

Hanwha - SMT-3211PVM-PIP - 32″ Public View Monitor With 2 Megapixel Camera and Picture-in-Picture Display
Hanwha - SMT-3211PVM-PIP - 32″ Public View Monitor With 2 Megapixel Camera and Picture-in-Picture Display
Hanwha - SMT-3211PVM-PIP - 32″ Public View Monitor With 2 Megapixel Camera and Picture-in-Picture Display

Hanwha - SMT-3211PVM-PIP - 32″ Public View Monitor With 2 Megapixel Camera and Picture-in-Picture Display

Part number:
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

• 32? LED 1080p resolution monitor and camera
• Latency-free viewing
• Inconspicuous integrated camera
• Face Detection display for visual deterrent (Colored bounding box around detected face)
• Wide Dynamic Range (150dB)
• Advanced video analytics, motion detection
• Picture-in-Picture display
• Customizable text overlay with pre-configured "Recording in progress" OSD
• Internally powered Camera
• Micro SD/SDHC/SDXC memory slot (256GB)
• H.265, H.264, MJPEG triple codec, Multiple streaming
• Additional HDMI and VGA input
• IP video and network manageable
• Multi-crop streaming
• Glare reduction coating glass

Integrated Camera
Resolution2MP (1080p Full HD)
Lens4.6mm fixed lens (73.8° Horizontal FOV)
Wide Dynamic Range150dB
Video CompressionH.265, H.264, MJPEG
Display
Screen Size32" LED
Resolution1920 x 1080 (Full HD)
Brightness300 Nit
Contrast Ratio1,200:1
Response Time8ms
Key Features
FeaturesPicture-in-Picture (PIP) display
Face Detection with on-screen bounding box
Advanced video analytics & motion detection
Customizable text overlay (e.g., "Recording in progress")
Latency-free viewing
Inputs / Outputs
Video2x HDMI, VGA
NetworkRJ-45 (10/100BASE-T)
AudioBi-directional audio support
StorageMicro SD/SDHC/SDXC slot (up to 256GB)
Audio
Built-in Speakers2 speakers
Physical Specifications
Dimensions (H x W x D)514 x 765 x 59 mm (20.3" x 30.1" x 2.3")
Weight30 lbs (approx. 13.6 kg)
VESA Mount100 x 100mm / 200 x 100mm
Power & Environment
Power Consumption55W max
Input Voltage24V DC
Operating Temperature0°C to 40°C (32°F to 104°F)
Name
Description
Size
Downloads
File
smt-3211pvm_3211pvm-pip_datasheet_1.pdf
0.6mb
File
es-smt-3211pvm_3211pvm-pip.pdf
0.7mb
File
pt-smt-3211pvm_3211pvm-pip.pdf
0.6mb
