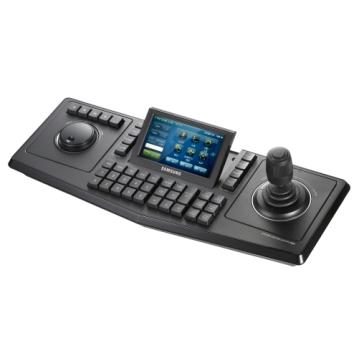

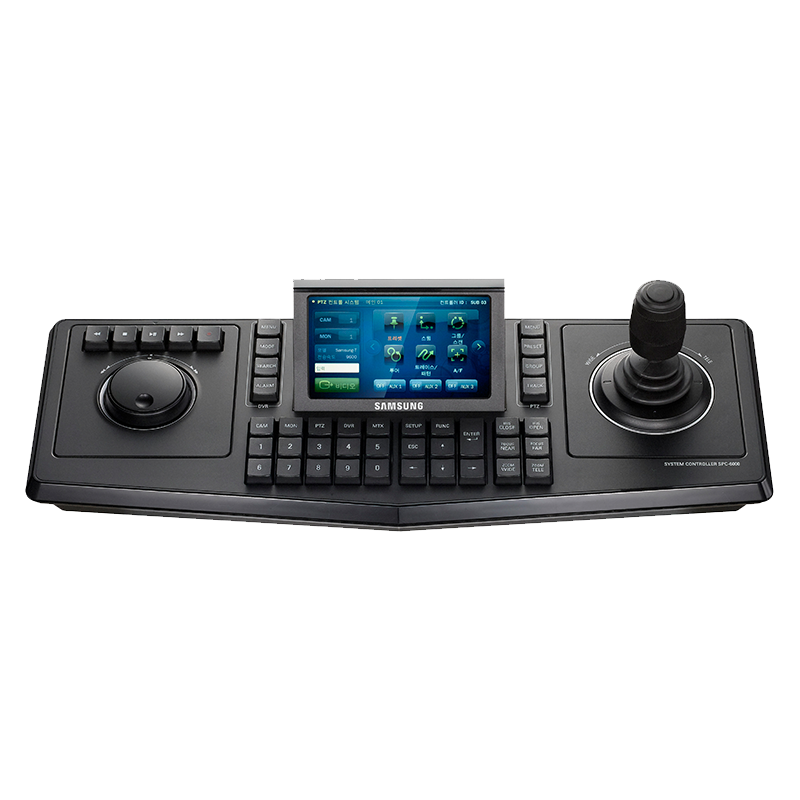

SPC-6000
5" TFT Touch LCD System Control Keyboard
- 5" TFT touch LCD
- Control PTZ dome cameras, DVRs and matrix switchers
- Centralized control up to 255 units with a single controller
- Connect to a system up to 16 controllers
- Ergonomic design and easy-to-use keypad
Part number:
SPC-6000
Price:
Communication
| Interface | RS-485/422 (Operating distance 1km), TTL (Matrix |
| Data Port |
8-pin RJ-45 connector (Female) (RS-485 serial port) BNC (Video input, Loop through), USB 2.0 (F/W updatable) |
| Baud Rate | 2,400 ~ 38,400bps |
| Control Unit | 255unit (PTZ / DVR / MATRIX / RECEIVER) |
| Protocol |
PTZ: SRD, SVR, SRP, Pelco-D/P, Panasonic, Vicon, AD, Honeywell, ELMO, Bosch, GE DVR: Samsung-T/E Matrix: SMX-25632 Receiver: Samsung-T |
Operational
| LCD Display | 5" TFT touch LCD |
| Joystick |
3 Axis twist zoom |
| Jog Shuttle | DVR playback control |
| On Screen Display | English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese |
Environmental
| Operating Temperature | 0°C ~ 40°C |
| Operating Humidity |
10 ~ 70% (Non-condensing) |
Electrical
| Input Voltage / Current | 12V DC / 4A |
| Power Consumption |
Max. 4W |
