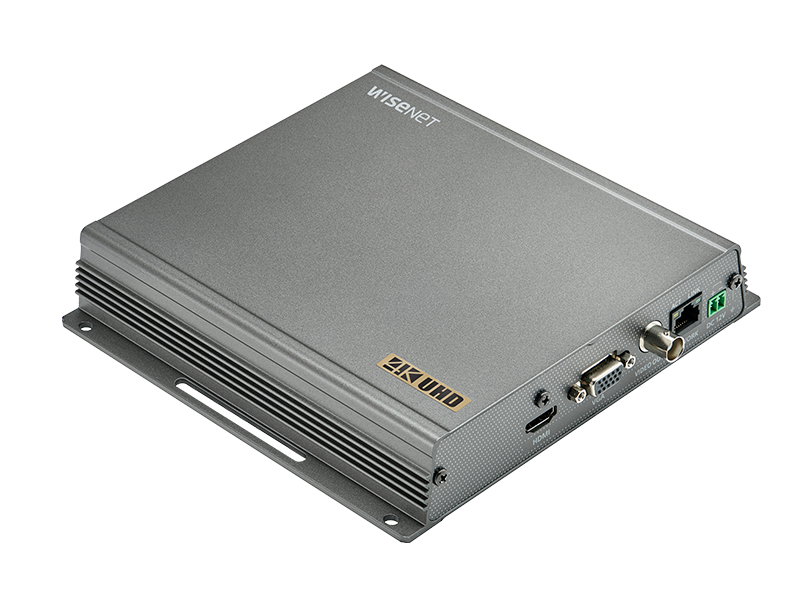

Hanwha - SPD-150 - 49 Channel Decoder
Part number:
SPD-150
Price:
Decoder, 49CH on 3 different monitors: HDMI 36/32 channel max, VGA 16 channel max, BNC 1 channel, H.265, H.264, MJPEG, ONVIF support, decode up to 12MP, PoE or 12VDC powered.
Features:
- Video decoding up to 48 cameras on HDMI / VGA
- 1 camera decoding on BNC
- Clone & Expand mode support (HDMI, VGA)
- Maximum 4K resolution@HDMI, 1080p@VGA
- Decode @12MP, 8MP, 5MP, 3MP, 1080p, 720p, 4CIF
- H.265, H.264, MJPEG codec support
- Various view mode, Hallway View
- (HDMI) 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 36 (32) / 2V / 3V
- (VGA) 1 / 4 / 6 / 8 / 9 / 13 / 16 / 2V / 3V
- Up to 20 layouts and sequence
- Management using local UI & USB mouse
- Configuration export / import. Upgrade using USB
| SPD-150 | ||
| NETWORK | ||
| Operating System | Embedded Linux | |
| Output | HDMI | 1ea (up to 4K) |
| VGA | 1ea (up to 1080p) | |
| CVBS | 1ea (704 x 480 (30fps), 704 x 576 (25fps)) | |
| External | Ethernet | 1ea (10/100/1000 BASE-T) |
| USB | USB 2.0 2ea | |
| AudioOut | 1 out | |
| ENVIRONMENTAL | ||
| OperatingTemperature / Humidity | 0°C ~ +40C (+32°F ~ +104°F)/ 20% ~ 85% RH | |
| ELECTRICAL | ||
| InputVoltage / Current | 12V DC, PoE (IEEE802.3af) | |
| Power Consumption | Max. 8.4W (12V DC), Max. 8.4W (PoE) | |
| MECHANICAL | ||
| Color/ Material | Dark Gray / Metal | |
| Dimensions(WxHxD) | 178.0 x 34.0 x 187.8mm (7.01" x 1.34" x 7.39") | |
| Weight | Approx. 0.68Kg (1.50 lb) | |
Name
Description
Size
Downloads
File
Datasheet
1.1mb
File
A&E Specifications
0.1mb
