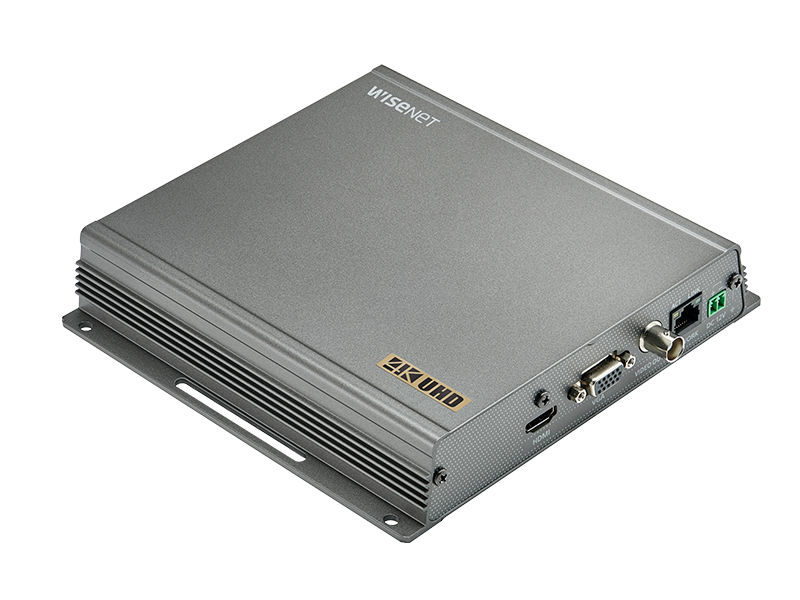

Hanwha - SPD-151 - 49-Channel Network Video Decoder
Part number:
SPD-151
Price:
Decoder, 49CH on 3 different monitors: HDMI 36/32 channel max, VGA 16 channel max, BNC 1 channel, H.265, H.264, MJPEG, ONVIF support, decode up to 12MP, PoE or 12VDC powered. Tile merge support.
Features:
- Video decoding up to 48 cameras on HDMI / VGA
- 1 camera decoding on BNC
- Clone & Expand mode support (HDMI, VGA)
- Maximum 4K resolution@HDMI, 1080p@VGA
- Tile merge function
- Decode @12MP, 8MP, 5MP, 3MP, 1080p, 720p, 4CIF
- H.265, H.264, MJPEG codec support
- Various view mode, Hallway View
- (HDMI) 1 / 4 / 6 / 8 / 9 / 13 / 16 / 25 / 36 (32) / 2V / 3V
- (VGA) 1 / 4 / 6 / 8 / 9 / 13 / 16 / 2V / 3V
- Up to 20 layouts and sequence
- Management using web interface
| SPD-151 | ||
| NETWORK | ||
| CPU | Embedded CPU | |
| Operating System | Embedded Linux | |
| Output | HDMI | 1ea (up-to 4K) |
| VGA | 1ea (up-to 1080p) | |
| CVBS | 1ch (BNC 1ea) | |
| Video-out Format | 3840 X 2160@60HZ/30HZ (HDMI1), 2560 X 1440@60HZ/30HZ (HDMI1), 1920 X 1080@60HZ, 1280 X 1024@60H, 1280 X 720@60Hz | |
| External | Ethernet | 1ea (10/100/1000BASE-T) |
| USB | USB 2.0 2ea | |
| Audio Out | 1 out | |
| LED | Power, Network | |
| ENVIRONMENTAL | ||
| Operating Temperature | 0°C ~ +40C (+32°F ~ +104°F) | |
| Humidity | 20% ~ 85% RH | |
| ELECTRICAL | ||
| Power | 12V DC, PoE (IEEE802.3af) | |
| Power Consumption | Maximum 8.4W (12V DC), Maximum 8.4W (PoE) | |
| MECHANICAL | ||
| Color / Material | Dark Gray / Metal | |
| Dimension (WxHxD) | 178.0 x 34.0 x 187.8mm (7.01" x 1.34" x 7.39") | |
| Weight | Approximately 0.68Kg (1.50 lb) | |
| SOFTWARE | ||
| Video | Codec | H.265/H.264/MJPEG |
| Max. Decoding Performance | 16 X 2M (1080P)@30fp, 8MP@30fps | |
| Max. Decoding Resolution | Up-to 12MP | |
| Max. Decoding Bandwidth | 200Mbps | |
| Division (/Monitor) | (HDMI) 1/2x2/3x3/4x4/5x5/6x6(32Ch Only) (VGA) 1/2x2/3x3/4x4 (BNC) 1 | |
| Layout | Up-to 20ea/monitor, Sequence support | |
| Merge | Monitor Merge | 1x2, 2x1 |
| Tile Merge | Support | |
| Audio | Codec | G.711/G.726/AAC |
| Management | Web-Viewer, SSM | |
| Time Setting | NTP / Manual | |
| Export / Import | Configuration Export/Import | |
| Log | Maximum 20000 (System log, Event log each) | |
| Protocol | SUNAPI 2.3 or later | |
