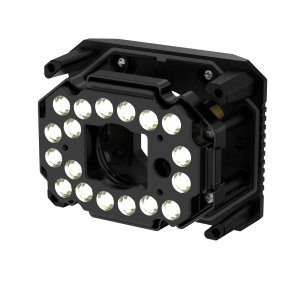

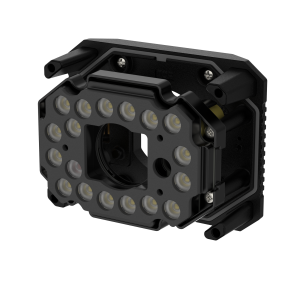

Hanwha - SPI-BWM0 - LED Module For 12mm Lens
Part number:
Price:
• White LED Module for 3MP BCR Camera
• Power Consumption: 6.9 W
• LED Color: White
• LED Quantity: 16EA
• IP66/IP67(camera and front cover must be assembled)
• Operating Temperature / Humidity: -40°C~+55°C / 0~95% RH
• Compatible Camera: TNS-7000M
• Compatible Lens: SLM-5M12
| Environmental | |
|---|---|
| Operating Temperature / Humidity | -40°C~+55°C (TBD) / 0~95% RH |
| Storage Temperature / Humidity | -40°C ~ +60°C (TBD) / Less than 95% RH |
| Certification | FCC, UL, CE, KC, IEC 62471, IP66/IP67 (camera and front cover must be assembled) |
| Electrical | |
| Input Voltage | 24 VDC ± 10% |
| Power Consumption | 6.9W |
| Mechanical | |
| Product dimensions / weight | W101.2mm x D53.8mm x H78.2mm / 200g |
| Supported products | TNS-7000M |
| LED | |
| Color Temperature | 6,500 K ± 10% |
| Quantity | 16EA |
| Angle | FWHM : 25° 10-% : 46° |
