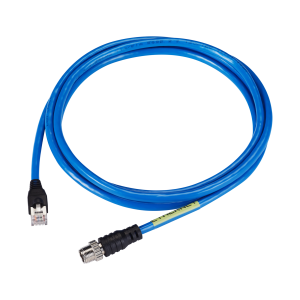

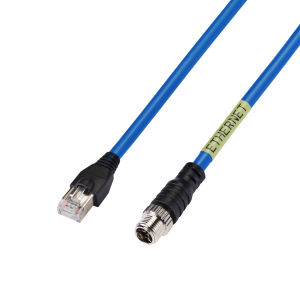

• M12-RJ45 Ethernet cable
• Length: 2M (6.6ft)
• Color: Blue
• Material: PVC/PE
• Protect against dust, moisture and vibration
| CONNECTIONS | |
|---|---|
| Type | CAT6, X-coded |
| Camera End | M12, Male |
| System End | RJ45, MT 8P8C MALE |
| Contact Plating | Gold |
| Connector Type | M12 8PIN X-CODE |
| Wiring Configuration | EIA/TIA 568B |
| PHYSICAL | |
| Cable Jacket Color | Blue |
| Cable Jacket Material | PVC/PE |
| Cable Jacket Rating | CMR-LP |
| Cable Shielding | S/D1 ; al 125% coverage, s/d2 : braid 65%~70% coverage |
| Cable Outer Diameter | 6.5mm |
| Number of Conductors | 4 Pair |
| Conductor Material | Bare copper 4*2*7*0.20mm |
| Conductor Gauge | AWG24 |
| Wire Gauge (AWG) | 4*2*7*0.20mm cat6 S/FTP |
| Cable Length | 2M(6.6ft) |
| ENVIRONMENTAL | |
| Operating Temperature Range | -10° to 50°C |
| Storage Temperature Range | -20° to 70°C |
| Operating Humidity Range | 0% to 90% RH, Non-Condensing |
| Storage Humidity Range | 0% to 90% RH, Non-Condensing |
| Power Provided to Connected Device | 51W (60W @ SOURCE, 51W @ DEVICE) |
| COMMUNICATIONS | |
| Bandwidth per TIA Standard | 250Mhz |
| Maximum Bandwidth as Tested | 500Mhz |
| Network Compatibility | 1 Gbps |
| IEEE Standards Supported | 802.3bt |
| FEATURES & SPECIFICATIONS | |
| IP68 Rated | yes |
| Snagless Connector | yes |
| STANDARDS & COMPLIANCE | |
| Protection Rating | IP68 |
| Product Certifications | UL Listed |
| Product Compliance | CE, RoHS, IEEE 802.3bt PoE++, REACH, UKCA, Trade Agreements Act (TAA) |
| WARRANTY & SUPPORT | |
| Product Warranty Period | Lifetime limited warranty |
