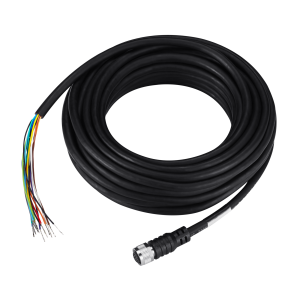

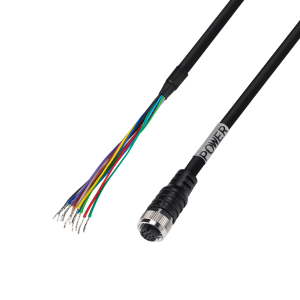

• M12 Power Cable
• Color: Black
• Material: Plastic, PBT GF / (Seal) Plastic, FPM/FKM
• Protect against dust, moisture and vibration
• Length: 10M (32.8ft
| Cable | |
|---|---|
| Connector(Camera) | Female, M12, Straight, L-coded |
| Number of Pins | 12 |
| Contacts | BRASS, Gold-plated |
| Contact Carriers | Plastic, PBT GF, Black |
| Connector Body | PA66 |
| Coupling Nut/Screw | Brass, CuZn, Nickel-plated |
| Seal | Plastic, FPM/FKM |
| Tightning Torque (Range) | 0.5~0.6Nm (observe max. torque of mating connector) |
| Mechanical Lifespan | >100 Mating cycles |
| Pollution Degree | Black TPU |
| Material-Coupling Nut/Screw | 3 |
| Protection Class | IP67 |
| Cable Diameter | ø6.8mm±0.20 |
| Cable Length | 10M(32.8ft) |
| Cable Jacket | PVC BLK |
| Core Insulation | PVC |
| Core Cross-section | 5x1.5㎟ |
| Core Colors | ORG, BRN, BLU/BLK, GRN/BLK, BLK, RED, VIO, GRY, WHT, GRN, BLU, YEL |
| Rated Voltage | 50VAC/60VAC/80°C 300V |
| Current | 4.6A |
| Bending Radius | Stationary Installation ≥4xø Flexible Use ≥7xø |
| Bending Cycles | ≥10 million |
| Admissible Acceleration | max. 5㎨ |
| Admissible Travel Path, horizontal | 5m (at 5㎨) |
| Torsional Stress | ±30°/m |
| Ambient Temperature Fixed | -20°C~+80°C |
| Mobile | -20°C~+80°C |
| Drag Chain | -20°C~+60°C |
| Qualified for Drag Chain Use | Yes |
| Halogen-free | Yes |
| Oil-resistant | Yes |
| Flame-retardant | Yes |
| Approvals | UL |
