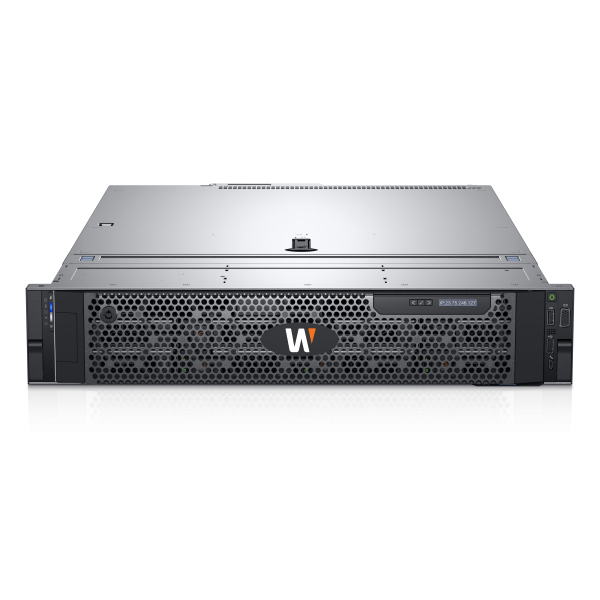

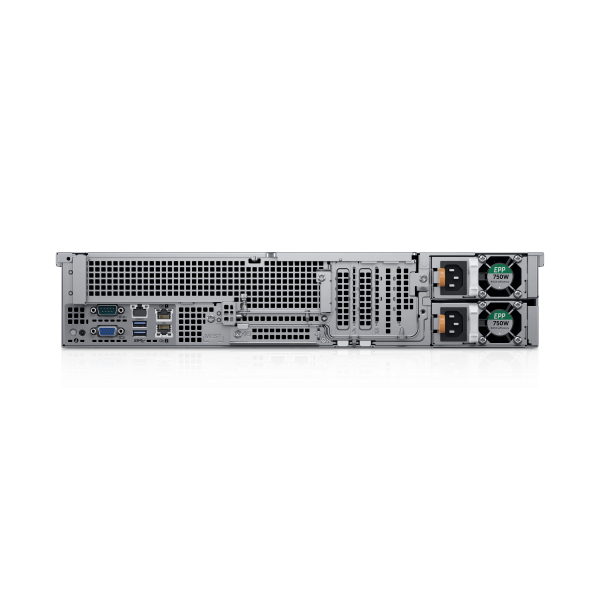

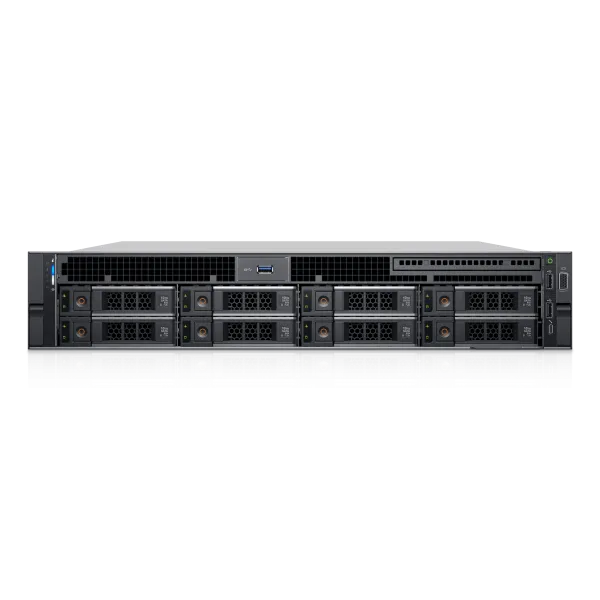

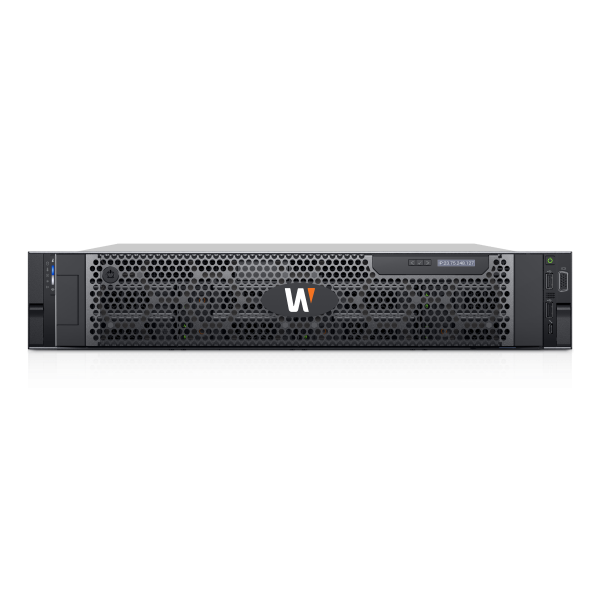

Hanwha - WRR-Q-A200W-72TB - Wisenet WAVE optimized 2U rack server with 72TB HDD
Part number:
WRR-Q-A200W-72TB
Price:

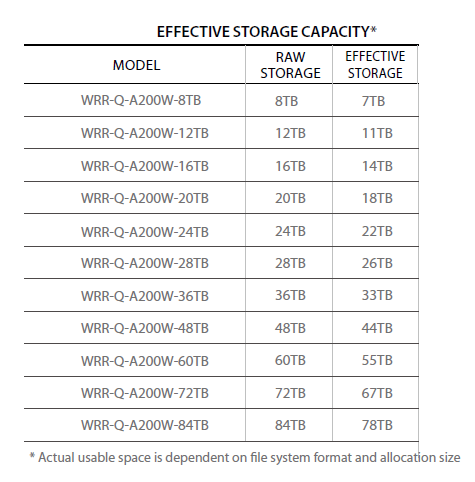

2U Wisenet WAVE Network Video Recorder with 4 Professional licenses, Wisenet WAVE pre-installed, 72TB raw (67TB usable after disk formatting & JBOD configuration), 470 Mbps recording B/W, 8 HDD Bay (3.5" with up to 7 hot plug storage drives), AMD EPYC, 8GB RAM, 480GB SSD OS drive, Windows 10 IoT Enterprise, Nvidia GPU, MiniDP output, VGA output, Dual GbE NICs, IPMI, 750W power supply, Keyboard and mouse included, Rail kit included
Features:
- Preloaded and configured with Wisenet WAVE video management system
- 470 Mbps of recording throughput
- Up to 84TB of Raw Storage
- SSD & 24/7 Duty Cycle SATA Drives
- Dedicated GPU for client application
- IPMI Management
- Includes USB mouse and keyboard
- Includes Sliding Rack Rail with Cable Management Arm
- 3-Year, On-site, Next Business Day, Keep Your Hard Drive Warranty
- Supports Wisenet and ONVIF conformant IP cameras
- Powered by Microsoft Windows 10 IoT Enterprise
| SYSTEM | ||
| Video Management Software | Wisenet WAVE | |
| Recording Bandwidth | Up to 470 Mbps | |
| OS Drive Bays | 1 x 480GB SSD | |
| OS / Data Drive Bays | 7 x 3.5" Hot Swappable Bays for Storage | |
| Data Storage | Up to 84TB raw storage | |
| Pre-loaded Licenses | 4 x Wisenet WAVE Professional license | |
| Network Interface | 2 x RJ45 Gigabit Ethernet | |
| Processor | 1 x AMD® EPYC® Processor | |
| Memory | 8GB, 1 x 8GB DDR4 | |
| Operating System | Windows 10 IoT Enterprise | |
| Video Outputs | NVIDIA Quadro P400 3x MiniDisplay Port, 1 x VGA (Front), 1 x VGA (Rear) | |
| USB Ports | 2 x USB 3.0 (Rear), 2 x USB 2.0 (Front), 1 x USB 3.0 (Internal) | |
| Other Ports | Serial | |
| Keyboard & Mouse | Included | |
| Sliding Rail Kit | Included, with Cable Management Arm | |
Name
Description
Size
Downloads
File
WAVE Server Quick Start Guide
1.7mb
File
Hanwha Techwin America - NDAA Compliant Product List 5-2022
0.5mb
