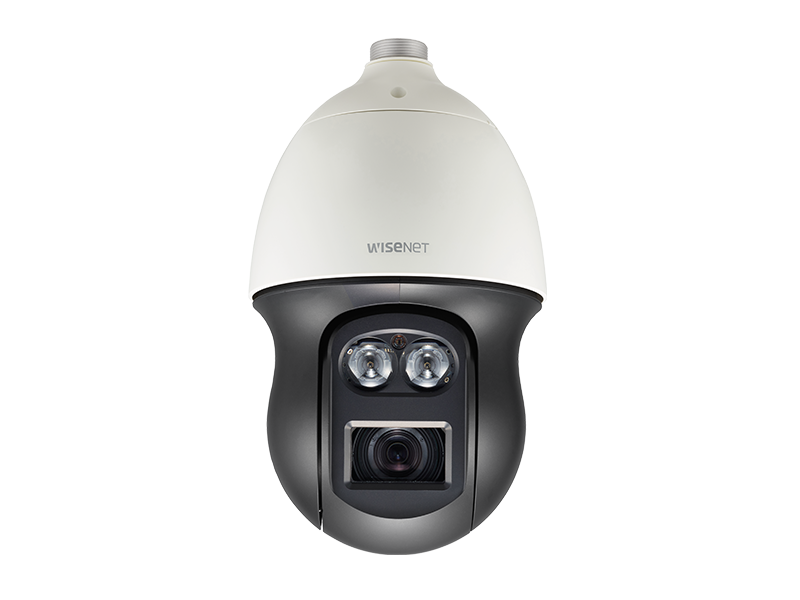

Samsung - XNP-6370RH - 2MP IR 37x PTZ
WiseNet X, network IR PTZ camera with 1/1.9" sensor, IR range for up to 1148', 2MP, Full HD(1080p) @60fps WDR off or @15fps WDR on, H.265/H.264/MJPEG, 37x optical zoom, 120dB WDR, Auto Tracking, true D/N, 24VAC, IP66, IK10, Built-in -58°F (-50°C) Heater, Analytics
- 16 : 9 Full HD (1080p) resolution support
- 6 ~ 222mm (37x), 16x digital zoom
- H.265, H.264, MJPEG codec
- Multiple streaming, WiseStream support
- Max. IR viewable length : 350m
- Day & Night (ICR), WDR (120dB)
- Auto tracking, Intelligent video analytics
- SD/SDHC/SDXC memory slot
- IP66, IK10
Part number:
XNP-6370RH
Price:
Video
| Imaging Device | 1/1.9" 2.42M CMOS |
| Effective Pixels | 1,952(H) x 1,241(V) approx , 2.42M pixels/ 1,937(H) x 1,097(V) approx, 2.12M pixels |
| Minimum Illumination | Color : 0.05Lux (1/30sec, F1.5) B/W : 0Lux (IR LED on) |
| Video Out | CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation |
Lens
| Focal Length (Zoom Ratio) | 6 ~ 222mm (37x) |
| Lens/Mount Type | DC auto iris/ Board-in type |
| Max. Aperture Ratio | F1.5(Wide) ~ F4.6(Tele) |
| Angular Field ofView | H : 59.3˚(Wide) ~ 1.9˚(Tele)/ V : 35.8˚(Wide) ~ 1.1˚(Tele) |
| Min. Object Distance | 1.5m (4.92ft) |
| Focus Control | AF / One-shot AF / Manual |
Operational
| Camera Title | Off / On (Displayed up to 60 characters per line) - W/W : English / Numeric / Special characters - Korea : English / Numeric / Special/ Korean characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR)/ Color/ B/W |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) |
| Digital Image Stabilization | Off / On (Built-in Gyro sensor) |
| Defog | Off / Auto / / Manual |
| Motion Detection | Off / On (4ea, Polygonal zones) |
| Privacy Masking | Off / On (16ea, Rectanglular zones) - Color : Grey / Green / Red / Blue / Black / White, - Zoom ratio option for mask mode |
| Gain Control | O / Low / Medium / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
| LDC | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Digital Zoom | 16x, area zoom funtion support digital zoom 2x |
| Flip / Mirror | Off / On, Hallway view : 90˚/270˚ |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Alarm Triggers Motion detection, Video & Audio analytics, Network disconnect |
| Alarm events | File upload Via FTP, E-Mail, Notification via e-mail, Local storage (SD / SDHC / SDXC) or NAS recording at event triggers, External output, DPTZ preset |
| Rotate Image | Flip : On/Off / Mirror : On/Off |
