SECO-LARM - MVE-AH1E1-01NQ - HDMI Extender over Single Cat5e/6

Product Overview

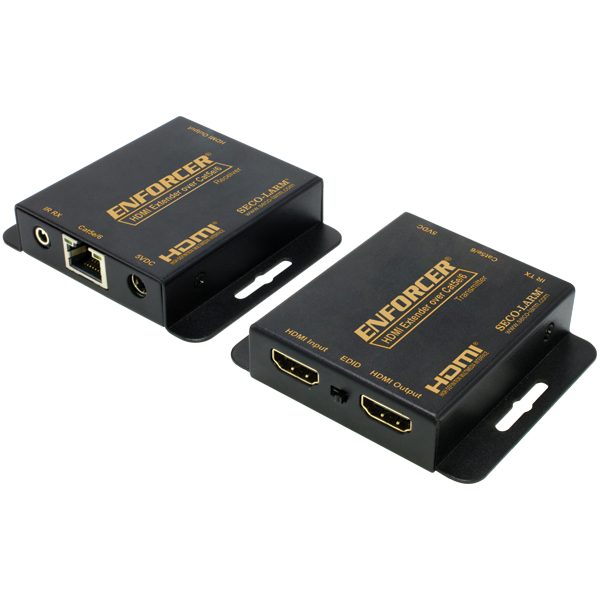

The SECO-LARM MVE-AH1E1-01NQ is an HDMI extender that transmits 1080p signals over a single Cat5e/6 cable up to 164 feet (50m) with zero signal loss, thanks to active signal amplification. The kit includes a transmitter, receiver, two 5VDC power supplies, and an IR pass-through for remote control extension. It also features an HDMI loop output for a local monitor, EDID management for display compatibility, HDCP 1.2 support, and plug-and-play operation with no configuration required.

Key Configuration

• Video input/output: HDMI Type A 19-pin female
• Maximum range: 164ft (50m) at 1080p over Cat5e/6
• Resolutions: 1080p, 1080i, 720p, 576p, 480p, 480i
• Video amplifier bandwidth: 4.95 Gbps
• IR pass-through: 30-60 kHz
• Power: 5VDC, 1A (two adapters included)

Key Features

The MVE-AH1E1-01NQ is a complete HDMI over Cat5e/6 extender kit including a transmitter, receiver, and two 5V power supplies. The transmitter features an HDMI loop output for a local monitor, while the receiver connects to the remote display. EDID management switch ensures display compatibility, and IR pass‑through allows remote control of the source from the display location.

Technical Context

The extender supports 1080p full resolution with Deep Color 24‑bit and a wide range of audio formats, including LPCM, Dolby‑AC3, DTS7.1, and DSD. Active integrated circuits amplify and clean the signal to prevent degradation over distance, with HDCP 1.2 compliance ensuring protected content playback.

Installation Notes

Each compact unit measures 79 × 17 × 67 mm and weighs 150g, operating from 0–40°C with 20–90% RH. Powered by two included 5VDC/1A adapters, it supports distances up to 164 feet (50m) at 1080p over Cat5e/6 with T568‑B wiring. ESD protection is rated at ±8kV air and ±4kV contact, with a plug‑and‑play setup requiring no configuration.
