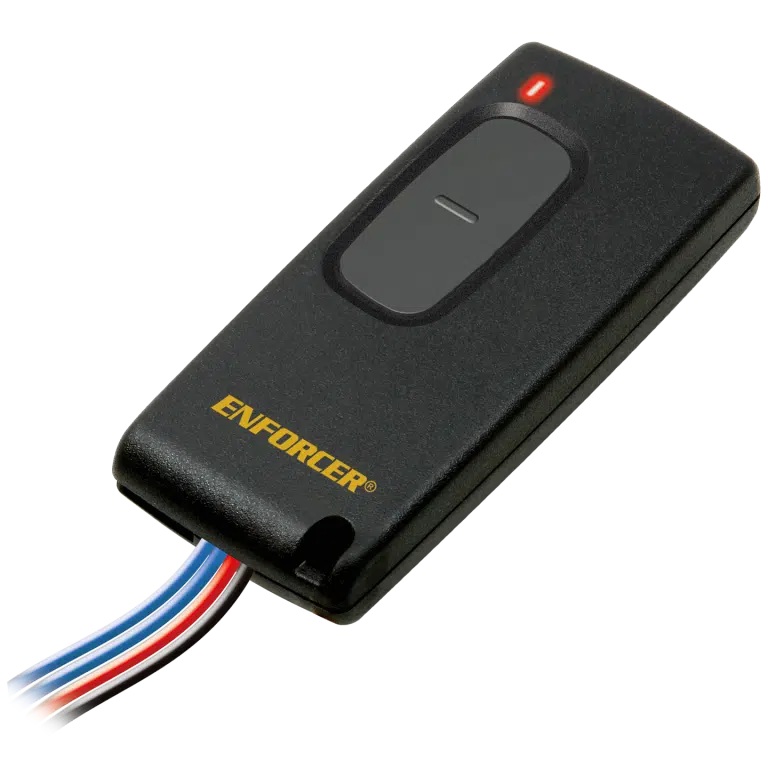

SECO-LARM - HL-951T1-SWQ - HL Series 1 Button Transmitter with Wires and DIP Coding
Part number:
HL-951T1-SWQ
Price:
The ENFORCER HL-Series RF transmitters and receivers offer significantly increased range with greatly increased immunity to interference, whether physical obstacles, temperature extremes, or other environmental factors. The wired transmitter allows you to easily make other devices wireless.
Features:
- Includes one 3VDC lithium battery (CR2032)
- May also be powered by an external 4.5~13 VDC external regulated adapter (not included)
- Frequency – 917MHz*
- Operating range up to 1,800ft (550m)†
- Over 2.028×1031 possible codes
- LED transmission and low-battery indicator
- Compatible with all SECO-LARM HL-series receivers of the same frequency
- Also available without logo – HL-951T1-SWUQ
- Patented
| Type | Wired RF transmitter |
| Wiring | Switch: Two 6″ N.O. blue wires Power: Two 6″ wires (red +, black –) |
| Power | Battery: 1x 3VDC button battery (CR-2032, included) External: 4.5~13VDC regulated adapter |
| Battery life | Up to 10 years |
| RF frequency | 917MHz† |
| Operating range | up to 11,800ft (550m)‡ |
| # of Buttons | 1 |
| # of Channels | 1 |
| # of Codes | Over 20,280,000,000,000,000,000,000,000,000,000 possible codes |
| Dimensions | 3-1/16″x1-5/16″x1/2″ (78x34x13 mm) |
