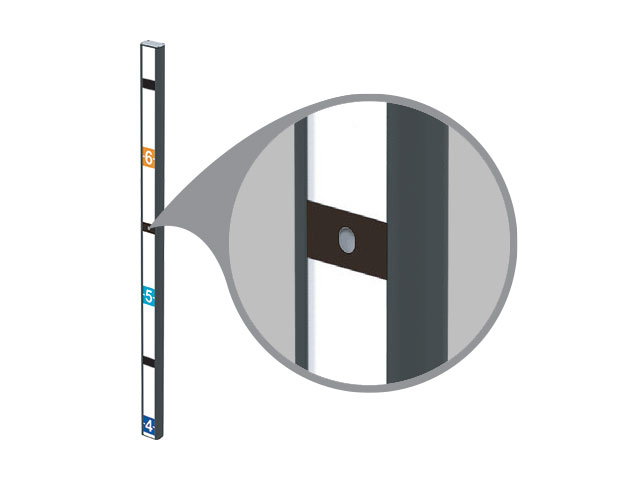

CCI2W37HS - 2MP Height-Strip IP Camera - IDIS
• 2MP (1920 x 1080) Resolution
• 1/2.8" CMOS Progressive Scan image sensor
• 3.7mm Fixed Pin-Hole Lens
• True day / night with IR cut filter
• Back Light Compensation (BLC)
• 3D Digital Noise Reduction (DNR)
• True Wide Dynamic Range (T-WDR)
• Multiple compression (H.264, MJPEG)
• Power over Ethernet (PoE) or 12-24VDC
• On-Screen Display (OSD)
• Built for covertly capturing facial images
• NDAA Compliant
| Camera | |
|---|---|
| Model | CCI2W37HS |
| Image Sensor | Sony IMX123 CMOS Progressive Sensor |
| Optical Format | 1/2.8" |
| Minimum Illumination | Color (Day Mode) 1.0 Lux B/W (Night Mode) 0.5 Lux |
| Full FOV Resolution | 1920 H x 1080 V |
| Scaling (See Scaling Resolutions Below) | Yes |
| Dynamic Range | 120dB (True WDR) |
| Frame Rates* Single Stream | Up to 30fps (2MP) |
| Lens | Fixed Iris 3.7mm, F2.5, IR Corrected |
| Programmability | Optics Pinhole Type Fixed-focal |
| S/N Ratio | More than 50dB |
| Noise Reduction | 3D Digital Noise Reduction |
| Electronic Shutter Speed | Auto / NTSC : 1/30sec ~ 1/8,000sec / PAL : 1/25sec ~ 1/8,000sec |
| Mirroring | Horizontal / Vertical |
| Backlight Compensation | Yes |
| White Balance Mode | ATW / Manual / 2800K / 4000K |
| Auto Gain Control | Off / Low / Middle / High |
| Scaling | 1920x1080, 1280x1024, 1280x720, 1024x768, 800x600, 800x480, 640x360 |
| Wide Dynamic Range | 120dB True WDR |
| Additional Settings | Sharpness, Contrast, Brightness |
| On-Screen Display (OSD) | Date / Time / Custom Text |
| Data Transmission | |
| Compression Type | H.264 (HP, MP, BP), Motion JPEG |
| Compression Level | Basic, Standard, High, Very High |
| Bit Rate Control | Constant Bitrate / Variable Bitrate |
| Network Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, BONJOUR, RTP/RTSP, SMTP, FTP, DHCP, NTP, DNS, DDNS, SNMP, UTP |
| Security | Multi-level user access with password protection, IP Filtering, HTTPS encrypted data transmission |
| Network Interface | 10/100Base-T Ethernet network interface, RJ45 |
| Multi-Streaming | Triple (1 x H.264, 1 x MJPEG, 1 x H.264/MJPEG) |
| Remote Access Clients | Up to 8 |
| Event Management | |
| Event Trigger | Motion Detection, Alarm in |
| Notifications | Email, SMTP, FTP |
| Compliance | |
| IP Camera Protocols | ONVIF Profile S conformant |
| Approvals | FCC, CE, RoHS |
| Environmental | |
| Operating Temperature | -4°F (-20°C) to + 158°F (70°C) |
| Humidity | 0% to 90% RH, non condensing |
| General Electrical | |
| Alarm Input/Output | 1 input / 1 output |
| Analog Video Output | 1 BNC |
| Power | 12-24V DC, PoE IEEE 802.3af (Class 1) |
| Power Consumption | 3W |
| Mechanical | |
| Dimensions | Unit 34.21" H (869mm) x 1.86" W (47.2mm) x 0.98" D (24.9mm) |
| Weight | Unit 1.76lbs (0.8kg) |
The CCI2W37HS is a 2MP (1920x1080) height-strip IP camera designed for applications requiring a tall, narrow field of view, such as monitoring narrow corridors or doorways. It features a Sony IMX123 1/2.8" CMOS sensor and a fixed 3.7mm pinhole-type lens with IR correction. It provides good low-light performance with a minimum illumination of 1.0 lux (color) / 0.5 lux (B/W) and features 120dB True WDR for handling high-contrast scenes. The camera uses H.264 and MJPEG compression and supports triple streaming. It is ONVIF Profile S conformant for interoperability. It includes one alarm I/O, one analog video output, and can be powered by 12-24V DC or PoE (IEEE 802.3af), consuming only 3W. It is built for extreme environments, operating within a wide temperature range of -20°C to 70°C (-4°F to 158°F) and up to 90% humidity.
