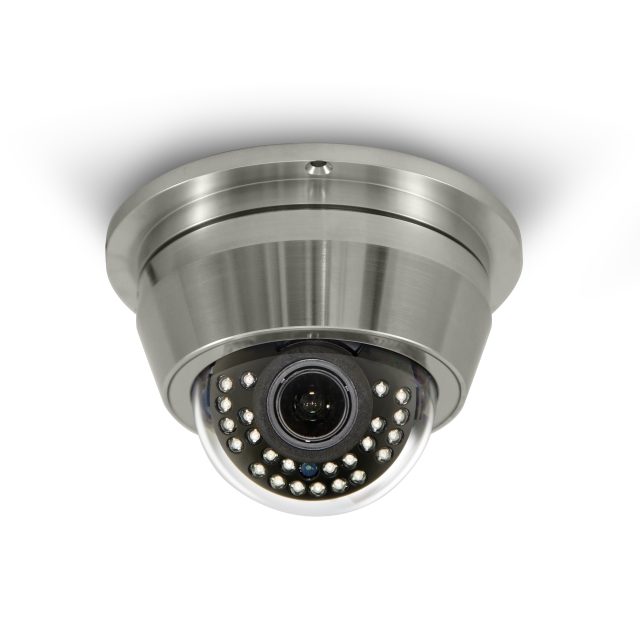

CDI2J12IFX - 2 MP IR Stainless Steel Dome Camera - IDIS
- • 2 megapixel resolution (1945×1097)
- • 2.8-12mm Motorized megapixel lens
- • 1/2.8″ Sony 2MP STARVIS image sensor
- • True Day/Night with Auto Day
- • 24 IR LEDs
- • IR Range ~40m
- • NDAA compliant
- • ONVIF protocol
- • True Wide Dynamic Range (WDR)
- • H.265, H.264, MJPEG
- • PoE or 12VDC
| Camera | |
|---|---|
| Model | CDI2J12IFX |
| Image Sensor | Sony 2MP STARVIS image sensor |
| Optical Format | 1/2.8" |
| Full FOV Resolution | 1945 H x 1109 V |
| Scaling (See Scaling Resolutions Below) | Yes |
| Frame Rates* Single Stream | Up to 30fps |
| Lens | Fixed Iris 2.8~12mm motorized MP lens |
| Programmability | Optics Motorized Vari-focal |
| S/N Ratio | More than 45dB |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/15,000), Suppress Rolling |
| Privacy Masking | 16 Zones |
| Mirroring/Pivot | Horizontal / Vertical / Pivot |
| Scaling | 1920x1080, 1280x960, 1280x720, 640x480, 640x360, 320x240 |
| Wide Dynamic Range | Real-WDR |
| Image Settings | Exposure, White Balance, Self-Adjusting Video Mode (Sharpness, Contrast, Colors, Brightness Control) |
| Intelligent Video | Video Motion Detection |
| On-Screen Display (OSD) | Date / Time / Custom Text |
| Data Transmission | |
| Compression Type | H.265, H.264, Motion JPEG (MJPEG) |
| Compression Level | Basic, Standard, High, Very High |
| Bit Rate Control | Constant Bitrate / Variable Bitrate |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Transmission Protocols | IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, UPnP, SNMPv2 |
| Network Interface | 10/100Base-T Ethernet network interface, RJ45 |
| Event Management | |
| Event Trigger | Motion Detection |
| Compliance | |
| Industry Standard | ONVIF Profile S conformant |
| Approval | FCC, CE, KC, NDAA Compliant |
| Mechanical | IP67 |
| Environmental | |
| Operating Temperature | 32°F (0°C) to + 122°F (50°C) |
| Humidity | 0% to 90% |
| Preservation Temperature | 14°F (-10°C) to + 140°F (60°C) |
| Electrical | |
| Alarm Input/Output | 1 TTL input / 1 open collector output |
| Power | PoE 12VDC |
| Power Consumption | 12VDC |
| IR Illuminator | |
| LEDs | 24pcs |
| Projection Distance | 131.2ft (40m) max |
| Mechanical | |
| Casing | Stainless Steel |
| Gimbal | 3-axis camera adjustment with -175°~ 175° pan, -0º~ 64° tilt, and -177°~ 177° rotation |
| Dimensions | Ø 3.15" (80mm) Dome x 5.51" (140mm) W x 3.86" (98mm) H |
| Weight | 3.75lbs (1.70kg) |
The CDI2J12IFX is a durable 2MP (1920x1080) IP dome camera designed for demanding and corrosive environments, featuring a stainless steel housing. It is equipped with a Sony 2MP STARVIS image sensor and a motorized varifocal lens (2.8-12mm), allowing for remote adjustment of zoom and focus. The camera provides key features such as Real-WDR (Wide Dynamic Range) and includes 24 IR LEDs with a maximum projection distance of 40 meters (131 ft) for low-light performance. It uses H.265, H.264, and MJPEG compression, supports ONVIF Profile S, and has a 3-axis gimbal for flexible installation alignment. It is built to withstand harsh conditions with an IP67 rating for dust and water resistance. The camera operates within a temperature range of 0°C to 50°C (32°F to 122°F) and up to 90% humidity. It can be powered by PoE or 12V DC.
