- • 2 Megapixel Resolution
- • TVI / AHD HD Analog
- • 1/2.8” Sony STARVIS™ CMOS Image Sensor
- • 22x Optical Zoom 16x Digital Zoom Lens
- • True Wide Dynamic Range (TWDR)
| Lens & Image | |
| Lens | Optical Zoom 22x, 4.7 - 103mm |
| Angle of View | Wide: 58.83°(H), 45.07° (V), 69.99° (D) Tele: 3.23°(H), 2.38° (V), 4.01° (D) |
| Image Sensor Type | 1/2.8” SONY STARVIS™ CMOS Sensor |
| Pixels | 1945(H)x1097(V) |
| Performance | |
| Min. Illumination | Color : 0.35Lux / BW : 0.013Lux |
| Scanning Mode | Progressive Scan |
| Noise Reduction | 3DNR |
| Digital Zoom | 16x |
| Exposure Control | Auto, Manual, Shutter Priority, Iris Priority |
| White Balance Control | Auto, Incandescent, Fluorescent, Outdoor, Manual |
| Image Effect | Flip |
| Flicker Free Mode | 50Hz, 60Hz |
| Shutter Speed | Auto(1/30,000~8sec), Manual |
| Wide Dynamic Range | True WDR 120db |
| Day and Night Mode | True D/N(Auto, Day, Night) |
| Video | |
| Resolution | HD-TVI: 1080p@30fps, 720p@30/60fps AHD: 1080P@30fps |
| Video Output | HD-TVI, AHD, CVBS |
| Pan/Tilt | |
| Pan Range | 360° Endless |
| Pan Speed | 380° / sec (Preset) |
| Tilt Range | -10° ~ 190° |
| Tilt Speed | 380° / sec (Preset) |
| Auto Calibration | 0.1° ~ 6° |
| Preset | 240 |
| Tour | 8 |
| Pattern | 8 |
| Home Function | Yes |
| PTZ Functions | |
| Privacy Mask Zone | 16 Programmable Zones |
| Alarm | 4 Input, 2 Output |
| Control | Coaxial Communication RS485, Baud Rate: 2400 ~ 38400 |
| Camera Address | 1 ~ 3999 |
| Physical & Environmental | |
| Cable Harness | BNC-HD / BNC-CVBS / Alarm in / Alarm out / Data / Power |
| External In / Out | --- |
| Ingress Protection | IP66 |
| Operating Temperature | -22°F ~ 122°F (-30°~+50ºC) |
| Operating Humidity | 0~90% RH(Non-Condensing) |
| Power Source | 24VAC |
| Power Consumption | 1.5A(22w)@24VAC |
| Dimension | 6.06”(Ø) x 5.90”(H)in |
| Net Weight | 3.53lbs |
| Approvals | |
| Approvals | FCC, CE, KC |
Name
Description
Size
Downloads
File
CDT2H22MT_SpecSheet.pdf
1.6mb

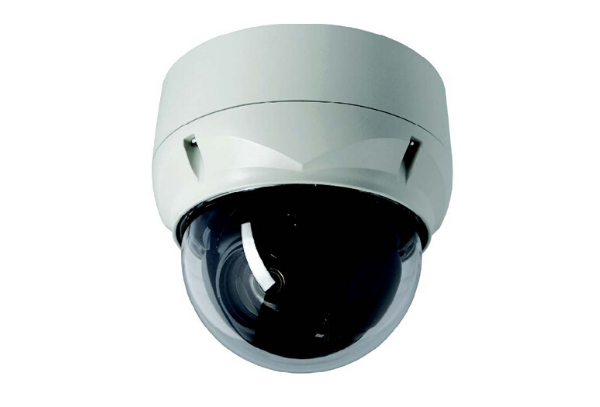

The CDT2H22MT is a 2MP analog PTZ camera with a 1/2.8” SONY STARVIS CMOS sensor. It features a 22x optical zoom lens with a 4.7-103mm focal range, offering a horizontal field of view from 58.83 degrees wide to 3.23 degrees telephoto. It provides video output via HD-TVI, AHD, and CVBS coaxial interfaces, supporting up to 1080p resolution at 30 frames per second.
Imaging features include True WDR with 120dB dynamic range, 3D noise reduction, and configurable exposure and white balance controls. The PTZ mechanism provides 360-degree endless pan and a 200-degree tilt range with 240 presets. The housing is rated IP66 for ingress protection. It operates in temperatures from -30°C to +50°C and is powered by 24VAC with a consumption of 22W.
