- • 4 Megapixel Resolution
- • 1/2.8” Sony STARVIS™ CMOS Image Sensor
- • 2.8-12mm Remote Focus and Zoom Lens
- • 28 IR LEDs with an 98 feet Range
- • Back Light Compensation (BLC)
- • Digital Noise Reduction (DNR)
- • True Wide Dynamic Range (TWDR)
- • Up-the-Coax (UTC)
- • 12VDC or 24VAC
| Power | |
|---|---|
| Source | 12VDC or 24VAC |
| Consumption | 7.2 watts (600mA) |
| Camera | |
| Auto Gain Control | 0-20 steps |
| Brightness | 0-20 steps |
| Day & Night | IR Cut Filter |
| Defog | Yes |
| Motion Detection | Yes |
| Digital Noise Reduction | 3D-NR |
| Wide Dynamic Range | WDR 120dB |
| Max Distance | UTP:985 FEET (300m) |
| Video | |
| Video Output | HD-TVI(1440P), HD-AHD(1440P) CVBS(960H 960x480)1Vp-p Composite Output(75 Ω /BNC) |
| Signal System | PAL/NTSC |
| Frame Rate | PAL:25fps ,NTSC:30fps |
| Up the Coax | Pelco C, UTC (H) |
| Sensor and General Information | |
| Image Sensor | 1/2.8” Sony STARVIS™ CMOS |
| Resolution (H x V) | 2608 x 1960 |
| Lens Focal Length | 2.8-12mm |
| Iris Control | DC Auto Iris |
| IR LED | 28 |
| IR Wavelength | 850nm |
| IR Range | 98’ |
| Minimum Illumination | Color DSS: 0.03 Lux BW DSS: 0 Lux (BW,IR LED On) |
| S/N Ratio | More than 52dB(AGC off) |
| Humidity | 90% RH Max |
| Approvals | FCC, CE |
Name
Description
Size
Downloads
File
Cameras_CDT4H12IFW_Spec_Sheet.pdf
1.8mb

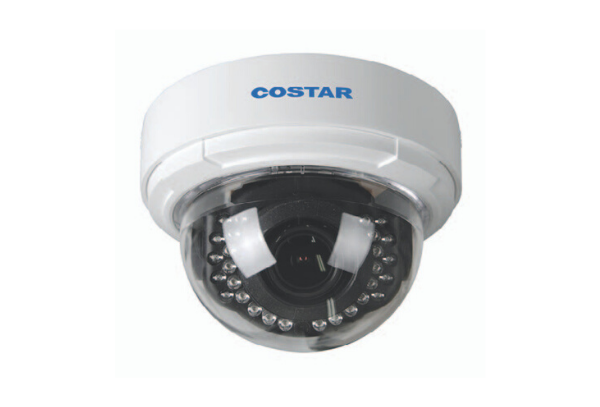

This is a 4-megapixel analog HD dome camera. It features a high-sensitivity 1/2.8-inch Sony STARVIS CMOS sensor and a manual 2.8mm to 12mm motorized vari-focal lens. It supports high-resolution analog HD formats (HD-TVI and HD-AHD at 1440p) and standard CVBS output. For night vision, it incorporates 28 infrared LEDs with an effective range of 30 meters (98 feet). It features 120 dB Wide Dynamic Range and 3D Digital Noise Reduction (3D-NR). It can be powered by 12V DC or 24V AC, with a power consumption of 7.2 watts.
