- • Dimension (mm) : Ø210.2 x 87.0(H)
- • Weight: 0.65kg (1.44lb)
| Specifications | |
|---|---|
| Material | EGI |
| Color(Brand/Etc.) | White |
| Dimension (mm) | [Max. Exposed Dimension] Ø210.2 x 78.1(H) (Ø8.27" x 3.07"(H)) [Installation Dimension] Ø191 x 63.9(H) (Ø7.52 x 2.52"(H)) |
| Weight | 0.65kg (1.44lb) |
| Relevant Model | DC-D4236X(-A), DC-D4236RX(-A) , DC-D4536RX, DC-4236WRX, DC-D4236HRX, DC-D4536HRX DC-D4831HRX, TC-D5531RX, TC-D5531RXP, TC-D5532RX, TC-D5531WRX, TC-D5531WRXP, TC-D5532WRX, TC-D4222RX, TC-D4221RXP, TC-D4222WRX, TC-D4221WRXP |
Name
Description
Size
Downloads
File
DA-FM1500_Datasheet.pdf
0.4mb

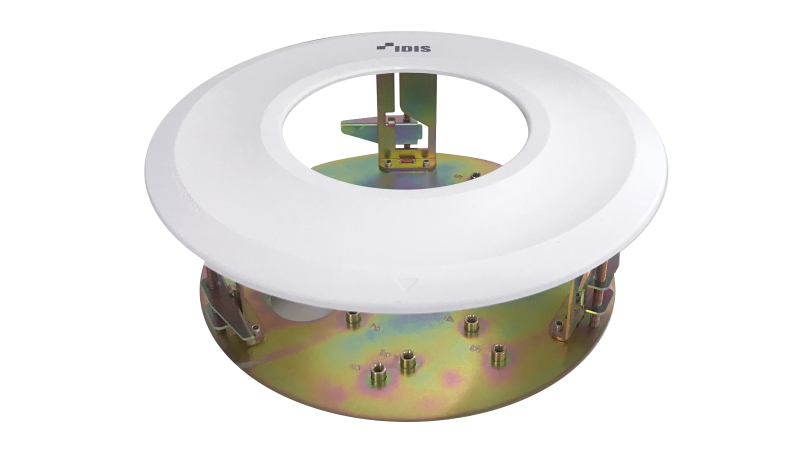

The DA-FM1500 is a flush mount designed for specific IDIS dome and turret camera models. Its primary function is to provide a recessed or low-profile mounting solution, allowing the camera to be installed nearly flush with the ceiling or wall surface for a discreet appearance. The mount is constructed from Electro-Galvanized Iron, a material known for its strength and corrosion resistance, with a weight of 0.65kg. It is finished in white. The mount has two key dimensions: a maximum exposed dimension of Ø210.2mm x 78.1mm (H) and a smaller installation dimension (for the recessed cut-out) of Ø191mm x 63.9mm (H).
