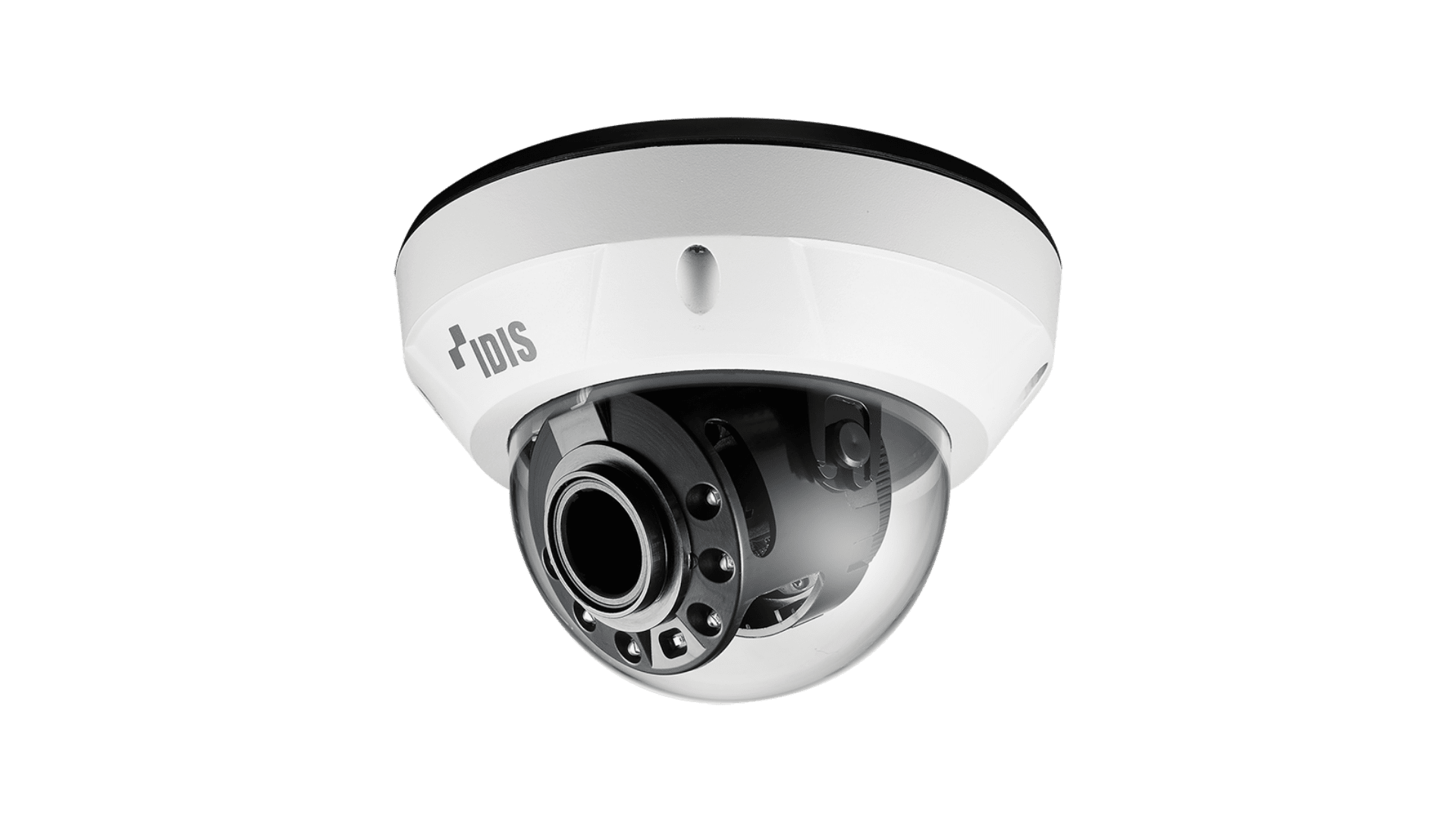

DC-D4236HRX-B - Full HD Vandal-Resistant IR Dome Camera with Heater - IDIS
- • Easy installation with DirectIP NVR
- • Full HD (1080p) resolution
- • Motorized Vari-focal lens (f=2.8 - 12mm)
- • Micro SD/SDHC/SDXC
- • Two-way audio
- • Alarm in / out
- • IK10 / IP67 supports
- • PoE (IEEE 802.3af Class 3), 12V DC
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • IR LED (Distance : 30 m / 98.4 ft)
- • 3-axis mechanical design for installation
- • Video Out: 1 CVBS
| Video | |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.8 ~ 12mm |
| Aperture | F1.4 ~ F2.8 |
| Iris Control | DC Iris |
| Angular Field of View | Wide : 98º(H), 51º(V), 116º(D) Tele : 33º(H), 19º(V), 38º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30m / 98.4 ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 CVBS |
| Pan/Tilt/Rotate | |
| Pan Range | -175° ~ 175° |
| Tilt Range | 0° ~ 67° |
| Rotate Range | -177° ~ 177° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0 |
| Max. Frame Rate | 30ips : 1920 x 1080 (WDR) |
| Supported Resolution | 1920x1080, 1280x720, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 1.04A, 12.5W PoE, IEEE 802.3af (Class 3), 10.3W |
| Approval | FCC, CE, UL, KC |
| Mechanical | |
| Dimensions | Ø155 x 105mm (Ø6.1" x 4.13") |
| Weight | 0.99kg (2.18lb) |
This is a Full HD vandal-resistant IR dome camera with a heater. It features a 2-megapixel resolution of 1920 by 1080 pixels. It is equipped with a motorized vari-focal lens adjustable from 2.8 to 12 millimeters. For low-light operation, it incorporates infrared illuminators effective up to 30 meters. The imaging includes True Wide Dynamic Range. It supports two-way audio and provides alarm input and output interfaces. The housing offers robust protection with IP67-rated resistance against dust and water and an IK10 rating for vandal resistance. A built-in heater ensures operation in cold environments. Local storage is available via a Micro SD card slot. The camera housing features a 3-axis mechanical design for flexible installation and can be powered via Power over Ethernet (IEEE 802.3af) or a 12V DC source. It also provides a CVBS video output for analog monitoring.
