- • Dimension: 100mm(L) x 110mm(W) x 44.14mm(H)
- • Weight : 0.3 kg(0.67 lb)
| Mechanical | |
|---|---|
| Material | EGI |
| Color | White |
| Dimensions | 110.0(L) x 100.0(W) x 44.1(H) (4.33"(L) x 3.94"(W) x 1.74"(H)) |
| Weight | 0.3kg (0.67lb) |
| Relevant Mount | DA-WM2050, DA-JB2000, DA-JB2300, DA-JB2400, DA-JB4150, DA-JB4600, DA-JB4700, DA-TM4200 |
| Relevant Model | - |
| Applicable Pole Diameter | Ø100 – Ø220 mm (3.94″ – 8.66″) |
Name
Description
Size
Downloads
File
DA-LM2000_Datasheet.pdf
0.7mb

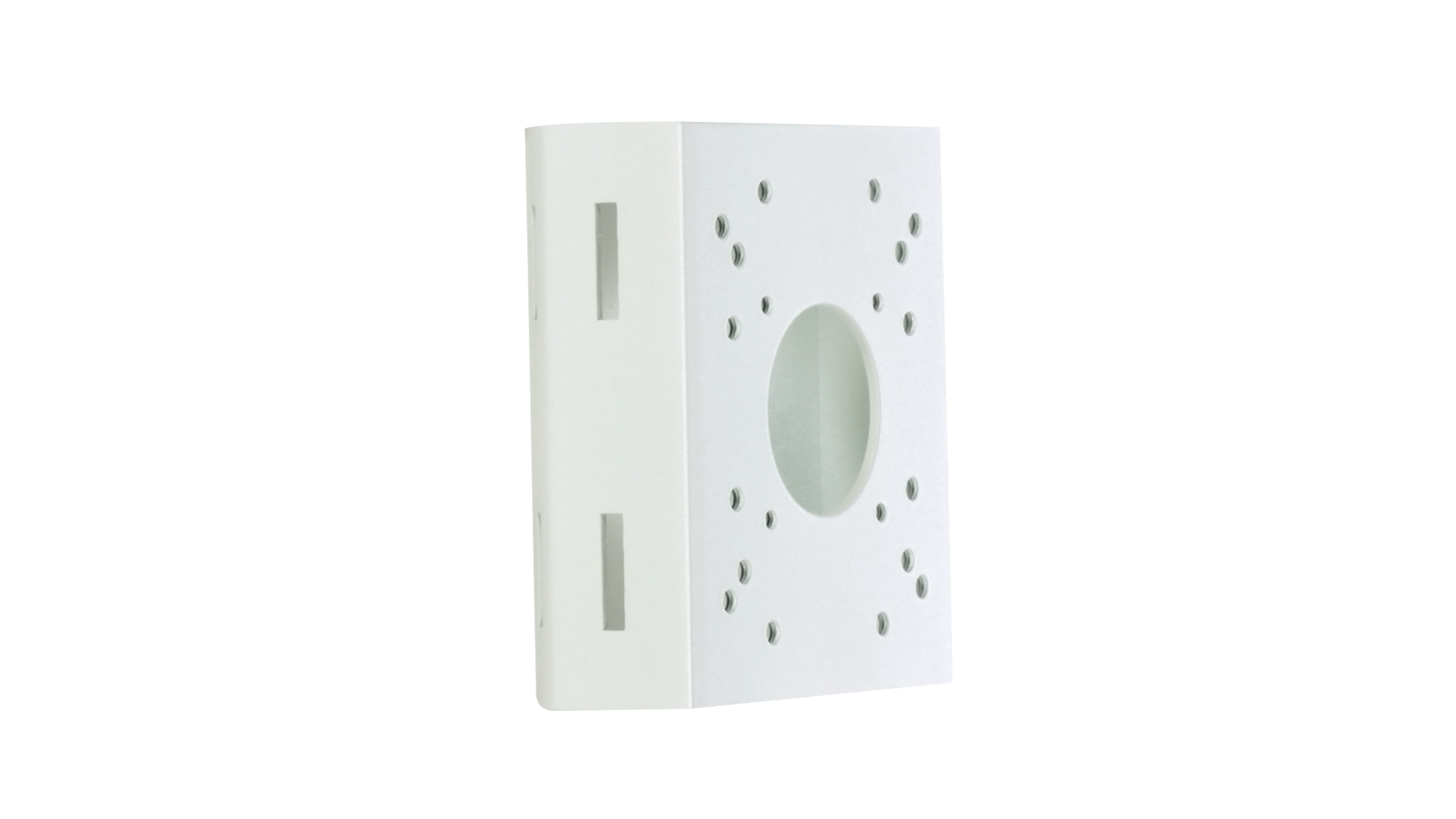

The DA-LM2000 is a universal pole mount designed to attach a compatible camera or junction box mounting system to a cylindrical pole. Its primary function is to provide a secure and adjustable mounting base for cameras on poles, lamp posts, or similar structures. The mount is constructed from Electro-Galvanized Iron, a material chosen for its strength and corrosion resistance for outdoor use. It is finished in white. Its compact base dimensions are 110.0mm (L) x 100.0mm (W) x 44.1mm (H) and it weighs 0.3kg.
