- • Dimension (mm): Ø162 x 60.5(H)
- • Weight: 810g
| Mechanical | |
|---|---|
| Material | Aluminum |
| Color | White |
| Dimensions | Ø162 x 60.5(H) (Ø6.38" x 2.38(H)) |
| Weight | 0.81kg (1.79lb) |
| Relevant Mount | DA-LM2000, DA-RM2000 |
| Relevant Model | DC-D4213WRX, DC-D4216WRX, DC-D4516WRX, DC-D4811WRX DC-D4532WERA DC-Y6516WRX, DC-Y6C16WRX TC-D4222WRX, TC-D4221WRXP |
Name
Description
Size
Downloads
File
DA-JB4600_Datasheet.pdf
0.4mb

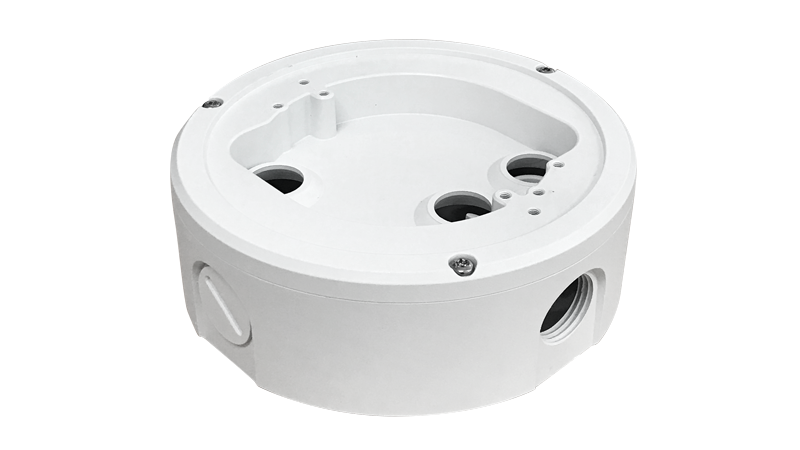

The DA-JB4600 is a large cylindrical junction box designed to house and protect the external connections for a range of IDIS dome and turret camera models. Its primary function is to provide a sealed, durable enclosure for managing the camera's power and network cables, protecting them from environmental exposure. The box is constructed from aluminum, offering durability and corrosion resistance for outdoor use, with a weight of 0.81kg. It is finished in white. Its cylindrical dimensions are 162mm in diameter and 60.5mm in height.
