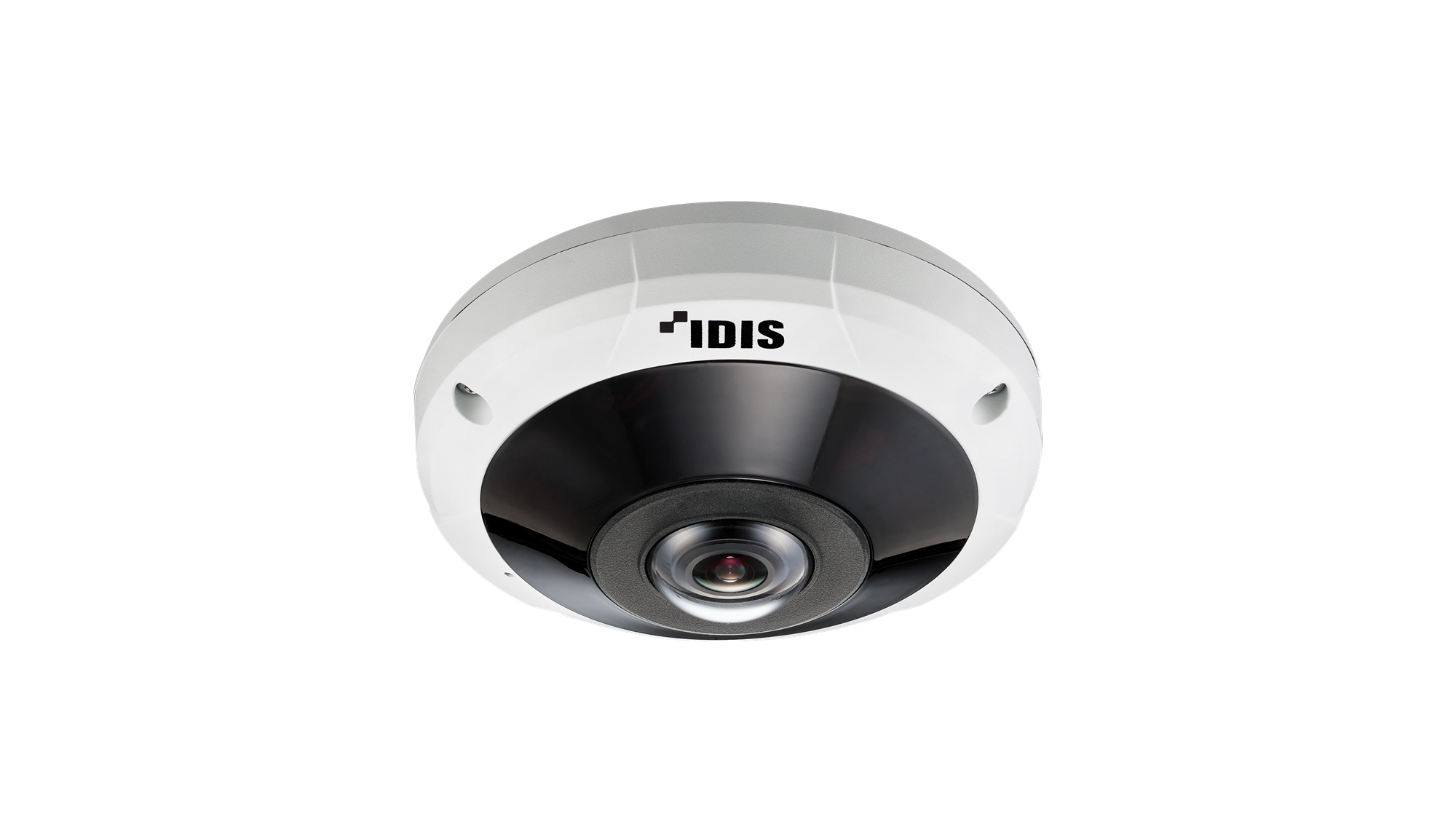

DC-Y6C16WRX-W - 12MP Vandal-Resistant IR Fisheye Camera - IDIS
- • Easy installation with DirectIP NVR
- • 12MP Sensor / 8.6MP (2944 x 2944) resolution
- • Fixed-focal lens (f=1.6mm)
- • Two-way audio
- • Alarm in / out
- • IK10 / IP67 supports
- • PoE (IEEE 802.3af Class 3), 12V DC
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • IR LED (Distance : 15m / 49.2ft)
- • Various viewing composition, 6 dewarping view modes
- • White Base
| Video | |
| Image Sensor | 1/2.3” CMOS |
| Max. Resolution | 2944 x 2944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 1.6mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 180º(H), 180º(V), 180º(D) |
| Min. Illumination | Color : 0.3 lux @ F2.0 B/W : 0 lux @ (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 15m / 49.2ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control), 3DNR Level, WDR Level |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone, Heatmap |
| Viewing Composition | 1O, 1P, 1P2R, 2P, 4R, 1O7R |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0 |
| Max. Frame Rate | 30ips : 2944 X 2944 15ips : 2944 x 2944 (WDR) |
| Supported Resolution | 2944x2944, 2208x2208, 2944x1472, 1472x1472, 768x768, 736x736, 768x384 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone, Heatmap |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1(Built In MIC)+1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE (IEEE 802.3af Class 3) |
| Power Consumption | 12V=, 0.94A, 11.3W PoE, IEEE 802.3af(Class 3), 10.6W |
| Approval | FCC, UL, CE, KC |
| Mechanical | |
| Dimensions | Ø135 x 56.9mm(Ø5.31" x 2.24") |
| Weight | 0.67kg (1.47lb) |
This is a 9 Megapixel (2944 x 2944) high-resolution true 360-degree outdoor fisheye camera, utilizing a 1/2.3-inch CMOS sensor and an ultra-wide 1.6mm F2.0 fixed lens to capture a complete 180-degree hemispherical field of view in all directions. Its advanced dewarping software offers multiple viewing compositions—such as 1 Panorama (1P), 4 Regions (4R), or 1 Panorama with 2 Regions (1P2R)—transforming the single fisheye stream into several distinct, usable video feeds for comprehensive area monitoring.
The camera delivers high-quality imaging with 120dB True Wide Dynamic Range and includes four IR LEDs for 15-meter low-light coverage. It compresses video using H.265 and H.264 at up to 30 fps and supports heatmap analytics and two-way audio. Built for outdoor use with IK10 vandal-resistance and IP67 weatherproof ratings, it operates from -30°C to 50°C and is powered by 12VDC or PoE (IEEE 802.3af), consuming up to 11.3 watts. It integrates via DirectIP 2.0 and supports local microSD card storage.
