DC-D4811WRX 3.3mm - 8MP Vandal-Resistant IR Dome Camera - IDIS
Part number:
Price:
- • 8MP(3840x2160) resolution
- • Fixed-focal lens (f=3.3mm)
- • Micro SD/SDHC/SDXC
- • Two-way audio
- • Alarm in / out
- • IK10 / IP67 supports
- • PoE (IEEE 802.3af Class 3)
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • IR LED (Distance : 20 m / 65.6 ft)
- • 3-axis mechanical design for installation
- • Easy installation with DirectIP NVR
| Video | |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 3840 x 2160 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 3.3mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 101.3º (H) 54.5º(V) 119.7º(D) |
| Min. Illumination | COLOR : 0.2 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30m / 98.4 ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Pan/Tilt/Rotate | |
| Pan Range | -170° ~ 170° |
| Tilt Range | -5° ~ 67.5° |
| Rotate Range | -109° ~ 109° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0 |
| Max. Frame Rate | 30ips : 3840 x 2160 15ips : 3840 x 2160(WDR) |
| Supported Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -20°C ~ +55°C (-4°F ~ +131°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af Class 3) |
| Power Consumption | PoE, (IEEE 802.3af Class 3), 9.0W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø120.6 x 92.9mm(Ø4.75” x 3.66”) |
| Weight | 0.48kg (1.06lb) |
Name
Description
Size
Downloads
File
IDIS_Product_Brochure _ DC-D4811WRX 3.3mm.pdf
0.2mb

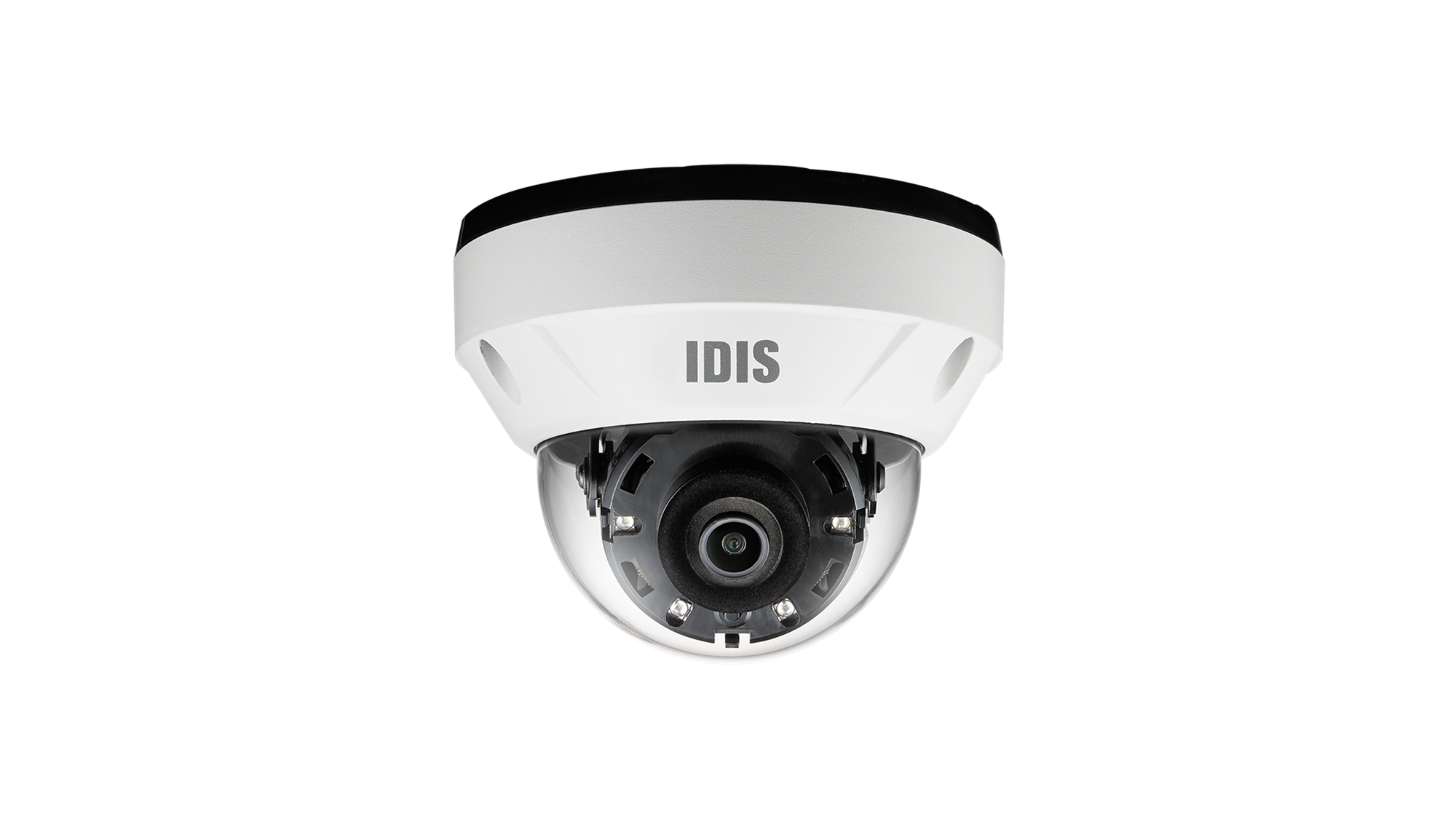

This is an 8MP vandal-resistant IR dome camera. It features a 1/2.8-inch CMOS sensor with a maximum resolution of 3840 by 2160 pixels (4K). Its fixed 3.3mm F2.0 lens provides a wide 101.3° horizontal field of view. For night vision, it incorporates four infrared LEDs effective up to 30 meters.
The imaging includes a high 120 dB True Wide Dynamic Range and De-fog technology. It supports H.265 and Intelligent Codec compression and quadruple video streaming. It provides two-way audio, 1 alarm I/O, and 1 audio I/O. The housing is robust with IK10 (vandalism) and IP67 (dust/water) ratings. It operates within a temperature range of -20°C to 55°C. It is powered via PoE (IEEE 802.3af), consuming a maximum of 9.0 watts.
