- • Dimension (mm): Ø128x67(H)
- • Weight: 0.18kg (0.39lb)
| Mechanical | |
|---|---|
| Material | Aluminum |
| Color | White |
| Dimensions | Ø128x67(H) (Ø5.1" x 2.6"(H)) |
| Weight | 0.18kg (0.39lb) |
| Relevant Mount | DA-CM2050, DA-CM2100, DA-WM2050 |
| Relevant Model | DC-D4223RX, DC-D4233RX, DC-D4236RX, DC-D4236X, DC-D4237RX, DC-D4536RX, DC-D4537RXA, DC-D4213WRX, DC-D4216WRX, DC-D4516WRX, DC-D4512WERA, DC-D4811WRX, TC-D5531RX, TC-D5531RXP, TC-D5532RX |
Name
Description
Size
Downloads
File
DA-MA4300_Datasheet.pdf
0.3mb

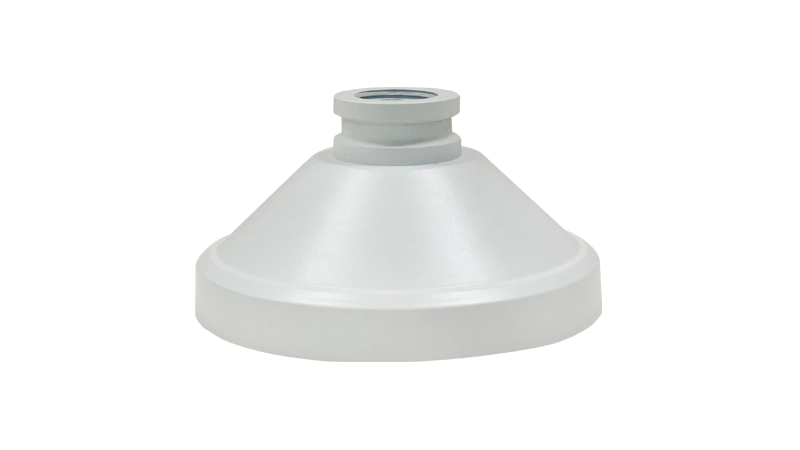

The DA-MA4300 is a mount adapter designed to interface between a wide range of IDIS dome and turret camera models and specific mounting brackets. Its primary function is to provide a standardized mechanical connection point, allowing these cameras to be installed on compatible ceiling or wall mounts. The adapter is constructed from aluminum and finished in white. It is a cylindrical component with dimensions of Ø128mm in diameter and 67mm in height, weighing 0.18kg.
