DC-D4537RXA - 5MP AI IR Dome Camera H.265 - IDIS
Part number:
Price:
- • 5MP (2592x1944) resolution
- • IDIS Deep-Learning Analytics (IDLA)
- • IR LED (Distance : 40m / 131.2 ft)
- • Micro SD/SDHC/SDXC
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • Easy installation with DirectIP NVR
- • Two-way audio
- • Alarm in / out
- • H.265 and Intelligent Codec
- • Remote Motorized Focus and Zoom
- • PoE (IEEE 802.3af Class 3)
- • Supports ONVIF
| Video | |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.7 ~ 13.5mm |
| Aperture | F1.4 ~ 3.2 |
| Iris Control | DC Iris |
| Angular Field of View | [4:3 mode]Wide : 101.2º(H) 72.5º(V) 137.4º(D) Tele : 30.4º(H) 22.8º(V) 38º(D) [16:9 mode]Wide : 101.2º(H) 53.3º(V) 121.6º(D) Tele : 30.4º(H) 17º(V) 34.7º(D) |
| Min. Illumination | COLOR : 0.15 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 40m / 131.2 ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Video Out | - |
| Pan/Tilt/Rotate | |
| Pan Range | -175° ~ 175° |
| Tilt Range | 0° ~ 64° |
| Rotate Range | -177° ~ 177° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592x1944, 1920x1440, 1280x960, 640x480 16:9 : 2592x1456, 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Signed firmware, Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1(Built In MIC)+1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af Class 3) |
| Power Consumption | 12V=, 1A, 12W PoE, IEEE 802.3af(Class 3), 9.5W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø122 x 103.4mm(Ø4.8” x 4.07”) |
| Weight | 0.35kg (0.77lb) |
Name
Description
Size
Downloads
File
DC-D4537RXA_Datasheet.pdf
1.9mb
File
DC-D4537(H)RXA_AnE_Spec_v1.0.docx
0.1mb

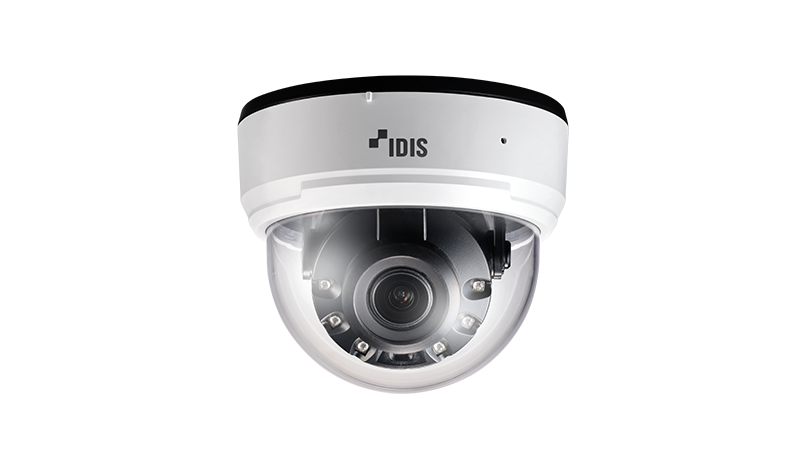

This is a 5MP AI IR dome camera. It features a 5-megapixel resolution of 2592 by 1944 pixels. It is equipped with a lens featuring remote motorized focus and zoom, adjustable from an unspecified focal range. For night vision, it incorporates infrared illuminators effective up to 40 meters. The imaging includes True Wide Dynamic Range and Intelligent Codec with H.265 compression. Its defining feature is IDIS Deep-Learning Analytics for advanced video intelligence. It supports two-way audio and provides alarm input and output interfaces. Local storage is available via a Micro SD card slot. The camera is powered via Power over Ethernet using the IEEE 802.3af standard.
