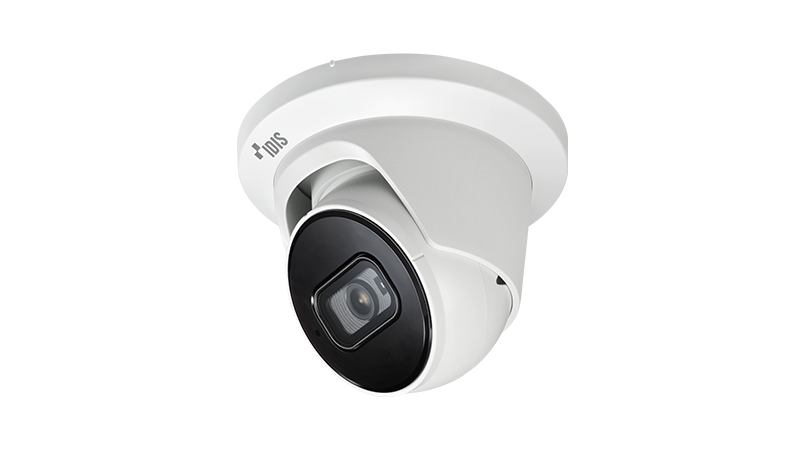

DC-D4512WERA 2.8mm - 5MP AI IR Turret Camera LightMaster NIR - IDIS
- • Easy installation with DirectIP NVR
- • H.265 and Intelligent Codec
- • PoE (IEEE 802.3af Class 3)
- • IR LED (Distance : 30 m / 98.4 ft)
- • IDIS Deep-Learning Analytics (IDLA)
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 2.8mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 4:3 mode : 104.8º(H) 76.9º(V) 130º(D) 16:9 mode : 104.8º(H) 57.2º(V) 123º(D) |
| Min. Illumination | COLOR : 0.13 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30m / 98.4 ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Object Metadata: Human, Vehicle, Face IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection ETC: Video Motion Detection, Active Tampering Alarm |
| Video Out | - |
| Pan/Tilt/Rotate | |
| Pan Range | -180° ~ 180° |
| Tilt Range | -5° ~ 65° |
| Rotate Range | -180° ~ 180° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | Opus, ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592x1944, 1920x1440, 1280x960x 640x480 16:9 : 2592x1456, 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1(Built In MIC)+1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af Class 3) |
| Power Consumption | PoE, IEEE 802.3af(Class 3), 7.6W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø121 x 78.7mm (Ø4.76” x 3.1”) |
| Weight | 605g (1.3lb) |
The device is a 5MP AI-powered panoramic network camera designed for 360-degree surveillance in a compact form factor. It features a 1/2.8-inch CMOS sensor with a maximum resolution of 2592 x 1944 pixels and is equipped with a fixed-focal 2.8mm lens providing an ultra-wide 104.8-degree horizontal field of view. For low-light operation, it includes IR LEDs with an effective range of up to 30 meters.
The functionality is its onboard AI processing, which generates object metadata for humans, vehicles, and faces and supports advanced IDLA analytics, including object detection, intrusion, loitering, line crossing, and face detection. The imaging includes 120dB True Wide Dynamic Range and defog capability. The camera uses modern H.265 and H.264 video compression and delivers a frame rate of up to 30 frames per second at full resolution.
It is housed in a robust IP67-rated and IK10-rated enclosure for weather and vandal resistance. The camera operates within a wide temperature range of -40°C to +55°C. It is powered exclusively via Power over Ethernet compliant with IEEE 802.3af, with a power consumption of 7.6 watts. The unit also supports two-way audio, edge storage via microSD card, and integration through ONVIF Profile S/T and DirectIP 2.0 protocols.
