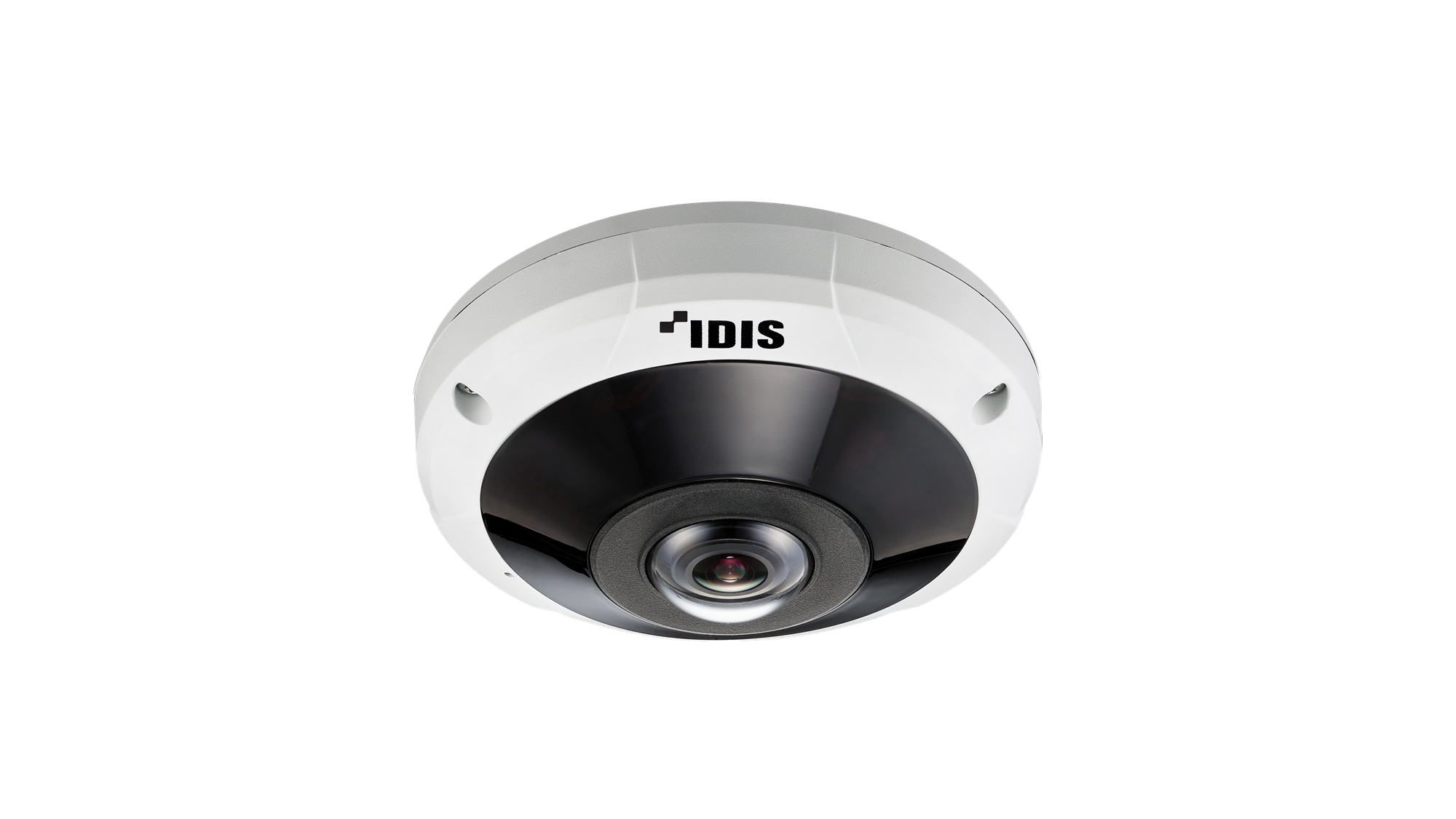

DC-Y6516WRX-W - 5MP Vandal-Resistant IR Fisheye Camera - IDIS
- • Easy installation with DirectIP NVR
- • 5MP (2560 x 2048) resolution
- • Fixed-focal lens (f=1.5mm)
- • Micro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
- • Two-way audio
- • Alarm in / out
- • IK10 / IP67 supports
- • PoE (IEEE 802.3af Class 3), 12V DC
- • Day and night (ICR)
- • True wide dynamic range (WDR)
- • IR LED (Distance : 20m / 65.6ft)
- • Various viewing composition, 6 dewarping view modes
- • White Base
| Video | |
| Image Sensor | 1/1.8 |
| Max. Resolution | 2560 x 2048 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | f=1.5mm |
| Aperture | F1.8 |
| Iris Control | Fixed Iris |
| Angular Field of View | 180°(H), 180°(V), 180°(D) |
| Pan/Tilt/Zoom | - |
| Min. Illumination | Color : 0.15 lux @ F1.8, B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120 dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 20m / 65.6ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Image Stabilizer | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone, Heatmap |
| Viewing Composition | 1O, 1P, 1P2R, 2P, 4R, 1O7R |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0 |
| Max. Frame Rate | 30ips : 2560 x 2048 (WDR) |
| Supports Resolution | 2560x2048, 1920x1536, 2560x1024, 1280x1024, 640x512, 640x256 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | 1(Built In MIC) 1 / 1 |
| Alarm In / Out | 1/1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F), Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE (IEEE 802.3af Class 3) |
| Power Consumption | 12V=, 0.92A, 11W, PoE (IEEE 802.3af Class 3), 10.3W |
| Approval | FCC, UL, CE, KC |
| Mechanical | |
| Dimensions (Ø x H) | Ø135 x 56.9mm(Ø5.31" x 2.24") |
| Weight | 0.67kg(1.47 lb) |
This is a 5 Megapixel (2560 x 2048) panoramic fisheye camera with a 1.5mm fixed-focal lens, designed to capture a 360-degree ceiling or wall view. Its primary feature is advanced dewarping software that provides six different viewing modes (such as panorama, quad-view, or virtual PTZ) from the single distorted fisheye image, enabling flexible monitoring of a wide area from one unit.
The camera delivers enhanced image quality with True Wide Dynamic Range for high-contrast scenes and includes Infrared LEDs for 20-meter low-light coverage. It is built for durability with IK10 vandal-resistance and IP67 weatherproof ratings. For connectivity, it supports Power over Ethernet (IEEE 802.3af) or 12V DC power, two-way audio, and local microSD card storage up to 256GB, and is designed for simple integration with DirectIP Network Video Recorders.
