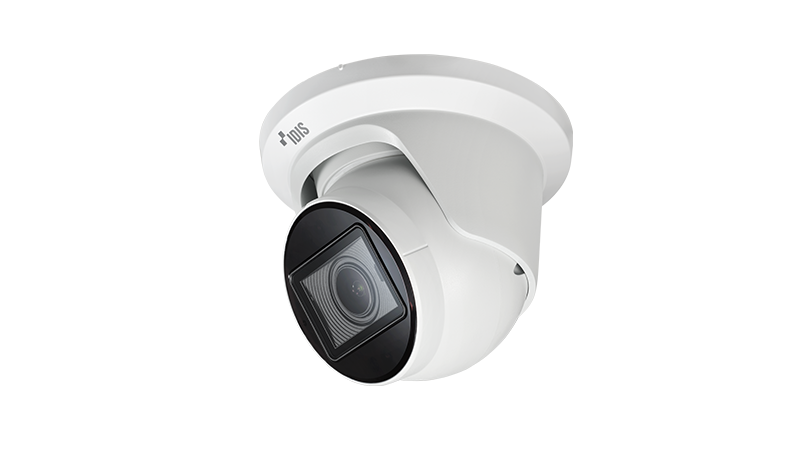

DC-D4532WERA - 5MP AI IR Turret Camera LightMaster NIR - IDIS
- • Easy installation with DirectIP NVR
- • H.265 and Intelligent Codec
- • Remote Motorized Focus and Zoom
- • PoE (IEEE 802.3af Class 3)
- • IR LED (Distance : 50 m / 164 ft)
- • IDIS Deep-Learning Analytics (IDLA)
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 3.2 ~ 10.5mm |
| Aperture | F1.6 ~ 3.3 |
| Iris Control | P-Iris |
| Angular Field of View | [4:3 mode] Wide : 98.9º(H) 71.1º(V) 133.8º(D) Tele : 28.2º(H) 21.2º(V) 35.3(D) [16:9 mode] Wide : 98.9º(H) 52.2º(V) 117.9º(D) Tele : 28.2º(H) 15.9º(V) 32.4º(D) |
| Min. Illumination | COLOR : 0.13 lux @ F1.6 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 50m / 164ft(6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Object Metadata: Human, Vehicle, Face IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection ETC: Video Motion Detection, Active Tampering Alarm |
| Video Out | - |
| Pan/Tilt/Rotate | |
| Pan Range | -180° ~ 180° |
| Tilt Range | -5° ~ 70° |
| Rotate Range | -180° ~ 180° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | Opus, ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592x1944, 1920x1440, 1280x960x 640x480 16:9 : 2592x1456, 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1(Built In MIC)+1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE, IEEE 802.3af(Class 3) |
| Power Consumption | 12V=, 1.1A, 13.2W PoE, IEEE 802.3af(Class 3), 11.5W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø135 x 98.5mm (Ø5.31” x 3.88”) |
| Weight | 830g (1.83lb) |
This is a 5MP AI-powered PTZ network camera designed for high-performance surveillance. It features a 1/2.8-inch CMOS sensor and a motorized vari-focal lens with a 3.2-10.5mm focal range and P-Iris control, providing a wide horizontal field of view from 98.9 degrees to 28.2 degrees. For low-light and long-range observation, it integrates six IR LEDs with an effective illumination range of 50 meters. A key capability is its onboard AI analytics, which processes object metadata for humans, vehicles, and faces and performs behavioral analysis like intrusion, loitering, and line crossing detection. The camera is built for durability with a vandal-proof (IK10) and weather-resistant (IP67) housing that includes a heater, allowing operation in temperatures from -40°C to +55°C. It is powered via 12VDC or PoE 802.3af, consumes up to 13.2 watts, and supports comprehensive network integration through ONVIF Profile S/T.
